NSK Surgic AP-2 Implant Motor with S-Max SG20 Handpiece (Y1500766)

Description

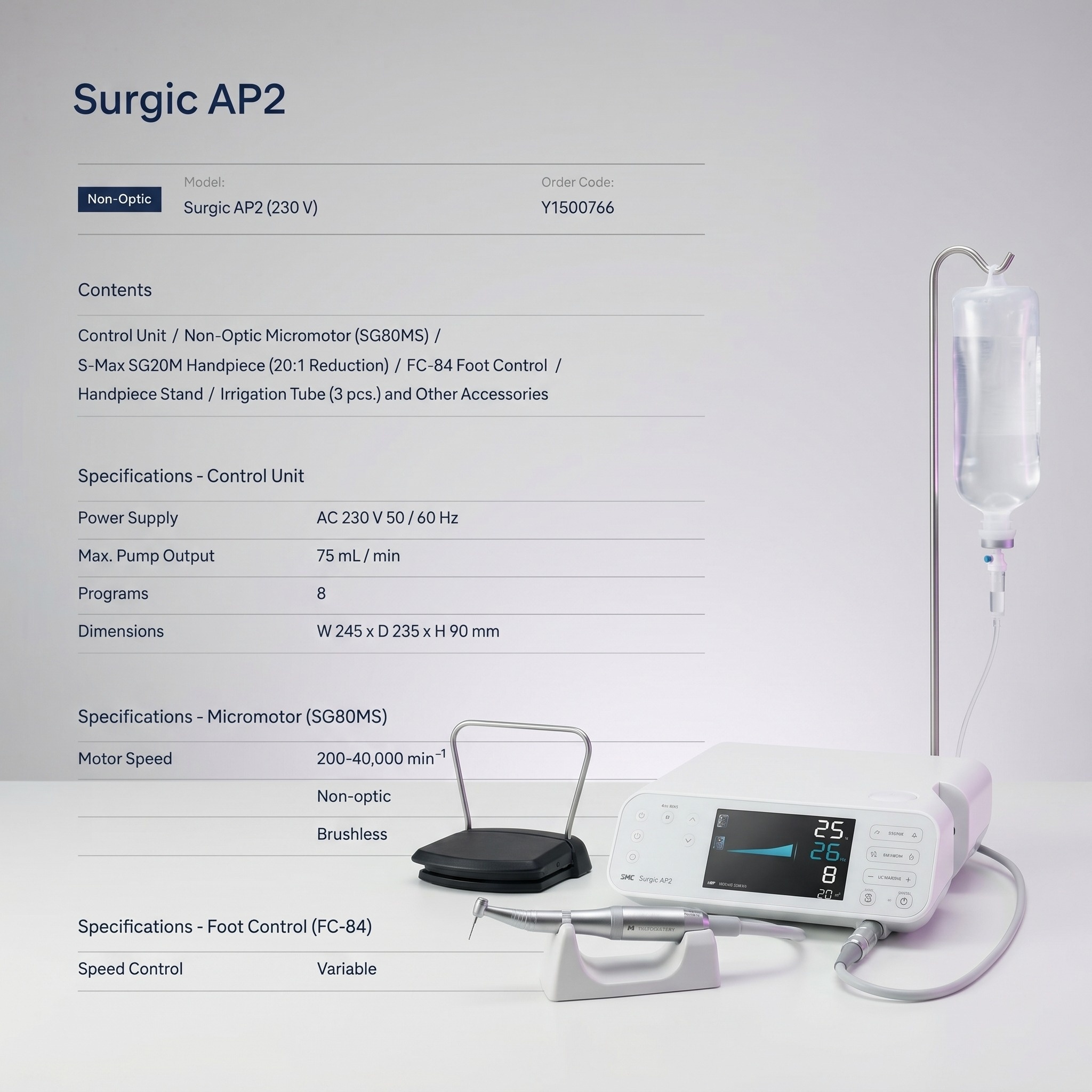

NSK Surgic AP-2 Implant Motor with S-Max SG20 Handpiece is an advanced surgical micromotor system designed for optimal performance in dental implant procedures. It features the SG80MS motor, which operates at speeds from 200 to 40,000 rpm, ensuring precise and efficient operation. The system’s ergonomic design includes a lightweight, compact handpiece, reducing practitioner strain and improving accessibility within the oral cavity. The large, high-contrast LCD panel offers excellent visibility and intuitive operation with adjustable brightness levels. The wireless foot control (FC-84) utilizes Bluetooth connectivity, allowing for flexible and convenient pedal positioning. This enhances control and focus during surgical procedures. The silent and smooth irrigation pump provides consistent coolant flow, ensuring patient comfort and procedural efficiency. Powered by an AC 230 V supply, the NSK Surgic AP-2 supports eight programmable settings, allowing customization to meet specific surgical needs

Key Features

• Enhanced Visibility: Large color LCD panel provides clear visibility with adjustable brightness levels.
• Improved Operability: Compact design reduces strain and discomfort during prolonged use.
• Increased Torque: Maximum torque boosted to 80 Ncm for precise and efficient performance.
• Wireless Foot Control: Bluetooth® connectivity allows for easy adjustment of pedal positioning.
• Silent Irrigation Pump: Consistent flow ensures smooth operation without disrupting procedures.
• User-Friendly Interface: Intuitive icons on the LCD panel facilitate smooth and effortless operation.
• Compact and Elegant Design: Seamlessly integrates into surgical settings while minimizing clutter.

Specifications

Micromotor (SG80MS):

• Rotation Speed Range: 200 – 40,000 rpm
• Input Voltage: DC 36 V
• Dimensions: Ø23.5 x L82.6 mm (without motor cord)
• Cord Length: 2 m
• Optic: None

Control Unit:

• Power Supply: AC 230 V, 50/60 Hz
• Maximum Pump Output: 75 mL/min
• Programs: 8
• Dimensions: W 245 x D 235 x H 90 mm

Foot Control (FC-84):

• Power Source: Three AA/Mignon/LR6 1.5 V alkaline batteries
• Dimensions: W 155 x D 155 x H 149 mm
• Wireless Connectivity: Bluetooth

Bluetooth Specifications:

• Frequency Band: 2.4 GHz ISM band (2.402 – 2.480 GHz)
• Transmitting Power: Class 3, 1 mW
• Modulation: GFSK
• Channels: 40 channel, 2 MHz spacing

Packaging

• 1 x Ac Power cord
• 1 x Control Unit
• 1 x Coolant Solution Hanger Post
• 1 x foot control
• 1 x Non-Optic Motor (With Motor Cord)
• 1 x Handpiece Stand
• 3 x AA Alkaline Battery
• 7 x Tube Holder
• 1 x Cleaning Wire
• 1 x Protection Plug
• 2 x O-Ring (Protection Plug)
• 2 x O-Ring (Motor)
• 1 x Non-Optic Handpiece
• 1 x E- Type Spray Nozzle
• 3 x Irrigation Tube

Directions for Use

Connecting AC Power Cord:

• Correctly align the AC power cord with the AC power cord connector socket at the back of the control unit.
• Insert the AC power cord firmly into the socket.

Installing Foot Control Batteries:

• Turn the battery cover counterclockwise to open it.
• Insert three AA batteries, ensuring correct polarity.
• Close the battery cover by turning it clockwise.

Mounting Coolant Solution Hanger Post:

• Attach the coolant solution hanger post onto the holder on the control unit.

Installing Irrigation Tube:

• Close the tube clamp between the irrigation tube needle and the irrigation pump.
• Open the tube cap to allow air into the bottle.
• Insert the irrigation tube needle into the bottle cap.
• Open the tube clamp.

Connecting Motor Cord:

• Align the marks on the motor cord and the control unit.
• Push the base of the motor cord plug into the socket until it clicks into place.
• To disconnect, pull back the lock joint and then pull further to remove the cord.

Connecting Handpiece:

• Push the handpiece straight onto the motor.

Irrigation Nozzle Attachment:

• Refer to the included handpiece operation manual for detailed installation instructions.

Attaching Tube Holder:

• Use the motor cord as a strain relief for the irrigation tube.
• Insert the motor cord first, then attach the irrigation tube.

System Checks Before Treatment:

• Ensure all components are securely connected.
• Verify the control unit main power switch is in the OFF position (O side), then connect to a commercial power socket.
• Turn the power switch to the ON position (I side).
• Run the motor for 1 minute, checking for proper function and absence of abnormal vibrations, noise, or overheating.
• Confirm compatibility of the internal spray nozzle/drill.
• Check the irrigation function and coolant solution flow level.
• If any abnormalities are detected, stop using the product and contact your authorized NSK dealer.

Compatibility Check of Internal Spray Nozzle/Drill:

• Attach a bottle of saline solution to the control unit.
• Connect the internal spray nozzle to the tip of the irrigation tube.
• Insert the internal spray nozzle into the drill from the back.
• Turn on the control unit and irrigate at maximum flow for about 5 seconds.
• Check for cleanliness of the saline solution, proper flow level, and absence of leaks.

Calibration:

• Attach the 20:1 reduction handpiece to the motor.
• Press and hold the CALIBRATION button for about 2 seconds to enter calibration mode.
• Perform speed calibration for low and high speeds as indicated, ensuring the display shows “PASS” or “SUCCESS” upon completion.

Starting Operation:

• Follow the instructions in “7.2 Programming System Operation” to set parameters like handpiece gear ratio, maximum rotation speed, direction of rotation, torque upper limit, and coolant solution flow level.
• Turn on the power switch of the control unit.
• Press the program button to select a program number.
• Confirm and adjust settings as necessary.
• Depress the foot control pedal to activate the motor.

Sleep Mode:

• Sleep mode saves foot control battery by activating after a set period of inactivity.
• To enable sleep mode, adjust settings in “7.1 Setting Key” and select a time interval.
• To wake the foot control from sleep mode, press and hold the speed control pedal until the normal screen appears.

Pairing with Foot Control:

• For first-time use or if unpaired, enter setting mode and select “BLE SET”.
• Open the battery cover of the foot control.
• Press the pairing button with a pointed tool until a beep sounds and “OK” is displayed.
• Ensure the battery icon is displayed, indicating successful pairing.
• Exit setting mode.

Preparation:

• Wear eye protection, a mask, and gloves.
• Turn off the control unit power switch.
• Remove the handpiece and motor cord from the control unit.
• Remove the bur/drill from the handpiece.

Additional Information

Country of Origin: Japan

Manufacturer:
Nakanishi Inc.
700 Shimohinata, Kanuma-shi, Tochigi 322-8666, Japan

Packer:
Nakanishi Inc.
700 Shimohinata, Kanuma-shi, Tochigi 322-8666, Japan

Imported By:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farrukhnagar, Gurugram, Haryana – 122506, India
Phone: +91 72899 99456
