Metagnostic Angle Assist

Description

Angle assist is a gadget that aids in the real-time acquisition and maintenance of desired working angles. It’s a gadget that may be put on any operating or analytical instrument and has a highly sensitive sensor. The Z axis is aligned to the shaft of the working instrument and displays real-time values of angles of the subject of interest along the X and Y axes.

The tool measures angles to two decimal places and is sensitive to 1/100th of a degree. In free-hand operation, it helps to stabilize the instrument while maintaining and monitoring the desired operating angles. It can also be used as an analytical tool to measure any angle in and out of the facial geometric complex.

Indications of usage:

• Crown Cutting
• Internal Precision Attachments
• Jaw Relations(JR)
• Implants
• Reconstructive Surgeries
• Cosmetic Procedures
• Radiography
• Patient Demonstration
• Deep Tissue Procedures
• Orthodontics


Advantages:

• Improved patient compliance and trust
• With improved angulation control, finer detailed modifications could be made, bringing treatment quality to the next level.
• Eliminates the Estimate-Assure dilemma
• Better prognosis and a more favourable outlook
• Minimal mechanical reliance because no 3D printed templates or specific armamentarium is required.
• Increased surgical predictability because the sensor continuously analyses angulation.

Key Features

• Transform physical data to digital data
• First ever ground breaking patented technology for dentists
• Splash/spill resistant sensor
• Better knowledge control and manoeuvrability
• Zero discrepancy microcontroller, zero lag circuit,zero distortion display, zero fatigue
• Free hand surgeries with accuracy over working angles upto 1/100th of a degree

Specifications

Sensor:

• Gyroscopic technology
• 128 bit micro controller
• Process 1000 commands per sec
• 130 nano seconds data command vision / data drive time
• Water resistant acrylic casing with reset button
• Low distortion circuit
• Inert to magnetic or electric fields, or dental X-rays
• Stainless steel mount with adjustable gauge and key for seamless loading on instrument
• Sensitive to 1/100th of a degree, 0 discrepancy

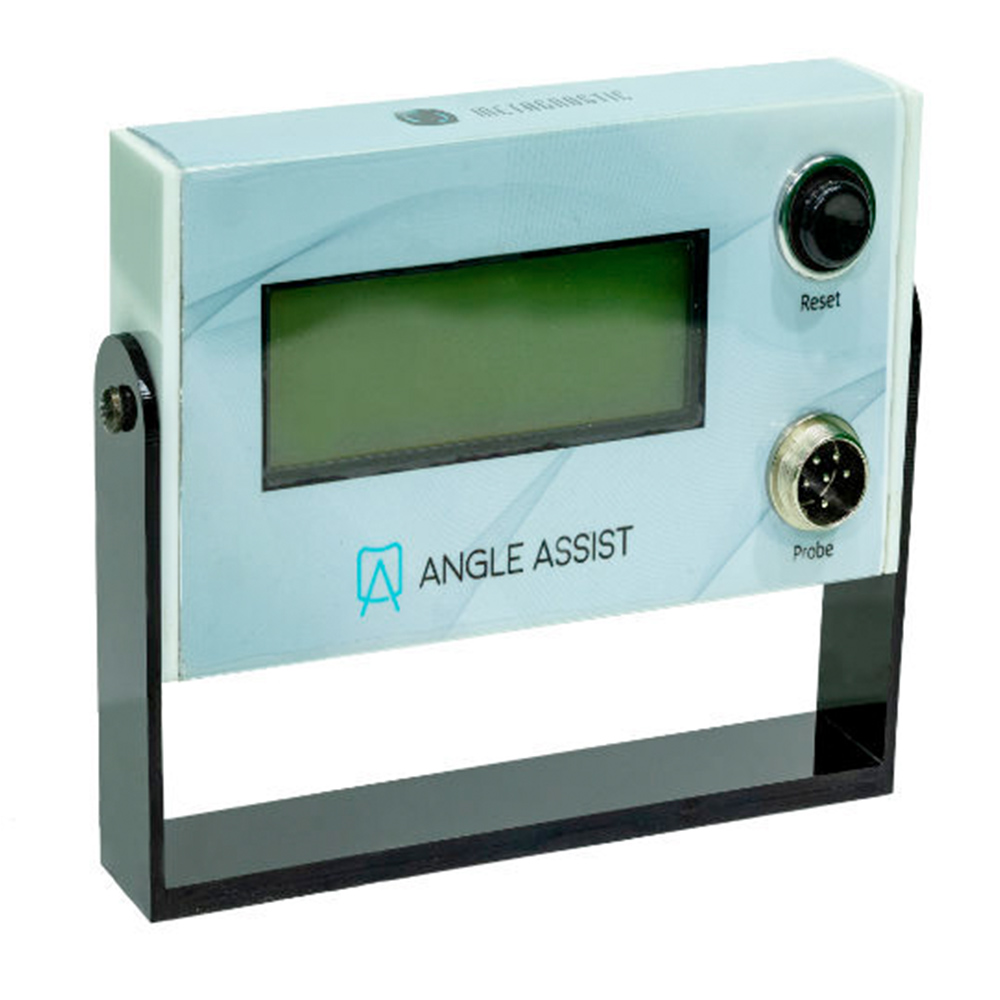

Main Box:

• Liquid carbon display
• Push to reset button
• Cord plug in socket
• 5v dc Power socket for a secure positioning on a dental chair

Cord:

• Power adapter 5V
• 6 pin relay cord
• 3.5 mm high duty cable
• 1.5 m length

Packaging

• 1 xSensor
• 1 xMain box
• 1 xCord
• 1 xInstruction manual

Directions for Use

• Connect the sensor cord to the socket.
• Install the sensor on the instrument of your choosing.
• Push the Reset button after aligning the working end with a specified reference angle (horizontal or vertical).
• In both the X and Y axes, the sensor is now calibrated to the reference as ZERO.
• Once the sensor has been calibrated with a known reference angle, tilt the sensor along the desired axis to create acceptable working angles, and then press the Reset button to establish these angles as “Zero reference values.”
• Now you’re ready to go. Just remember to keep the reference value at zero throughout the procedure. Recalibrate as needed, following the same methods.
• Reset the sensor to the subject’s vertical or horizontal axis, and then align the working end of the instrument to the subject’s tilt to determine its angulations along the axis of interest.

Warranty & Service

• Manufacturer/Importer warranty of lifetime is applicable for this product
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
