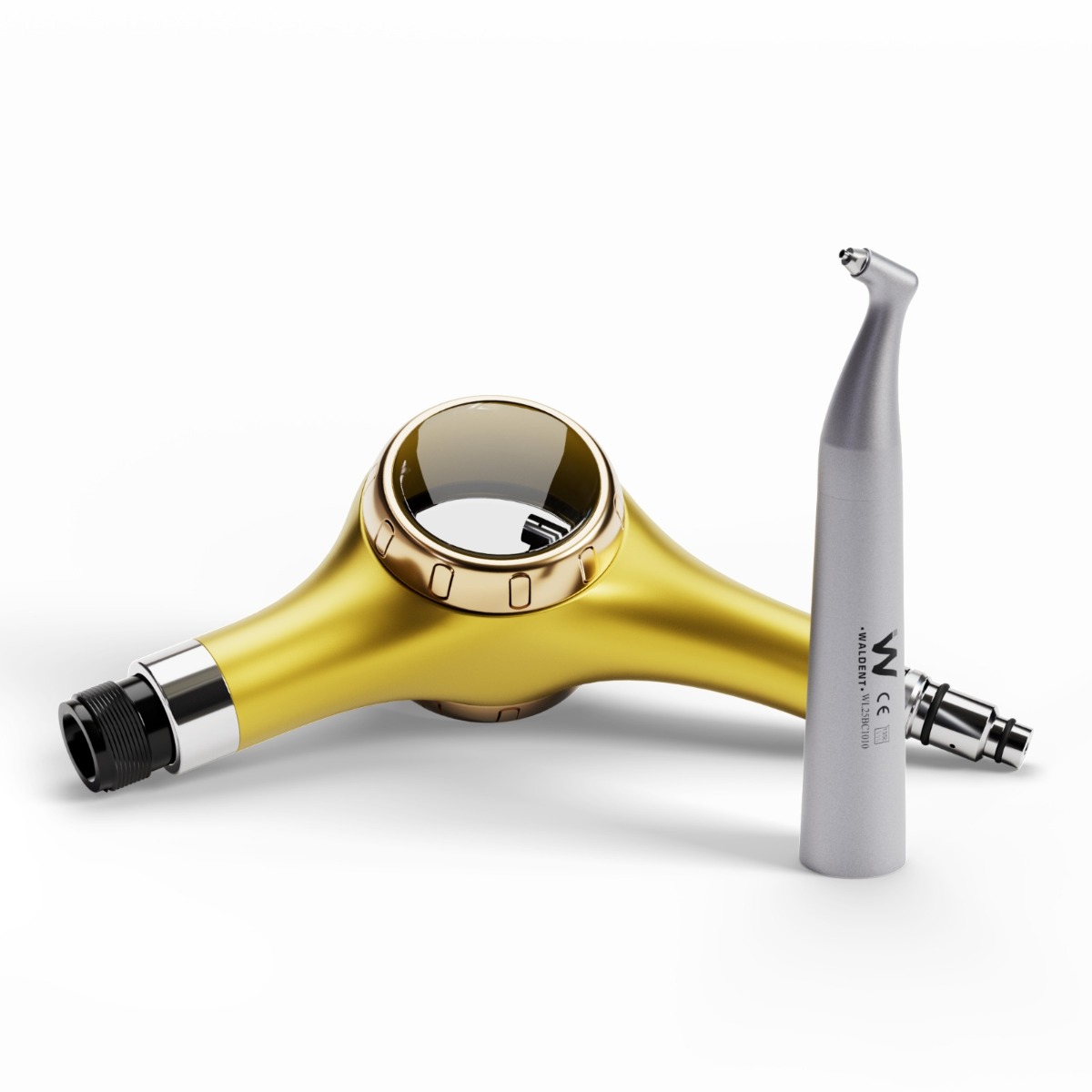

Waldent AeroShine Air Polisher

Description

The Waldent Dental Air Polisher is a cutting-edge dental device designed for effective supragingival biofilm removal and tooth polishing. An air polisher dental system has a sharp nozzle that can propel the water-compressed air-powder particles at high pressure towards the stains. Due to high pressure, all the stains and food debris leave the teeth, and the teeth become cleaner. It is much more effective than other teeth polishing techniques, and it is the most recommended dental polishing technique for sensitive or weak teeth because no hard rubbing is involved – only a pressurized airflow does the job.The best thing about air polishers is that they do the cleaning well even within tight spaces between teeth, and they can easily remove stains from the backside and frontside of the teeth.If you have stubborn stains due to excessive usage of tobacco, coffee, and red wine or your teeth have become too sensitive to have painful scaling procedures, a dental air polisher is the best solution for your teeth because it is probably the best teeth cleaning procedure that won’t do any harm to the sensitive teeth.The gentle yet powerful pressurized airflow can adeptly clean both the front and back surfaces of teeth, providing a comprehensive solution for maintaining oral hygiene.

Copyfish



























OCR Result(Auto-Detect)

N/A

Translated(English)

N/A



Redo OCR Recapture Re-Translate Copy to clipboard





Key Features

Supragingival Biofilm Removal: Enables comprehensive biofilm removal on tooth surfaces, ensuring thorough cleaning.
Anti-Suction Design: Prevents the backflow of powder and moisture, reducing the risk of cross-infection and contamination at the dental unit interface.
Tail Cord Connector: Removable design for easy powder clearing, enhancing convenience in maintenance.
Compatibility with Coupling Types: Supports various coupling types, including KAVO LED, NSK LED, and NSK QD, providing versatility in dental applications.
Lightweight Construction: Weighs approximately 0.150kg, ensuring ease of use for practitioners during dental procedures.
Multiple Connectors: Equipped with five different connectors, enhancing compatibility with diverse dental equipment setups.
Precise Working Pressure Parameters: Specific input water and air pressure ranges (0.7bar to 2.2bar for water, 3.5bar to 4.5bar for air) for optimal performance.
Continuous Intermittent Operation: Offers flexibility in working modes, allowing for continuous or intermittent operation based on procedural requirements.
Temperature and Humidity Control: Operates within specified environmental conditions (10°C-40°C temperature, 30%-75% relative humidity) for consistent performance.
Precautionary Measures: Explicit precautions for patients with specific medical conditions, ensuring safe usage in diverse clinical scenarios.
Efficient Powder Loading: Easy and efficient powder loading process, with guidelines to prevent overloading.
User-Friendly Operation: Clear instructions for optimal air polishing techniques, nozzle handling, and operational precautions.
Maintenance Guidelines: Detailed instructions for routine maintenance, including powder clearing, cleaning, and disinfection.
Sterilization Compatibility: Designed for steam sterilization of handpiece and spray head, ensuring proper hygiene and infection control.
Packaging for Sterility: Recommends specific packaging materials and procedures to maintain sterility during storage.

Specifications

Adapter Types:

1S09168 Type 2 (M4)
1S09168 Type 2 (B2)
KAVO LED Coupling
NSK LED Coupling
NSK QD Coupling

Working Pressure:

Input Water Pressure: 0.7bar to 2.2bar (70-220Kpa)
Input Air Pressure: 3.5bar to 4.5bar (350-450)

Working Mode:

Continuous/Intermittent Operation

Weight:

About 0.150kg

Connectors:

5 Different Connectors

Operation Environment:

Environment Temperature: 10°C-40°C
Relative Humidity: 30%-75%
Atmospheric Pressure: 50kPa-106kPa

Precautions:

Forbidden for hemophilia patients and those with heart pacemakers.
Caution for doctors with heart pacemakers.
Caution for heart disease patients, pregnant women, and children.
Forbidden for patients with respiratory diseases like asthma and chronic bronchitis.

These specifications highlight the device’s dimensions, adapter compatibility, working pressures, weight, connectors, operation environment, and crucial precautions for safe and effective use in dental applications.

Packaging

• 1 x Main Unit
• 1 x Handpiece
• 1 x Spray-Head
• 1 x Brush
• 2 x Needles Short & long
• 1 x Wrench
• 1 x User Manual

Directions for Use

Installation:

• Set up external dental devices, including the water supply and air supply systems.
• Ensure the water pressure is between 0.7bar to 2.2bar and adjust the air supply pressure to 3.5bar to 4.5bar.
• Connect the Dental Air Polisher securely to the handpiece pipeline.

Powder Loading:

• After connecting the Dental Air Polisher, unscrew the powder storage chamber cover.
• Add the recommended amount of powder into the chamber.
• Clear any powder residues at the thread position and tighten the cover.

Product Operation:

• Before treating the patient, spray the oral cavity for 1-3 seconds to ensure even air and water spray.
• Hold the handpiece in a pen-holding position.
• Maintain a distance of 3-5mm between the spray head air outlet and the tooth surface during air polishing.
• Follow recommended angles (30-60 degrees) for air polishing direction.

Maintenance:

• Clear powder residues regularly.
• Open the powder storage chamber cover to clear the remaining powder.
• Blow off powder in the chamber with air.
• Wipe off powder residues on the device’s surface with alcohol cotton or a dry towel.

Cleaning and Disinfection:

• Remove the handpiece from the Dental Air Polisher.
• Scrub the handpiece and spray head with a soft brush and rinse with pure water.
• Use a CE-certified detergent for cleaning.
• Follow specific procedures for automatic cleaning and avoid ultrasonic cleaning.

Sterilization:

• Sterilize only the handpiece and spray head using steam sterilization procedures.
• Ensure the sterilization temperature does not exceed 138°C.

Usage Precautions:

• Adhere to precautions regarding patient conditions, such as hemophilia, heart pacemakers, and respiratory diseases.
• Regularly check the handpiece for cracks or deformities.

Copyfish



























OCR Result(Auto-Detect)

N/A

Translated(English)

N/A



Redo OCR Recapture Re-Translate Copy to clipboard





Additional Information

Country of Origin: PRC

Manufacturer:
Foshan Cicada Dental Instrument Co., Ltd.
B5-2F, Guangdong New Light Source Industrial Base,
South of Luocun Avenue, Nanhai,
Foshan, Guangdong, PRC

Packer:
Foshan Cicada Dental Instrument Co., Ltd.
B5-2F, Guangdong New Light Source Industrial Base,
South of Luocun Avenue, Nanhai,
Foshan, Guangdong, PRC

Marketed & Imported By:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farrukhnagar, Gurugram, Haryana – 122506, India
Phone: +91 72899 99456
