MCTBIO Magnetic Sinus Lateral Approach Kit (MLA-01)

Description

MCTBIO Magnetic Sinus Lateral Approach Kit (MLA-01)

The MCTBIO Magnetic Sinus Lateral Approach Kit (MLA-01) is a revolutionary toolset meticulously designed for secure and effective sinus lifts through a lateral approach in implant dentistry. This comprehensive kit minimizes procedural risks while ensuring optimal membrane elevation. Its standout feature is the patented Magnetic Intelligence system, incorporating two Magnetic Sinus Artificial Intelligence (MASAI) drills. These advanced drills guarantee clean and precise drilling into the maxillary bone without compromising the sinus membrane.

The MASAI drill’s unique magnetic safety system ensures a safe cutoff by separating the bit through magnetic forces, preventing potential damage to the sinus membrane. The diamond MASAI drill’s grooved blade enables excellent cutting while safeguarding the membrane from harm. Importantly, the MASAI drill features special magnets that automatically disengage once the drill passes the bone, preventing further rotation.

The Magnetic Sinus Lateral Approach Kit by MCTBIO stands as a pinnacle of innovation, offering dental professionals a reliable, efficient, and safe solution for lateral approach sinus lifts, ultimately contributing to successful implant procedures and optimal patient outcomes.

Key Features

• Magnetic Intelligence Drills: Featuring patented Magnetic Intelligence drills, the kit ensures secure and precise drilling into the maxillary bone without compromising the sinus membrane.
• MASAI System: The kit incorporates the Magnetic Sinus Artificial Intelligence (MASAI) system, offering advanced technology for clean and deep drilling into the maxillary bone while preventing damage to the surrounding sinus membranes.
• Safety Cutoff Mechanism: The MASAI drills are equipped with a unique magnetic safety system that executes a safe cutoff by separating the bit via magnetic forces, reducing the risk of sinus membrane damage.
• Grooved Blade Design: The diamond MASAI drill’s grooved blade enhances cutting efficiency while preventing damage to the sinus membrane, ensuring a safe and controlled drilling process.
• Rim for Sinus Penetration Prevention: The MASAI drill features a rim designed to prevent sinus penetration after the bone has been punctured, adding an extra layer of safety to the procedure.
• Automatic Magnet Disengagement: The MASAI drill’s special magnets automatically disengage once the drill passes through the bone, ceasing rotation and minimizing the risk of over-penetration.
• Effective Sinus Lifts: Specifically designed for the lateral approach, this kit ensures effective and safe elevation of the sinus membrane, reducing the risk of complications associated with sinus lifts.
• Optimal Membrane Protection: The kit’s features and design prioritize the protection of the sinus membrane, allowing for safe and controlled procedures with minimal risk.
• Innovative Technology: Representing a pinnacle of innovation, the Magnetic Sinus Lateral Approach Kit by MCTBIO introduces cutting-edge technology to enhance precision, safety, and overall success in sinus lift procedures.

Specifications

• Diamond Drill Diameter: ∅3
• Window Trephine/ Magnetic Drill Diameter: ∅6.5
• Window Trephine/ Magnetic Drill Length: 1mm, 2mm

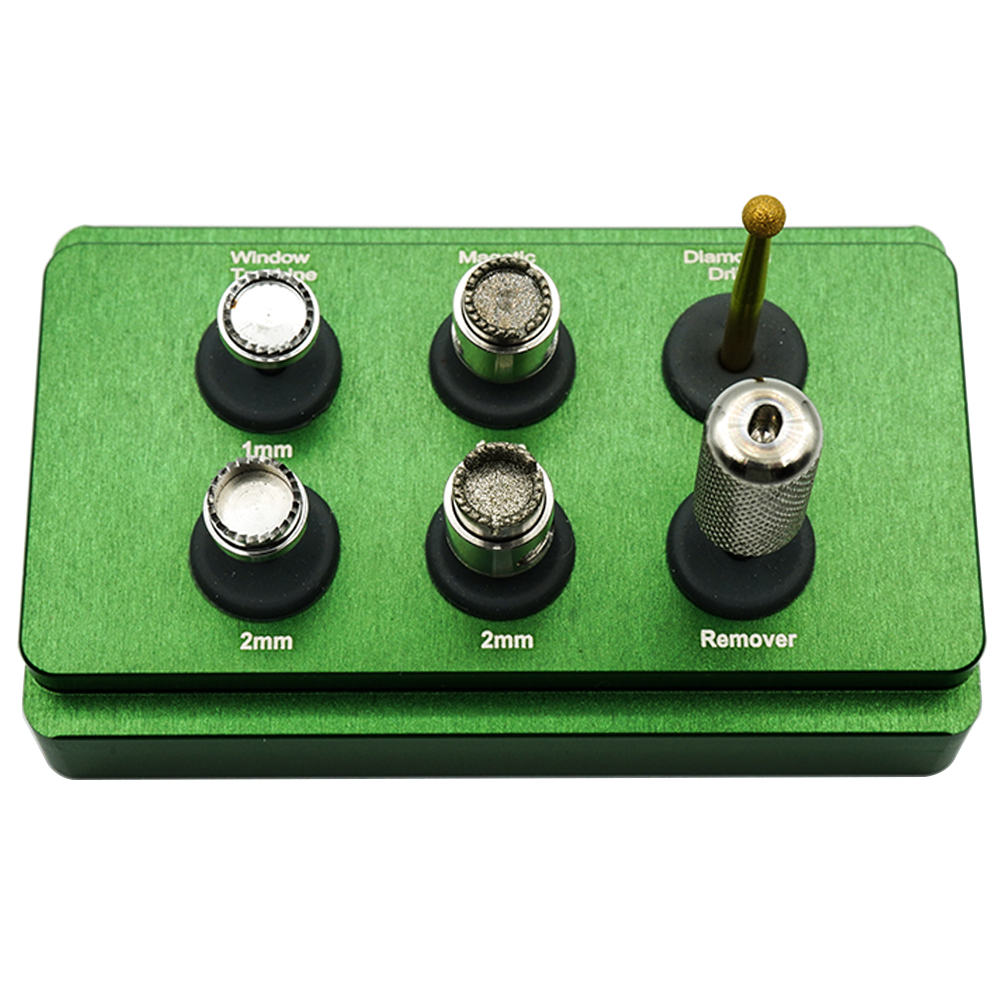

Packaging

• 1 x Remover (to help separate parts of the magnetic drills)
• 1 x Diamond Drill
• 2 x Magnetic Drills
• 2 x Window Trephines

Directions for Use

• Preparation: Ensure proper sterilization of all kit components before use. Confirm the integrity and sharpness of the Magnetic Sinus Artificial Intelligence (MASAI) drills.
• Patient Assessment: Evaluate the patient’s suitability for a lateral approach sinus lift. Confirm the need for sinus augmentation based on diagnostic imaging.
• Anesthesia: Administer local anesthesia to the patient to ensure comfort during the procedure.
• Incision and Flap Creation: Make an appropriate incision and create a flap to expose the surgical site, ensuring optimal visibility.
• Selection of MASAI Drill: Choose the appropriate MASAI drill based on the planned depth and diameter of the sinus lift.
• Drilling Process: Insert the selected MASAI drill into the lateral aspect of the maxillary bone. Apply gentle and controlled pressure to initiate drilling, taking care to prevent excessive force.
• Safety Cutoff Mechanism: Utilize the unique magnetic safety system by allowing the MASAI drill to separate once it passes through the bone. Confirm the safe cutoff by observing the automatic disengagement of the magnets.
• Grooved Blade Features: Leverage the grooved blade design of the MASAI drill for efficient cutting while minimizing the risk of sinus membrane damage.
• Rim Utilization: Use the rim of the MASAI drill to prevent sinus penetration after the bone has been punctured.
• Confirmation and Evaluation: Verify the successful completion of the lateral approach sinus lift. Evaluate the membrane elevation and overall procedure outcomes.
• Closure: Close the incision site with appropriate sutures, following standard closure techniques.
• Postoperative Care: Provide postoperative instructions to the patient for optimal healing. Schedule follow-up appointments as needed.
• Documentation: Document the details of the procedure, including the MASAI drill used, depths achieved, and any relevant information for the patient’s records.

Additional Information

Country of Origin: South Korea

Manufacturer:
MCTBIO Co., Ltd.
46, Chobu-ro, Mohyeon-myeon, Cheoin-gu, Yongin-si, Gyeonggi-do – 17037, Republic of Korea
Tel: +82-31-333-7373

Packer:
MCTBIO Co., Ltd.
46, Chobu-ro, Mohyeon-myeon, Cheoin-gu, Yongin-si, Gyeonggi-do – 17037, Republic of Korea

Imported By:
Gala No. 24, 1st Floor, Dewan & Shah Industrial Estate No. 2-B, Navghar, Vasai – 401202, Maharashtra, India
Phone: +91 72899 99456

Warranty & Service

• 3 months warranty against manufacturing defects.
