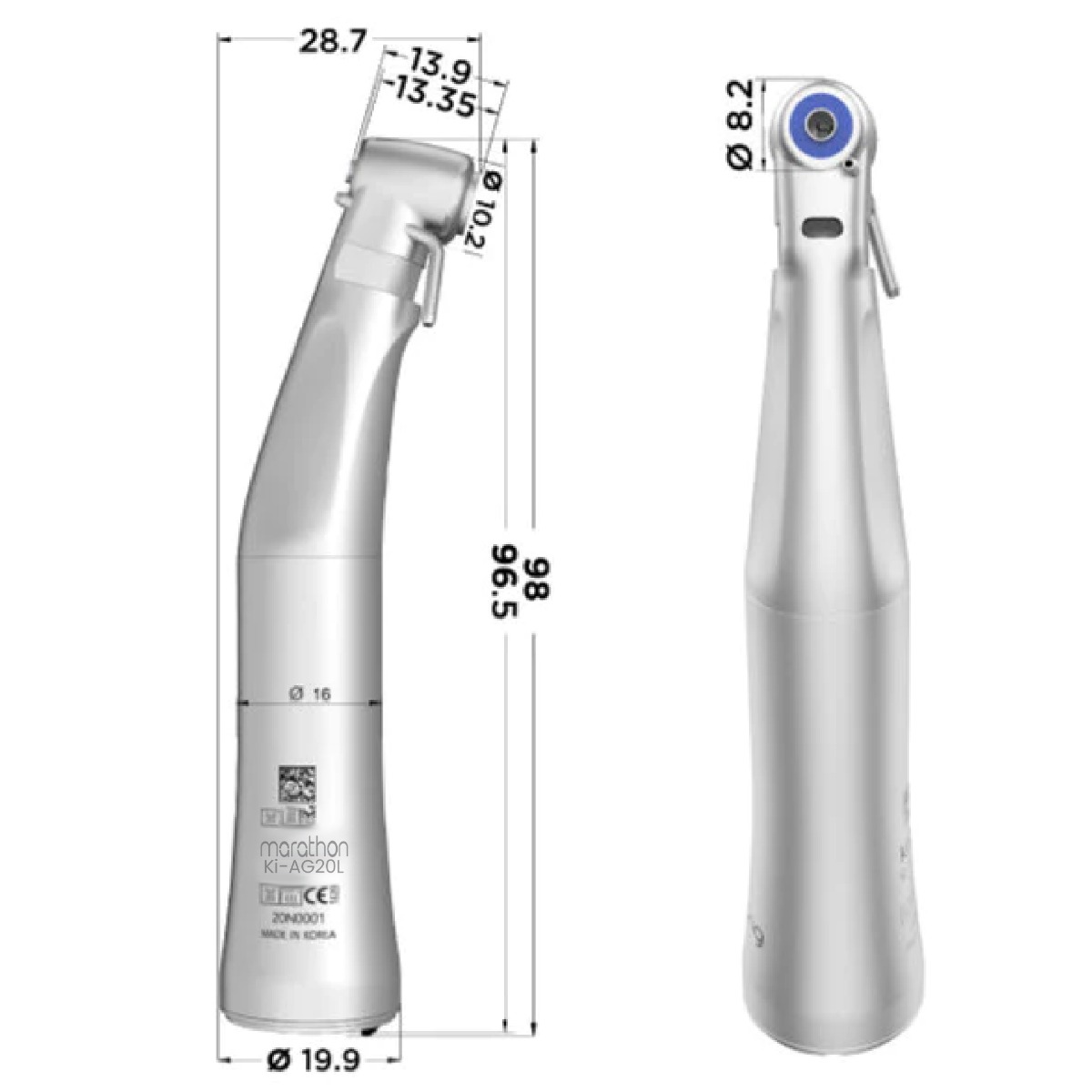

Marathon Optic Implant Handpiece 20:1 – Ki-AG20L

Description

Marathon Implant Handpiece is designed to meet the challenges that surgical interventions represent. The surgical contra angle handpiece has been specially designed for oral and maxillofacial surgery and implantology.

The body of the handpiece is made of high quality stainless-steel and a scratch-resistant coating. The double sealing system prevents seepage of fluids into the instrument head, thereby increasing longevity. It is easy to disassemble therefore, easy to clean thoroughly. The efficient internal and external cooling system ensures no harm to tissues.

Main indications :

Implantation
Sequestration
Osteotomy
Bone modelling

Key Features

• Double-sealing system to prevent seepage and backflow of fluids to increase the longevity
• Scratch-proof body
• Inbuilt LED light
• Autoclavable upto 135°C
• Push-button type chuck
• Ensures good grip, thereby reducing hand fatigue
• Efficient cooling system

Specifications

• Stainless steel body
• Double sealing system
• Push button chuck
• External irrigation system
• Speed : 20-2000 rpm
• Weight: 87g
• Torque: 5–70Ncm
• Gear-head ratio: 20:1
• Autoclavable : At 135°C

Packaging

• 1 X Contra angle
• 1 X External spray Nozzle
• 1 X Spray Nozzle
• 1 X Wrench
• 1 X Nozzle pin
• 1 X Nozzle Clamp
• 1 X Internal Spray Nozzle

Directions for Use

• Connect the handpiece to the physiodispenser unit and attach the external cooling system
• Connect the drill of choice
• The drills should be removed after use, followed by disassembling of the handpiece for thorough cleaning
• The handpiece should be lubricated and autoclaved after every patient.

Additional Information

Country of Origin: South Korea

Manufacturer:
Saeyang Co., Ltd.
(Galsan-dong), 348, Seongseo-ro, Dalseo-gu, Daegu – 42697, South Korea

Packer:
Saeyang Co., Ltd.
(Galsan-dong), 348, Seongseo-ro, Dalseo-gu, Daegu – 42697, South Korea
