MCTBIO Masai Drill Kit- 4 (MAS4-01)

Description

MCTBIO Masai Drill Kit- 4 (MAS4-01)

The MCTBIO Masai Drill Kit-4 (MAS4-01) introduces cutting-edge technology in maxillary window preparation, prioritizing sinus membrane safety. The Masai Magnetic Drill utilizes Alnico magnets, heat-resistant up to 400 degrees Celsius, ideal for autoclaving. This Magnetic Sinus Artificial Intelligence Drill features three key safety mechanisms for optimal precision and patient care.

The blade of the drill incorporates grooves in the diamond bar, ensuring excellent safety and cutting force while avoiding damage to the sinus membrane. The Masai drill is designed to trip against the sill created by the initial drill, preventing inadvertent penetration during bone punching. Furthermore, at the moment of bone punching, the magnetic force causes the upper part of the Masai drill to separate from the lower part, halting the operation instantly. This distinctive feature allows easy separation, enhancing overall control and safety during dental procedures. The Masai Drill Kit-4 exemplifies technological advancements for meticulous maxillary window preparation, ensuring patient well-being and procedural precision in sinus augmentation.

Key Features

• Magnetic Technology: Utilizes Alnico magnets, heat-resistant up to 400°C, ideal for autoclaving, ensuring optimal sterilization.
• Sinus Membrane Safety: Grooves in the diamond bar of the drill provide excellent safety and cutting force without damaging the sinus membrane.
• Triple Safety Devices: Features three safety mechanisms to enhance precision and minimize risks during maxillary window preparation.
• Sill Tripping Mechanism: The Masai drill is tripped against the sill created by the initial drill, preventing accidental penetration during bone punching.
• Instant Halt Mechanism: At the moment of bone punching, magnetic force causes separation between the upper and lower parts, instantly stopping the operation for enhanced safety.
• User Perception: The separation is perceivable by hand, allowing easy identification and separation of the gear during procedures.
• Cutting-edge Technology: Incorporates Magnetic Sinus Artificial Intelligence Drill for advanced and precise maxillary window preparation.
• Dental Procedure Precision: Engineered to ensure meticulous and safe preparation of maxillary windows without compromising sinus membrane integrity.

Specifications

• Crester Reamer Diameter: ∅2.8, ∅3.3, ∅3.8
• Crester Dill Diameter: ∅2.0, ∅2.5, ∅2.8, ∅3.3, ∅3.5, ∅3.8
• Stopper Lenght: 1mm, 2mm, 3mm, 4mm, 5mm, 6mm, 7mm, 8mm
• Window Magnetic Drill Diameter: ∅6.5, 6.5-2∅
• Window Magnetic Drill Length: 1mm, 2mm
• Trimmer Diameter: ∅5.0, ∅7.0
• Aqua Tip Diameter: ∅2.8, ∅3.0, ∅3.3, ∅3.5, ∅3.8, ∅4.0, ∅2.9/6.2

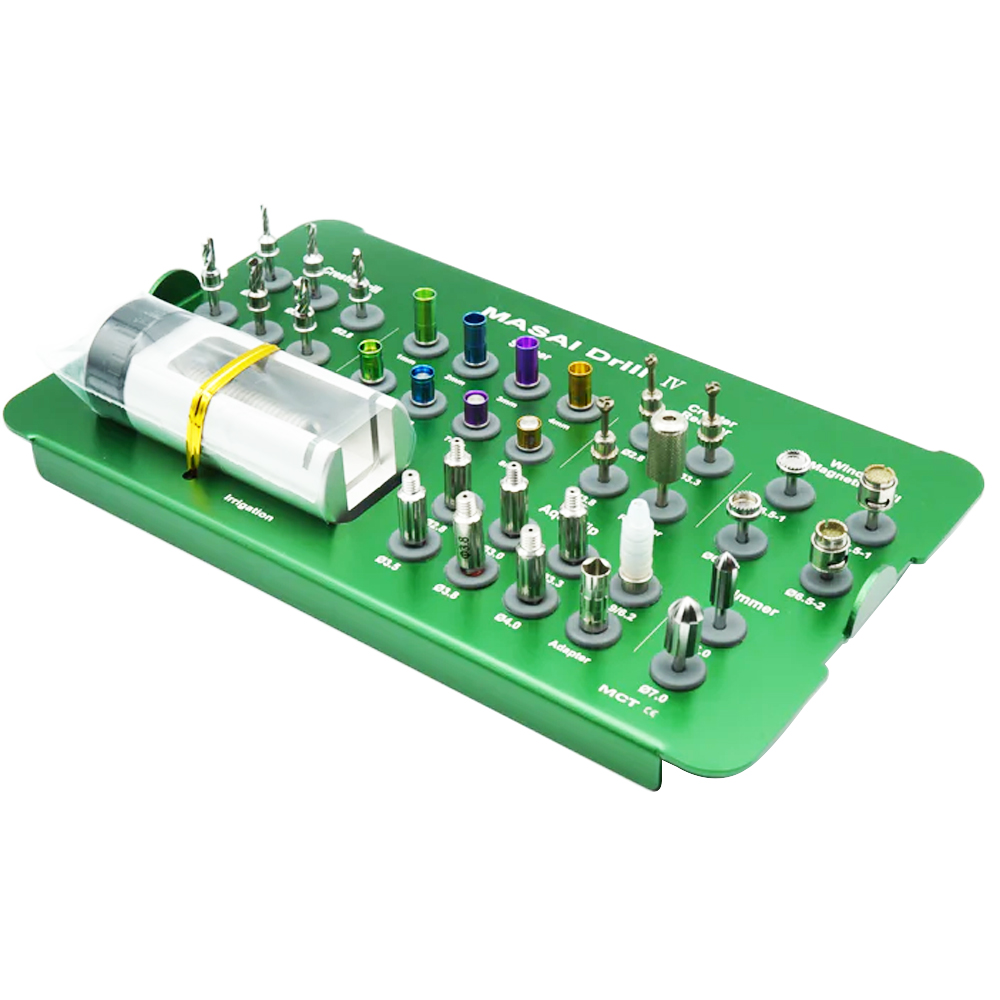

Packaging

• 1 x Irrigation Tube
• 1 x Adapter
• 1 x Remover
• 2 x Trimmer
• 3 x Crester Reamer
• 4 x Window Magnetic Drill
• 5 x Sinus Lift Instruments
• 6 x Crester Drill
• 7 x Aqua Tip
• 8 x Stoppers

Directions for Use

• Preparation: Sterilize the Masai Drill components using autoclaving, taking advantage of the heat-resistant Alnico magnets.
• Selection of Drill Bit: Choose the appropriate Masai drill bit for the desired maxillary window preparation, considering size and specifications.
• Patient Positioning: Ensure proper patient positioning for effective and safe sinus augmentation.
• Safety Check: Confirm the three safety mechanisms are operational: grooved diamond bar, sill tripping, and instant halt with magnetic force.
• Drilling Procedure: Perform the maxillary window preparation with the Masai Drill, allowing the grooves in the diamond bar to ensure safety and cutting force without damaging the sinus membrane.
• Sill Tripping Mechanism: Allow the Masai drill to trip against the sill created by the initial drill, preventing unintended penetration during bone punching.
• Instant Halt Mechanism: Be aware that at the moment of bone punching, the magnetic force will cause the upper part of the Masai drill to separate from the lower part, instantly stopping the operation.
• User Perception and Separation: Perceive the separation by hand and easily separate the gear to enhance control during procedures.
• Post-Procedure Steps: Thoroughly clean and sterilize the Masai Drill components after each use, adhering to recommended hygiene protocols.

Additional Information

Country of Origin: South Korea

Manufacturer:
MCTBIO Co., Ltd.
46, Chobu-ro, Mohyeon-myeon, Cheoin-gu, Yongin-si, Gyeonggi-do – 17037, Republic of Korea
Tel: +82-31-333-7373

Packer:
MCTBIO Co., Ltd.
46, Chobu-ro, Mohyeon-myeon, Cheoin-gu, Yongin-si, Gyeonggi-do – 17037, Republic of Korea

Imported By:
Gala No. 24, 1st Floor, Dewan & Shah Industrial Estate No. 2-B, Navghar, Vasai – 401202, Maharashtra, India
Phone: +91 72899 99456

Warranty & Service

• 3 months warranty against manufacturing defects.
