Marathon Endo E Class Endo Motor

Description

Marathon Endomotor E Class by Saeyang is an endo motor used in conjunction with rotary endodontic files in the biomechanical preparation phase of endodontic therapy. It is an innovative endo rotary motor that offers quiet and comfortable performance. The endo handpiece has a push-type miniature head that makes the replacement of rotary files easy and increases the visibility of the tooth being operated. The auto stop reverses feature of the rotary endo motor ensure that once overloaded, the motor stops running in the usual direction and starts running in the opposite direction until the load is solved. Once the load is solved the motor starts running in the forward direction. The E-type motor is compatible with micromotor handpieces in compliance with ISO standards. The contra-angle handpiece with a compact head has a gear ratio of 16:1. It has a stainless steel body with a push-button chuck loading mechanism. The endomotor functions at a maximum torque of 9.9 Ncm in a 64:1 ratio.

• Quiet and Comfortable Performance Accurate and Stable Performance
• Various Reduction Gear ratios
• Endo e Class can drive from 20 to 4,400rpm with its strong torque of 9.9Ncm (except 6:1)
• Various Reduction gear ratios (6:1, 8:1, 10:1, 16:1, 20:1, 64:1) can lead you to the perfect performance.
• 15 Memory Program Function

Key Features

• Torque controlled motor for safe opeartion
• Various of handpiece ratios supported
• 15 Free set programs
• Auto stop reverse/Auto stop manual/Reverse
• Acoustic warning at 75% of set torque value
• Torque range : 1-99 Nmm

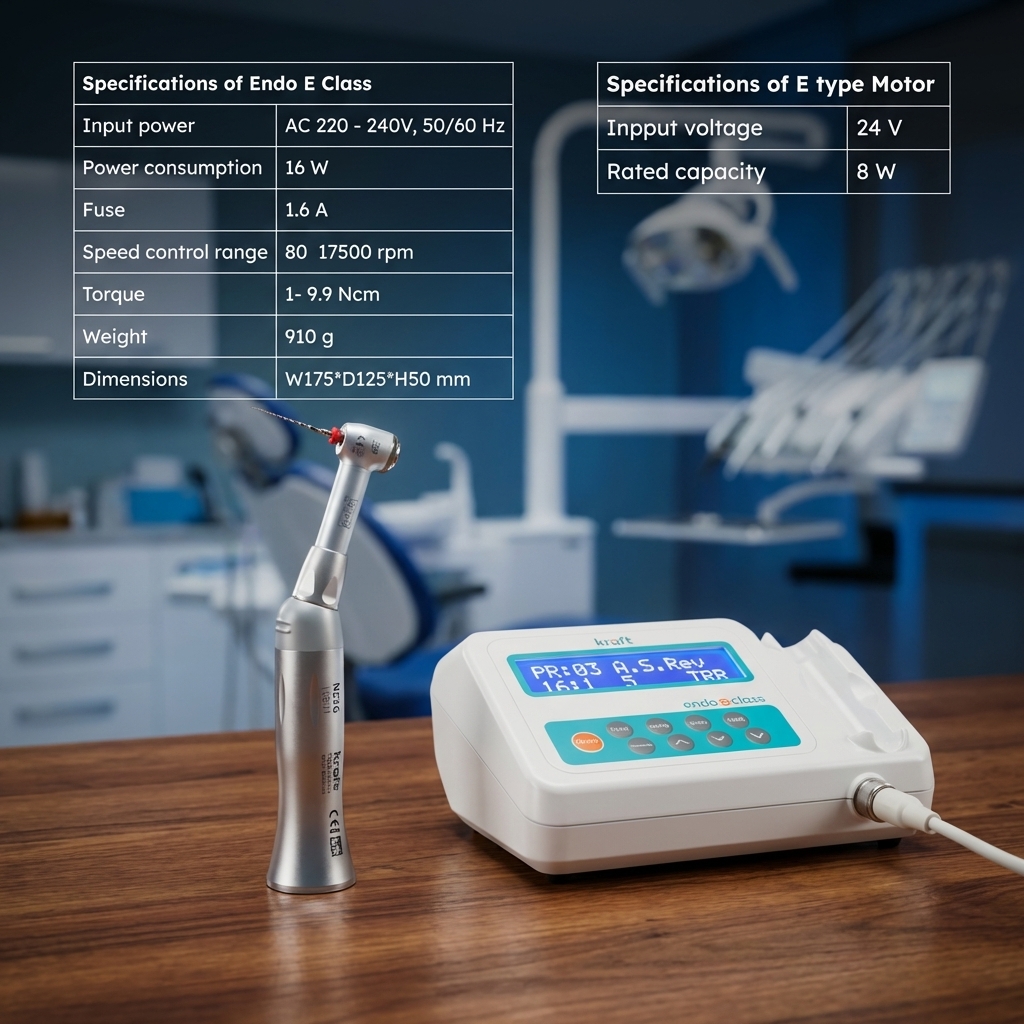

Specifications

Packaging

• 1 x Marathon Endo Motor E-Class
• 1 x Endodontic Handpiece (16:1)
• 1 x Foot pedal
• 1 x Motor handpiece
• 1 x Power Cord
• 1 x Handpiece stand

Directions for Use

Handpiece Attachment:

Attach the contra-angle handpiece securely to the Marathon Endo E Class Endo Motor. Follow the instructions provided with the endomotor for proper attachment.

File Selection:

• Choose the appropriate rotary endodontic file based on the specific procedure and tooth conditions.

Loading:

• Utilize the push-button chuck loading mechanism to load the selected rotary file into the handpiece. Ensure it is securely in place.

Power On:

• Turn on the Marathon Endo E Class Endo Motor using the designated power switch.

Speed Adjustment:

• Adjust the speed control to the desired RPM (rotations per minute) according to the requirements of the procedure.

Torque Setting:

• Set the torque level as needed for the specific procedure. Ensure the torque is within the recommended range for the selected rotary file.

Positioning:

• Position the contra-angle handpiece with the loaded file in the patient’s mouth according to the treatment plan.

Operate in Forward Direction:

• Initiate the operation in the forward direction to begin the biomechanical preparation process.

Auto Stop Reverse:

• In case of an overload, the auto-stop reverse feature will activate. Allow the motor to automatically reverse direction until the load is resolved.

Resume Forward Direction:

• Once the overload is resolved, the motor will automatically resume running in the forward direction.

Monitor Torque and Speed:

• Throughout the operation, keep a close eye on both torque and speed to ensure they remain within the safe and effective range.

File Removal:

• After completing the procedure, use the push-button chuck loading mechanism to safely remove the rotary file from the handpiece.

Power Off:

• Turn off the Marathon Endo E Class Endo Motor once the procedure is complete.

Additional Information

Country of Origin: South Korea

Manufacturer:
Saeyang Co., Ltd.
(Galsan-dong), 348, Seongseo-ro, Dalseo-gu, Daegu – 42697, South Korea

Packer:
Saeyang Co., Ltd.
(Galsan-dong), 348, Seongseo-ro, Dalseo-gu, Daegu – 42697, South Korea
