Garrison Dental Strata-G Matrix Rings

Description

Garrison Dental Strata-G Matrix Rings

Garrison Dental Strata-G Matrix Rings, engineered for exceptional tooth separation and lasting performance. Crafted with advanced materials, including Nitinol drawn-wire nickel titanium, they offer superior strength with minimal effort to open. The proprietary StrataSet™ treatment ensures longevity, while PEEK reinforcement enhances durability. Enhanced anatomy features, including marginal ridge guides and StrataBond™ silicone tips, provide unbeatable grip and flash control. With wider indications, including the premier Wide Preparation separator ring, Strata-G™ offers versatility for challenging posterior restorations with confidence in achieving excellent contact and contour.

Key Features

• Optimal Tooth Separation: Garrison Dental Strata-G Matrix Rings ensure excellent, tight contacts by producing optimal tooth separation, facilitating seamless restorations.
• Long-Lasting Performance: Engineered with advanced materials and design, these rings boast superior longevity, providing the most predictable separator ring ever produced by Garrison Dental.
• Effortless Opening: Nitinol drawn-wire nickel titanium, aligned at the molecular level, delivers strong tooth separation with minimal effort required to open, ensuring user-friendly operation.
• PEEK Ultra-Durable Reinforcement: The PEEK reinforcement on the back of the ring enhances durability, retaining a higher percentage of initial strength for much longer than non-reinforced rings.
• Enhanced Anatomy and Grip: Improved marginal ridge guides and StrataBond™ silicone tips provide unbeatable grip and flash control, while Ultra-Halt™ retention extensions offer tenacious grip and gentle interaction with the papilla.
• Wide Indications: With wider indications, including the premier Wide Preparation separator ring, Strata-G™ offers versatility for a range of posterior restorations, ensuring excellent contact and contour in every case.

Specifications

SG400 Dimensions

• 10.34 mm height (at tallest point)
• 22.93 mm length
• 22.43 mm width (at widest point)

SG500 Dimensions

• 11.24 mm height (at tallest point)
• 23.06 mm length
• 22.43 mm width (at widest point)

SG600 Dimensions

• 11.24 mm height (at tallest point)
• 25.29 mm length
• 22.43 mm width (at widest point)

Materials

• Nitinol
• Peek
• Silicone

Packaging

• 1 x Strata-G Matrix Ring

Directions for Use

• Place rubber dam: Isolation of the area helps to prevent contamination from blood and saliva. As with many dental procedures, aspiration of small parts is a valid concern.
• Prepare tooth with conservative Class II preparation.
• Place rubber dam: Isolation of the area helps to prevent contamination from blood and saliva. As with many dental procedures, aspiration of small parts is a valid concern. Place Strata-G™ sectional matrix band. Select a matrix band that most closely approximates the occlusogingival height of the tooth. The Grab-Tab should be oriented toward the occlusal margin and may be bent over the adjacent tooth after placement.
• Insert Strata-G™ wedge: Keep a fi nger on the matrix band to prevent the wedge from dislodging the band during insertion. Wedge fi rmly, a high viscosity resin packed into the preparation may displace the band away from the tooth.

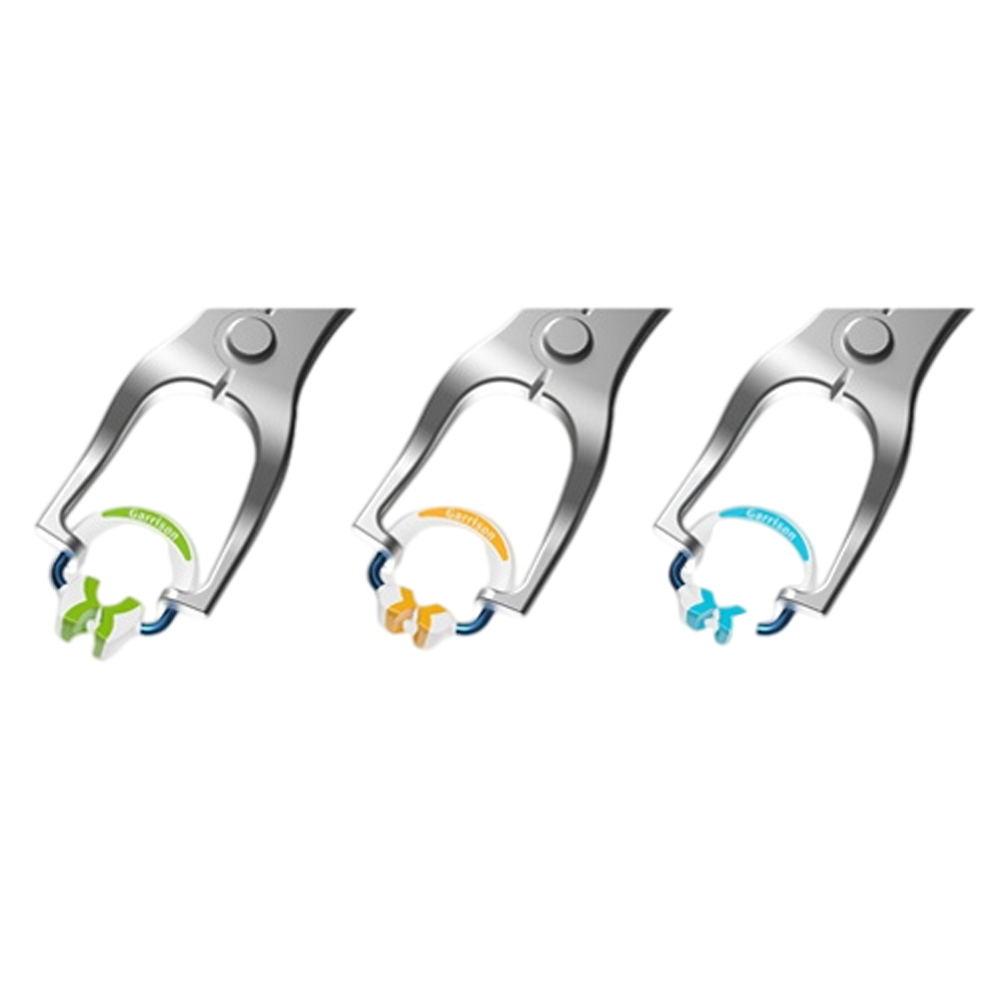

• Apply the Strata-G™ Soft Face™ ring retainer: Select a retainer ring that is appropriate for the embrasure and tooth being restored. Spread it with the *Garrison Premier Ring Placement forceps and place it over the wedge.
• Very Important: Push the matrix band firmly into contact with the adjacent tooth in the desired contact area.
• Use your preferred etching, disinfecting, and bonding technique following the manufacturer’s instructions. Apply your preferred composite resin following the manufacturer’s instructions.
• Remove the ring, wedge, and band.
• Contour and polish the restoration.

Warranty & Service

• Warranty is not applicable for this product.
