Garrison Dental Composi-Tight 3D Fusion Matrix Rings

Description

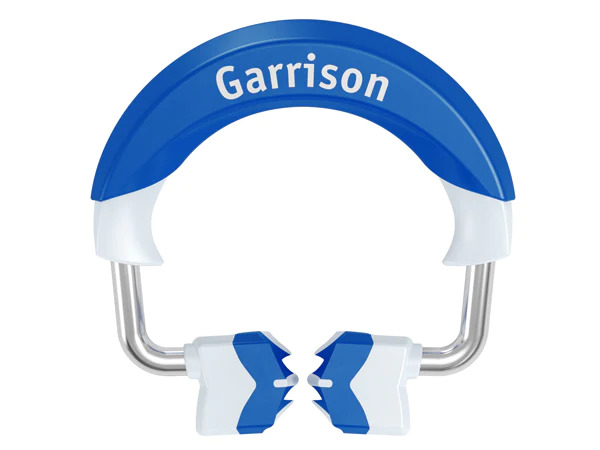

The two main separator rings, short (blue) and tall (orange), are the heart of the new Composi-Tight® 3D Fusion™ system. These are your “go-to” rings and will be used for the majority of restorations. The short ring is mainly used for bicuspids, premolars, pedo, malpositioned teeth; any tooth with a short crown. The tall ring is used for typical molars, taller teeth, or stacking over blue for MODs.

The world’s first Wide Preparation separator ring (green) makes Composi-Tight® 3D Fusion™ the most versatile and user-friendly sectional matrix system available. The Wide Prep ring greatly simplifies what until now has been one of the most challenging posterior composite restorations. Now you can restore extremely wide preps and missing cusps with confidence knowing that you will achieve excellent contact and contour without having to take extra steps.

Other features and benefits include:

• Incorporates Ultra-Grip retention extensions anchoring them to any tooth
• Tru-Stack allows the orange ring to be placed over the blue ring
• Soft-Face silicone tips contour more closely to the teeth for flash-free restorations
• Enhances durability for extended ring life and greater tooth separation

Indications for Use : Class II procedure

Key Features

• Get a grip – All Composi-Tight 3D Fusion separator rings incorporate Ultra-Grip™ retention extensions that anchor them securely to virtually any tooth. Fusion rings stay where you place them!
• Stack it up – Tru-Stack technology allows placement of the orange ring (tall) over the blue ring (short) for easier MOD and multiple tooth restorations
• Hugs the curves – Soft-Face silicone tips with enhanced marginal ridge anatomy hug the matrix band to the tooth for flash free restorations
• It just keeps going – Enhanced durability for extended ring life and greater tooth separation

Specifications

Composi-Tight 3D Fusion Short Ring FX400: used for bicuspids, premolars, pedo, malpositioned teeth; any tooth with a short crown.

Composi-Tight 3D Fusion Tall Ring FX500: used for typical molars, taller teeth, or stacking over blue for MODs.

Composi-Tight 3D Fusion Wide Prep Ring FX600: used for extremely wide preps, missing cusps.

Packaging

• 1 x Composi-Tight 3D Fusion Ring

Directions for Use

Technique for Class II restorations utilizing Composi-Tight 3D Fusion Soft Face Rings

1. Place rubber dam. Isolation of the area helps to prevent contamination from blood and saliva. As with many dental procedures, aspiration of small parts is a valid concern.

2. Place FenderWedge prior to preparation to pre-separate and protect the adjacent tooth. Prepare tooth with conservative Class II preparation. Once the preparation is complete, remove the FenderWedge and place your matrix.



3. Place Composi-Tight 3D Fusion sectional matrix band. Select a matrix band that most closely approximates the occlusogingival height of the tooth. The Grab-Tab should be oriented toward the occlusal margin and may be bent over the adjacent tooth after placement



4. Insert Composi-Tight 3D Fusion wedge. Keep a finger on the matrix band to prevent the wedge from dislodging the band during insertion. Wedge firmly, a high viscosity resin packed into the preparation may displace the band away from the tooth.



5. Apply the Composi-Tight 3D Fusion Soft Face ring retainer. Select a retainer ring that is appropriate for the embrasure and tooth being restored. Spread it with the *Composi-Tight 3D Fusion Ring Placement forceps and place it over the wedge.



6. Very Important: push the matrix band firmly into contact with the adjacent tooth in the desired contact area.

7. Use your preferred etching, disinfecting and bonding technique following manufacturer’s instructions. Apply your preferred composite resin following manufacturer’s instructions.

8. Remove the ring, wedge and band.

9. Contour and polish the restoration.

Warranty & Service

• Warranty is not applicable for this product.
