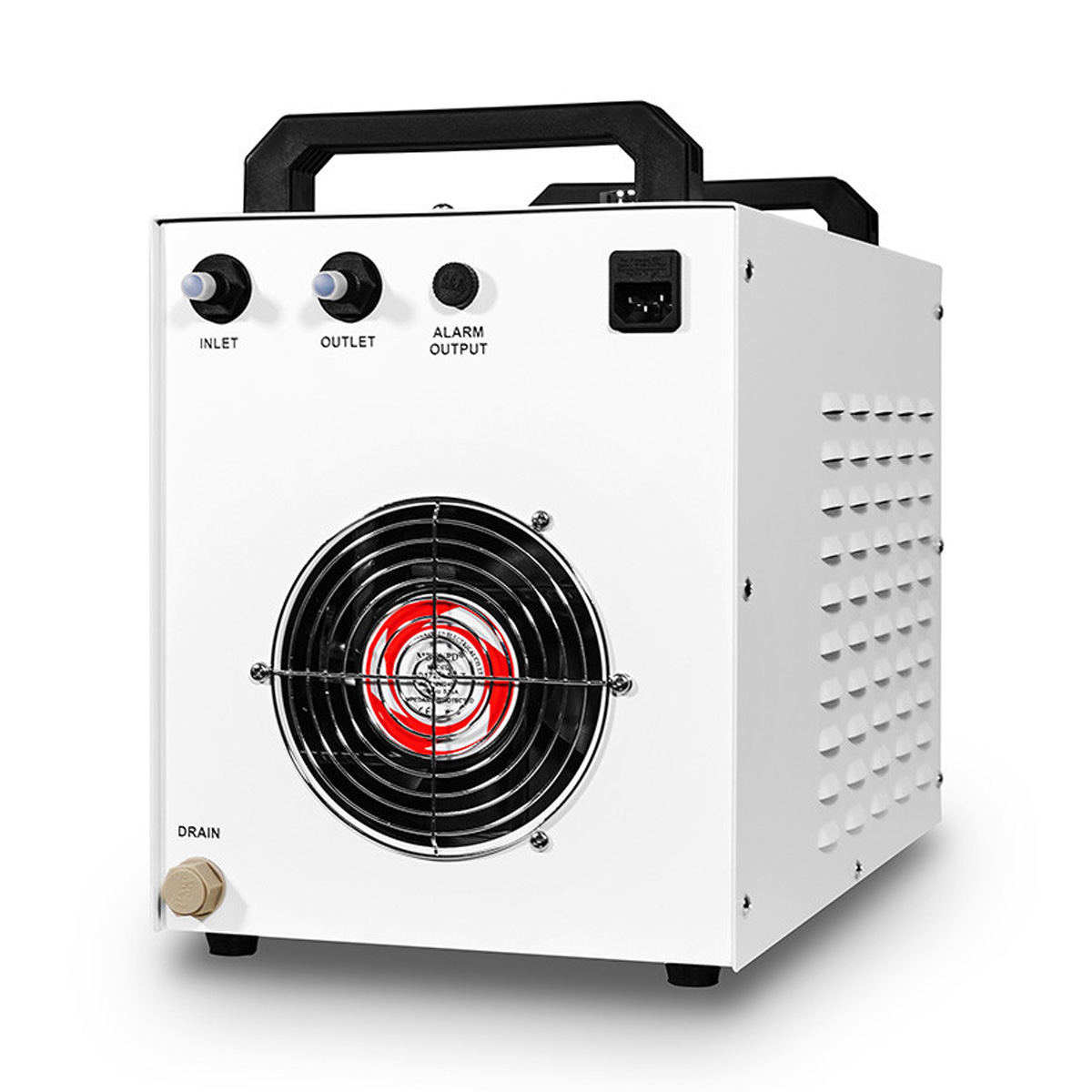

Fastform Deskfab X1 Water Chiller

Description

Fastform Deskfab X1 Water Chiller is a professional cooling unit designed specifically for dental laser systems and liquid cooled dental CNC equipment. Engineered to support ≤80W CO₂ dental laser tubes and 1.5 kW water-cooled diamond polishers and grinders, this chiller ensures efficient and stable thermal control. With a high capacity 9 L reservoir, maximum 10 L/min flow rate, and 10 m lift head, the unit provides consistent coolant circulation for uninterrupted clinical operation. Its digital temperature display allows dental professionals to monitor temperature in real time, while built-in flow alarm protection prevents overheating and dry running. The compact space-saving design, low energy consumption, and easy operation make it ideal for dental clinics, labs, and surgical centers. Designed with passive cooling and robust industrial components, Deskfab X1 delivers reliable performance for dental lasers, rotary dental tools, and precision instruments requiring controlled cooling.

Key Features

• Compatible with Fastform Deskfab X1 Water Chiller only
• Designed for dental CO₂ lasers and liquid cooled dental devices
• Radiating capacity of 50 W per ℃ for efficient heat dissipation
• High flow rate up to 10 L per minute for optimal coolant circulation
• Large 9 L water tank supports long clinical sessions
• Compatible with ≤80W laser tubes and 1.5 kW liquid cooled spindles
• Digital temperature display for precise thermal monitoring
• Built-in flow alarm protection for safety and equipment longevity
• Passive air cooled operation without environmentally harmful refrigerants
• Compact and lightweight design for dental clinic and lab environments
• Low energy consumption with efficient fan and motor system
• Universal voltage support for 220 V 50 Hz and 60 Hz applications
• OD 10 mm barbed connectors for secure dental equipment integration
• Sturdy industrial construction for reliable long term performance
• Easy operation and minimal maintenance for clinical workflows

Specifications

• Input Voltage – AC 1P 220V / 110V
• Frequency – 50 / 60 Hz
• Operating Current – 0.4 to 1 A
• Machine Power – 0.10 kW
• Cooling Method – Passive Air Cooled
• Radiating Capacity – 50 W per ℃
• Cooling Capacity – Suitable for 60W to 80W CO2 Tubes
• Tank Capacity – 9 Liters
• Maximum Flow Rate – 10 L per minute
• Maximum Lift – 10 Meters
• Connector Type – OD 10 mm Barbed
• Temperature Display – Digital LED Display
• Protection System – Flow Alarm Protection
• Core Components – Motor Pump Condenser Engine
• Machine Dimensions – 49 X 27 X 38 cm
• Package Dimensions – 55 X 34 X 43 cm
• Net Weight – 9 Kg
• Gross Weight – 11 Kg
• Application Type – CO2 Laser Engraving and CNC Spindle Cooling

Packaging

• 1 x Fastform Deskfab X1 Water Chiller

Directions for Use

Installation

• Place the chiller on a flat stable surface with adequate ventilation clearance
• Ensure ambient temperature is within recommended operating range
• Keep air vents unobstructed to maintain efficient heat dissipation

Water Filling

• Open the water inlet cap and fill the tank with clean distilled or deionized water
• Do not exceed maximum tank capacity of 9 liters
• Securely close the cap after filling to prevent contamination

Connection Setup

• Connect inlet and outlet hoses using OD 10mm barbed connectors
• Ensure tight hose fitting to prevent leakage during operation
• Verify correct flow direction between chiller and laser tube or CNC spindle

Electrical Connection

• Connect to AC 220V single phase power supply with proper grounding
• Confirm voltage compatibility before switching on the unit
• Avoid using extension cords with unstable current supply

Operation

• Switch on the chiller and confirm active water circulation
• Check digital display to monitor temperature stability
• Ensure flow alarm is inactive before starting laser or spindle
• Operate within recommended cooling load capacity

Maintenance

• Replace circulating water periodically to prevent scaling
• Clean air vents and fan area to maintain airflow efficiency
• Inspect hoses and connectors regularly for leakage or blockage
• Drain water completely before long term storage or transportation

Additional Information

• Country of origin: PRC

Warranty & Service

• Warranty is not applicable for this product
