Fastform Compressor Head For Metal 3D Printer (M140C)

Description

The Fastform Compressor Head is a core pneumatic component for the FF-M140C metal 3D printer, supplying the steady compressed airflow the system needs during selective laser melting. It maintains consistent internal pressure and supports circulation of the protective inert gas across the build platform, helping clear smoke, spatter, and condensate from the laser path for cleaner, more stable prints. Built for continuous dental-lab use, the head runs with low vibration and minimal heat build-up, protecting downstream valves, actuators, and the recoater mechanism. Its sealed metal housing withstands demanding duty cycles, while a simple fit-and-connect design keeps replacement quick and downtime low. As an OEM-grade replacement, it restores original airflow performance when the existing unit weakens or fails, reducing print interruptions and safeguarding build quality. Compatible specifically with the FastForm FF-M140C SLM platform, it is a direct-fit spare that installs without modification for uninterrupted production of crowns, bridges, and metal frameworks.

Key Features

• Stable compressed airflow output
• Consistent chamber pressure
• Supports inert gas circulation
• Low-vibration, quiet operation
• Sealed, durable metal build
• Direct-fit OEM replacement

Specifications

• Size: 27 x 13 x 19 cm
• Oil-less operation (clean air stream, less maintenance)
• Power: 500W / 0.75 HP
• Noise: 50 dB (silent, below 55 dB)
• Max pressure: 120 PSI

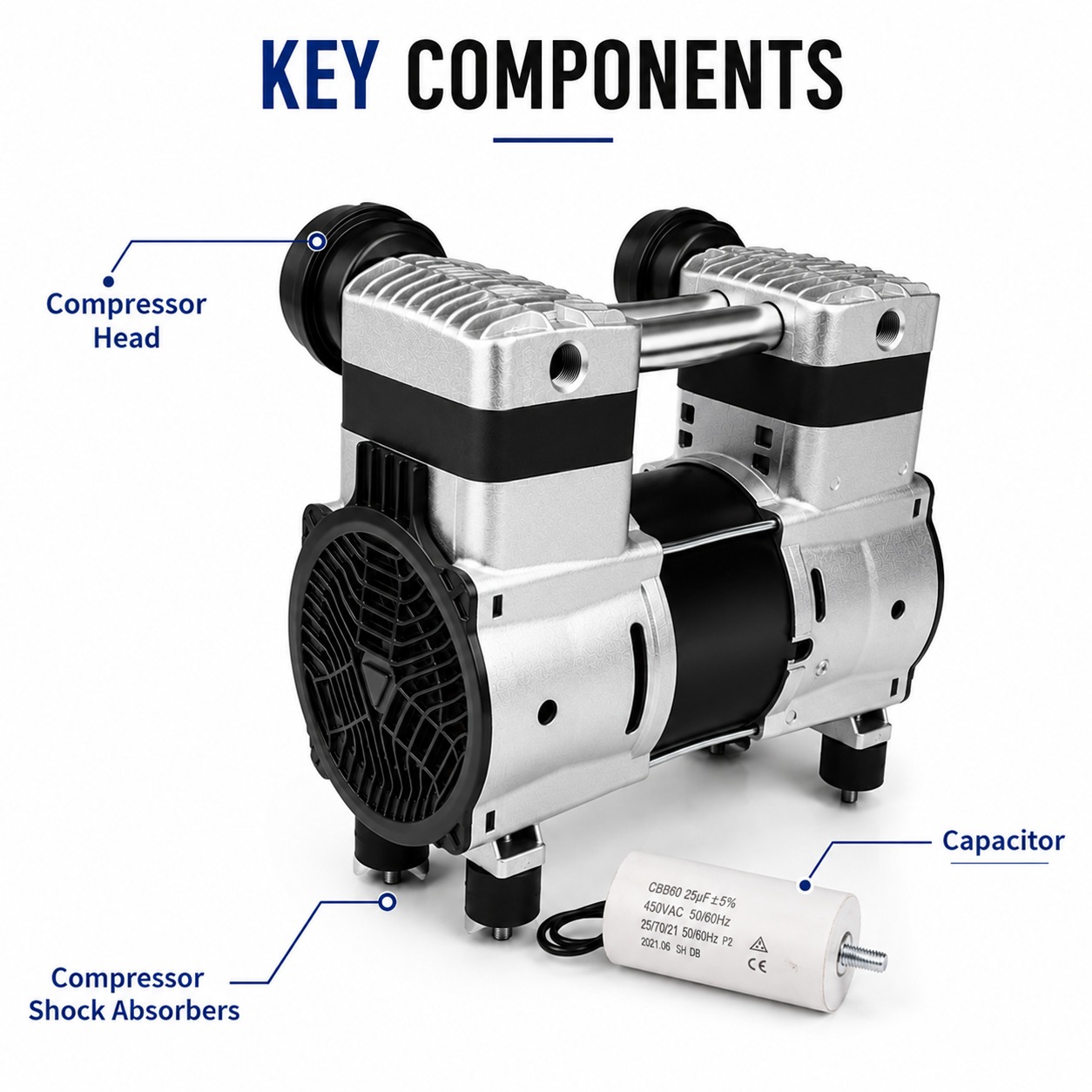

Packaging

• 1 x Compressor Head
• 1 x Capacitor
• 4 x Compressor Shock Absorbers

Note: Compatible for Fastform Dental Metal 3D Printer FF-M140C

Directions for Use

Installation

• Switch off the printer and release any residual air pressure from the system before starting
• Place the compressor on a flat, stable surface beside the printer, allowing space for airflow and ventilation
• Disconnect the old or faulty compressor head from the air line (if replacing)
• Connect the air outlet to the printer’s air-inlet hose and tighten the fitting securely
• Plug into a properly earthed power socket matching the rated 500W / 0.75 HP supply
• Check all connections and hose clamps for a tight, leak-free seal

Operation / Use

• Power on the compressor and let it build up to working pressure
• Confirm the gauge holds steady pressure (up to 120 PSI) before running a print
• Keep the unit upright and ventilated during operation; being oil-less, it needs no oil top-up
• Drain any accumulated condensate from the tank periodically as per the manual
• Switch off and depressurise after use, and during longer idle periods
