DentalPlant Straumann Compatible SmartPegs

Description

DentalPlant Straumann Compatible SmartPegs are specialized diagnostic components designed to deliver precise resonance frequency analysis for Straumann implant systems. Crafted from high-quality anodized aluminum, these SmartPegs ensure lightweight stability and accuracy during ISQ measurements. Available in two variants, Standard Bone Level RC and Bone Level Tapered RC, they adapt to different implant geometries for maximum reliability. Their secure connection minimizes variability, supporting clinicians in making evidence-based decisions about implant loading and osseointegration. By providing consistent, reproducible ISQ values, these SmartPegs enhance predictability in treatment planning and long-term implant success. Easy to attach and remove, they offer efficiency and confidence during clinical evaluation, making them essential tools for advanced implant dentistry.

Key Features

• Precision engineered for Straumann implant systems
• Provides reliable and accurate ISQ values
• Available in Standard and Tapered RC designs
• Constructed from lightweight anodized aluminum
• Ensures secure fit and minimal variability
• Supports predictable implant loading protocols
• Quick attachment and easy removal during use
• Optimized for resonance frequency analyzers

Specifications

• Compatibility: Straumann Bone Level
• Variants: Standard RC and Tapered RC
• Thread Size: M1.6 x 0.35
• Length: 6 mm / 5.5 mm
• Height: 3.35 mm / 2.8 mm
• Material: Anodized Aluminum
• Compatible with DentalPlant Implant Stability Tester

Packaging

• 1 x DentalPlant Straumann Compatible SmartPegs

NOTE: Click here to buy Compatible DentalPlant Implant Stability Tester

Directions for Use

Selection:

• Identify the Straumann implant type and surgical site before measurement
• Select the appropriate SmartPeg variant – Standard RC or Tapered RC – according to the implant geometry
• Verify that the SmartPeg is sterile and undamaged before clinical use

Preparation:

• Ensure the implant site is clean and free from saliva or blood to avoid measurement errors
• Calibrate the resonance frequency analyzer (RFA) device if required by the manufacturer
• Prepare the driver tool to assist with SmartPeg placement

Attachment:

• Insert the SmartPeg gently into the Straumann implant interface
• Screw it into place using the provided driver tool without overtightening
• Confirm the SmartPeg is firmly seated and aligned vertically for optimal resonance detection

Measurement:

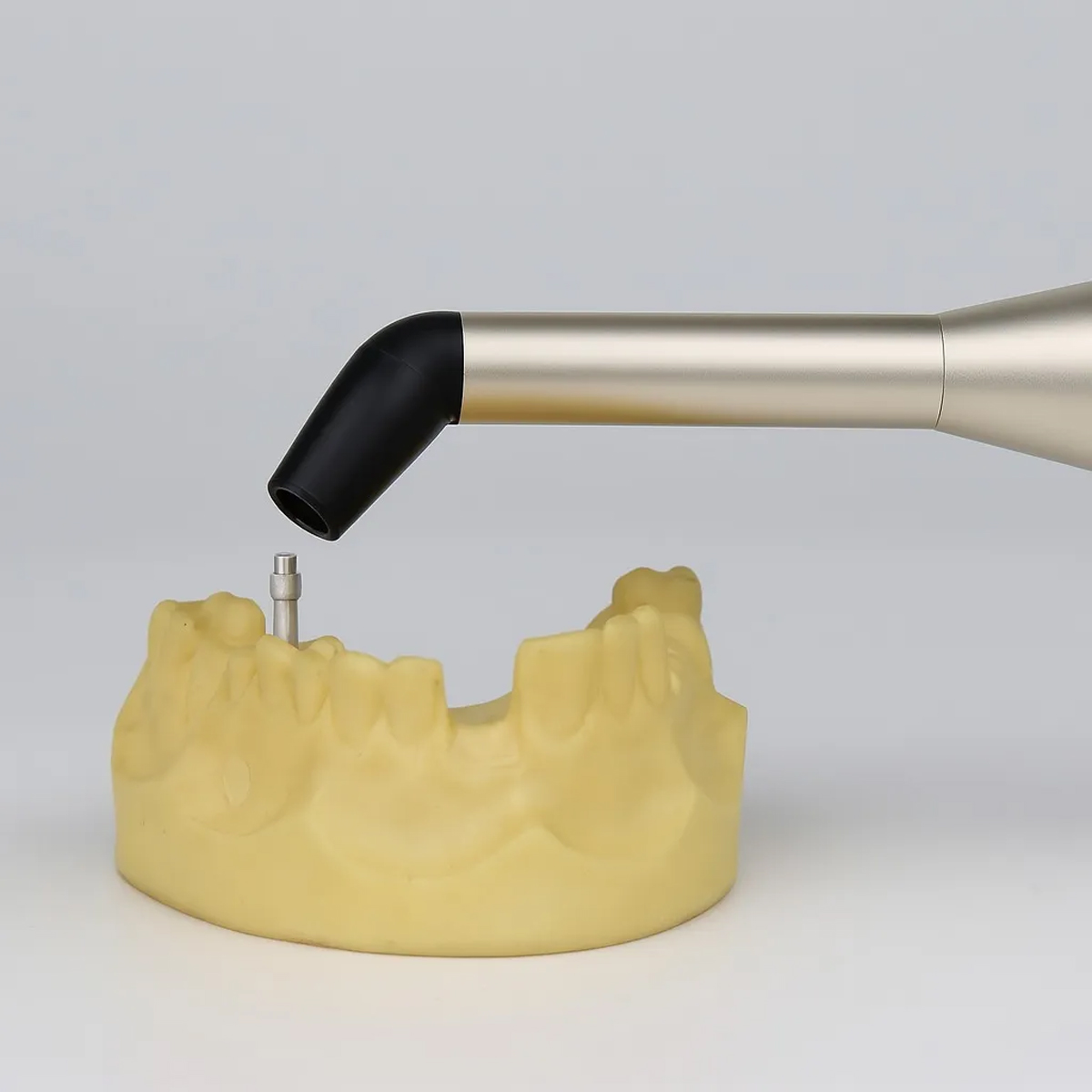

• Position the RFA probe close to the SmartPeg without making contact
• Activate the device to measure Implant Stability Quotient (ISQ) values
• Record ISQ readings from at least two directions (buccal and lingual or mesial and distal) for accuracy

Interpretation:

• Analyze the ISQ values to assess primary stability or ongoing osseointegration
• Use the results to guide clinical decisions on immediate loading or delayed restoration

Removal:

• Carefully unscrew the SmartPeg after completing ISQ measurements
• Clean and sterilize the SmartPeg according to standard protocol for future use
• Store in its protective case to maintain accuracy and prevent surface damage

Additional Information

Warranty & Service

• Warranty is not applicable for this product
