DentalPlant Implant Torque Wrench Ratchet 10–70 Ncm

Description

The manual torque wrench prosthetic is a manual reusable wrench used to ensure that correct torque is achieved during manual tightening of abutments and abutment screws. The manual torque wrench prosthetic can be connected to screw drivers via the manual torque wrench adapter prosthetic that can be inserted in the wrench. Torque level is indicated on a scale when a lever arm is loaded with a certain load (force). The scale has markings for the recommended torque values when using products. The manual torque wrench prosthetic consists of a wrench body and a metal rod that is inserted in the body to set the direction of rotation.

Key Features

• Ergonomic grip
• Easy to use
• Adjustable torque option
• Made of High Grade Stainless Steel
• High Durability

Specifications

• Type: Manual Torque Wrench (Prosthetic)

• Material: High-grade stainless steel

• Mechanism: Mechanical lever with torque scale

• Torque Range: 10–70 Ncm
• Resistant to rusting & corrosion

Packaging

• 1 x Implant Torque Wrench Ratchet 10–70 Ncm

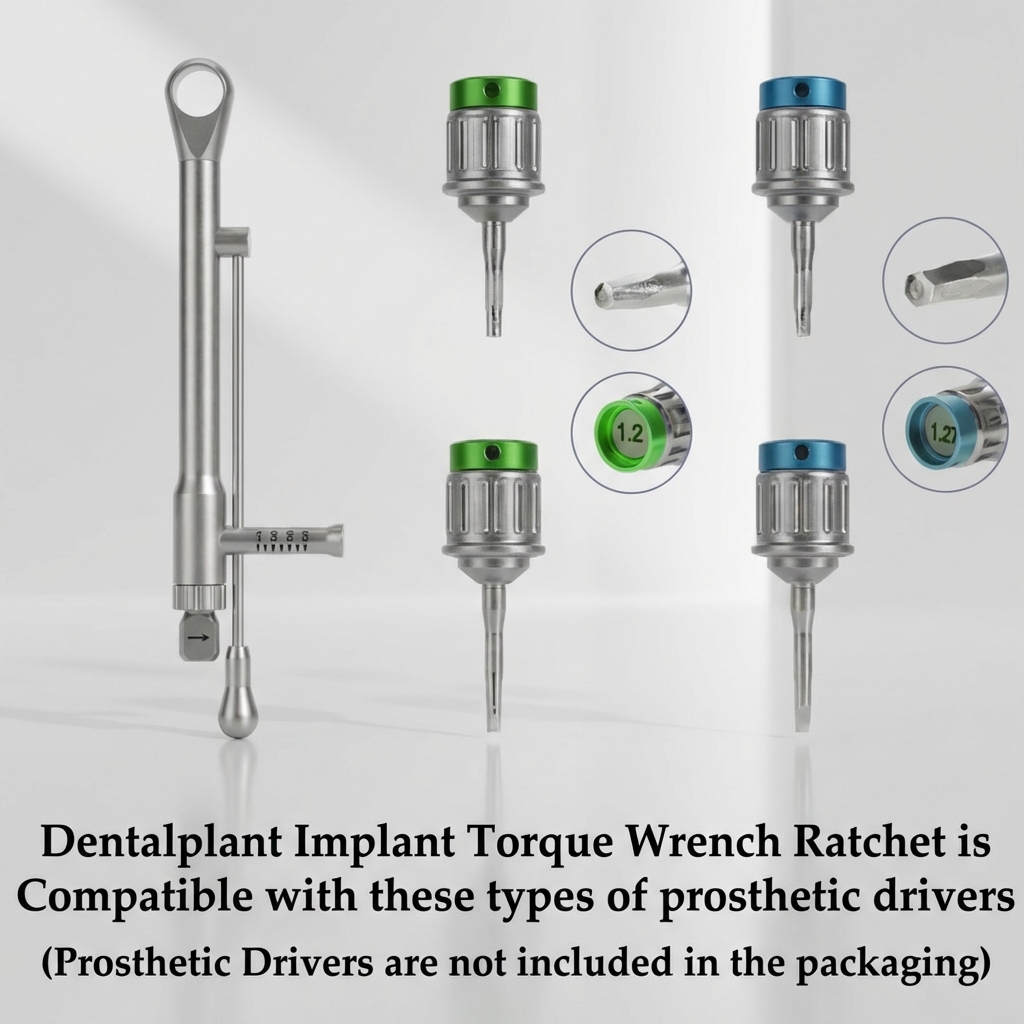

Click here to buy Compatible Hex driver

Directions for Use

Intended Use

The Manual Torque Wrench Prosthetic is intended to be used to tighten abutments and abutment screws and can be used as a controlled alternative to machine tightening.

Handling procedure:
For tightening of abutments and abutment screws, always start with manual tightening
(steps 1 and 2) before using the wrench (steps 3 and 4).

1. For manual tightening, remove the Manual Torque Wrench Adapter Prosthetic
2. Insert the driver and tighten the prosthetic component in a clockwise direction
3. For tightening with the wrench, insert the Manual Torque Wrench Adapter Prosthetic into the Manual Torque Wrench Prosthetic. A click will indicate that the adapter is fitted correctly
4. Secure that arrow is pointing in a clockwise direction. Tighten the prosthetic component with the tightening torque

Warning:

1. By applying force on the main body of the ratchet and not the lever arm, the applied torque cannot be measured, which could result in excessive torque which may lead to damage of the prosthetic component.
2. If necessary, the prosthetic component can be backed out using the Manual Torque Wrench Prosthetic with the direction indicator in reverse mode / counter-clockwise direction
3. Apply manual pressure to the lever arm to unscrew the prosthetic component.
