DentalPlant Implant Stability Tester – Golden

Description

The DentalPlant Implant Stability Tester is a precision device designed to assess the stability of dental implants through Resonance Frequency Analysis (RFA). It delivers accurate ISQ (Implant Stability Quotient) values, enabling clinicians to make informed decisions on implant loading and monitor osseointegration over time. Compact and user-friendly, the device features a digital display, ergonomic design, and compatibility with a wide range of implant systems. Its non-invasive measurement approach minimizes patient discomfort while offering reliable data for surgical and prosthetic planning. The reusable, autoclavable probe ensures hygienic operation, and the rechargeable battery supports extended clinical use. Ideal for both immediate and delayed loading protocols, this device enhances treatment outcomes by reducing implant failure risks and supporting evidence-based practices. Whether in private practice or academic settings, the DentalPlant Implant Stability Tester is an essential tool for modern implantology, combining clinical efficiency with diagnostic accuracy in every procedure.

Key Features

• ISQ-Based Stability Assessment: Uses Resonance Frequency Analysis (RFA) to assess osseointegration without disturbing the implant site.
• Instant Digital Readings: Provides real-time ISQ values (scale 1–100) for accurate, chairside decision-making.
• Clinical Decision Support: ISQ ≥50 correlates with high implant success rates (up to 97.8%).
• High Accuracy: ±1 ISQ unit precision; may vary up to ±2 units due to implant torque.
• Magnetic Pulse Technology: Emits a 1 ms, ±20 Gauss magnetic pulse for non-contact scanning at 6–8 mm.
• Implant-Bone Insight: ISQ reflects contact surface strength—higher contact area yields higher stability.
• Hygienic & Reusable: Autoclavable probe for sterile and repeated clinical use.
• Universal Compatibility: Works with most implant systems via standard transducers.
• Portable & Ergonomic: Weighs only 100g; easy one-handed operation.
• Rechargeable & Reliable: USB charging (5V DC, 2A) with long-lasting battery.
• Safety Compliant: Meets EN 60601 medical standards; caution advised near pacemakers and sensitive devices.

Specifications

• Charger Output: 5V DC, 2A
• Power Input: AC 100–240V, 5V
• Instrument Weight: 100g
• Charger Safety Level: EN 60601-1-1
• Instrument Safety Level: EN 60601-1 ME Class I, EMC 60601-2 B
• Battery Type: Nickel-hydrogen
• IP Rating: IP20

Accuracy:

• Single Sensor: ±0.5 ISQ units
• General Accuracy (with variation): ±3 ISQ units

Operating Conditions:

• Ambient Temperature: 16°C to 40°C
• Relative Humidity: 10% to 80% RH, non-condensing
• Pressure: 700 hPa to 1060 hPa

Compatible with: DentalPlant SmartPegs, which are mounted onto implant systems using the SmartPeg Mount for accurate implant stability testing.
Transportation Conditions:

• Temperature: -40°C to +70°C
• Relative Humidity: 10% to 95%
• Pressure: 500 hPa to 1060 hPa

Packaging

• 1 × Main Unit
• 1 × Calibrator
• 1 × USB Cable
• 1 × Adapter
• 1 x User Manual
• 1 x Disposable Sleeve
• 1 x SmartPeg Mount
• Note: Click here to buy Compatible Dentalplant SmartPeg Mount


Directions for Use

• Prepare the Implant Site: Ensure the implant has been placed and the surgical site is clean and dry.
• Attach the Transducer Peg: Screw the designated SmartPeg or compatible transducer onto the implant or abutment using the provided tool. Do not overtighten.
• Power On the Device: Switch on the DentalPlant Implant Stability Tester. Ensure the probe is fully charged and functional.

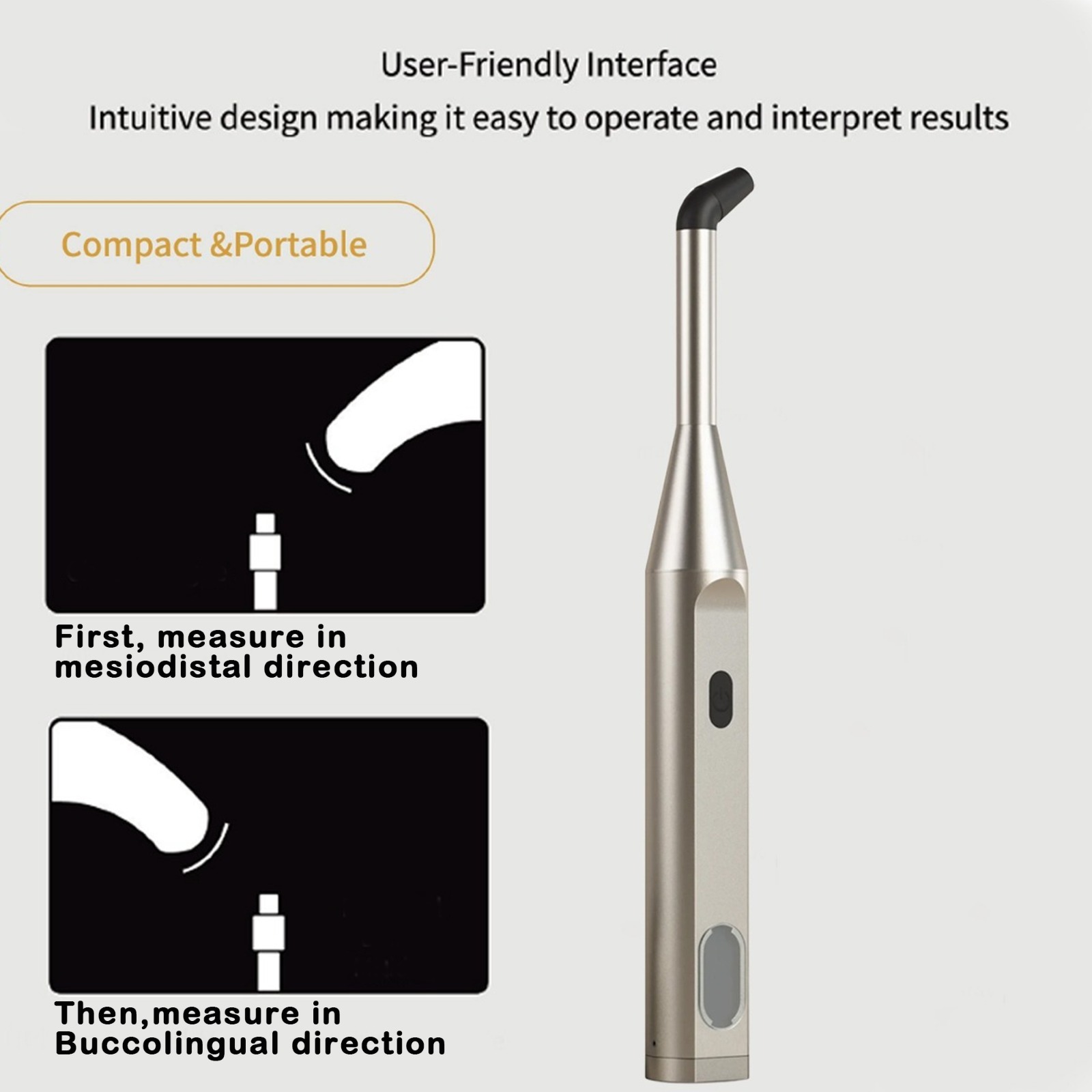

• Position the Probe: Hold the probe close (2–3 mm) to the transducer peg without making physical contact. Maintain a steady hand.
• Take the Measurement: Wait for 1–2 seconds until the ISQ value is displayed on the screen. Repeat the measurement from multiple angles (e.g., buccal, lingual) for accuracy.

Interpret the Results:

• ISQ >70: High stability, suitable for immediate loading
• ISQ 60–69: Moderate stability, consider delayed loading
• ISQ <60: Low stability, delay loading
• Power Off and Sterilize: Turn off the device and autoclave the probe according to the manufacturer’s instructions.
