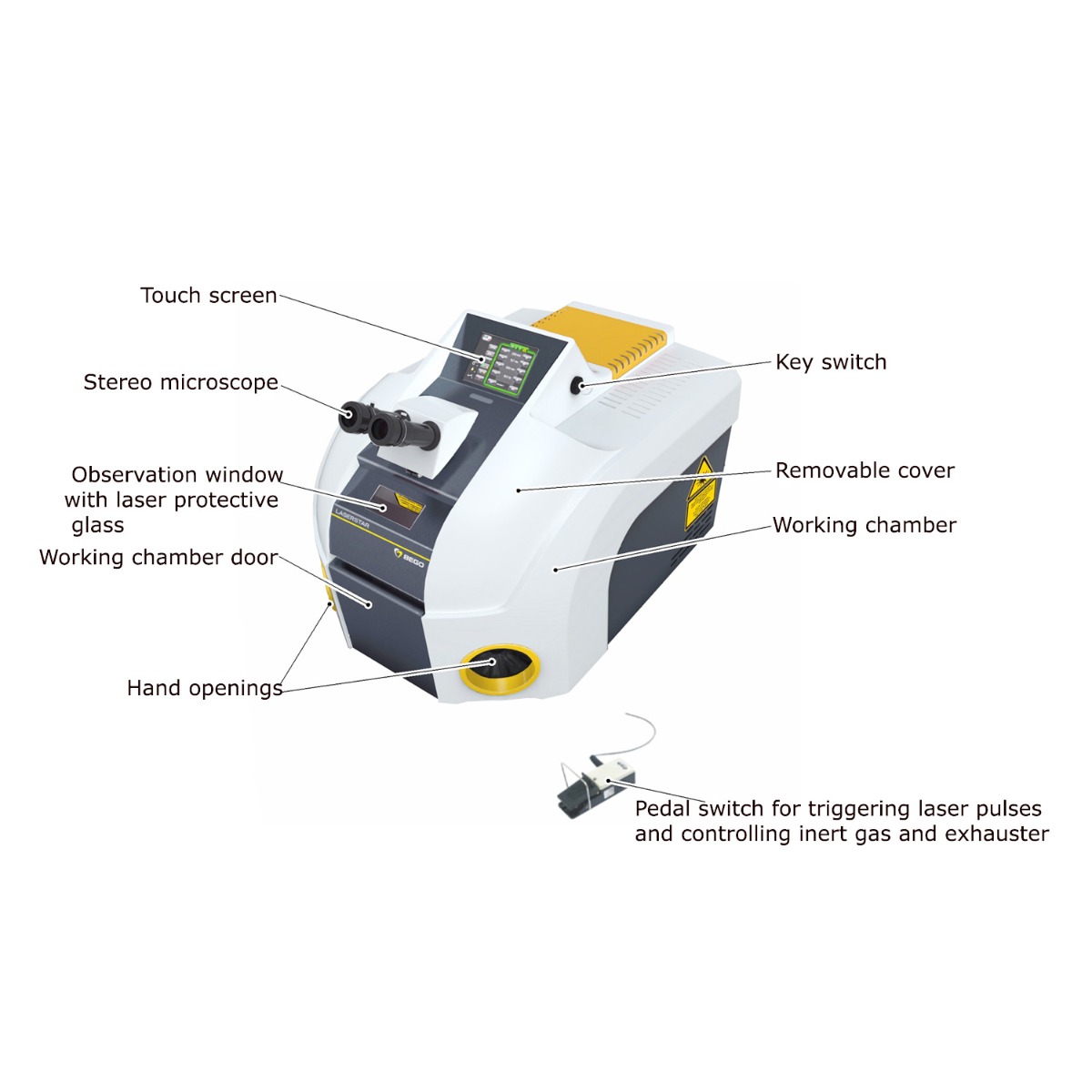

Bego LaserStar T Plus Laser Welder

Description

The Bego LaserStar T Plus Laser Welder represents a cutting-edge solution for precision welding needs, combining compact design with powerful capabilities and user-friendly features. This advanced laser welding unit provides a comprehensive set of specifications that make it a valuable asset for professionals in various industries.

At the core of its performance, the LaserStar T Plus offers precise welding through the control of welding energy, pulse time, charging voltage, and focus adjustment. These parameters enable users to create strong, crack-free joints, ensuring the highest level of precision in their work. The ergonomic design of the unit, along with the strategically positioned controls within the field of vision, allows for fatigue-free operation during long welding sessions.

User-friendly operation is further enhanced by the large color touch display, which boasts intuitive menu navigation. This interface simplifies the setup and control of the welding process, ensuring that even those new to laser welding can quickly become proficient.

The laser welder operates with a Nd: YAG laser type and delivers a pulse energy of 60 Joules, making it suitable for a variety of applications. Its pulse shaping capabilities offer both fixed and variable pulse shapes, with a rate range of 1-50 Hz. Additionally, the inclusion of an inert gas nozzle for argon improves welding quality.

The Bego LaserStar T Plus takes safety seriously, featuring an integrated connection for an external extraction system like the BEGO Ventus. This ensures the efficient removal of welding fumes, maintaining a clean and safe working environment.

Energy efficiency is also a highlight, thanks to the Eco mode which conserves power by deactivating unnecessary components during idle periods, reducing operating costs significantly.

This laser welder is notable for its ability to account for alloy properties in the welding process, further enhancing the quality of the joints. With a 16x magnification microscope featuring a TrueView function, users can focus on their work with unprecedented accuracy.

The LaserStar T Plus is designed for straightforward installation, compatible with 230 VAC/50 Hz, 1 phase, 13 A or 110 VAC/60 Hz, 1 phase, 15 A power sources. Its compact dimensions (505mm x 521mm x 757mm) ensure it fits seamlessly into the workspace.

Key Features

• Precise welding with controllable energy parameters.
• User-friendly design for convenient operation.
• Large color touch display for intuitive control.
• High-strength, stress-free pulse-shaped joints.
• Energy-efficient Eco mode for cost savings.
• External fume extraction for workplace safety.
• Alloy-specific pulse shaping for optimal results.

Specifications

• Laser type: Nd – YAG
• Wavelength: 1064 nm
• Pulse energy: 60 Joule
• Pulse length: 0.3–50 ms
• Rated power: 60 W
• Pulse peak output: max. 8 KW
• Spot diameter: 0.2–2.6 mm
• Pulse frequency: Single pulse, 1–50 Hz
• Pulse shapes: 4 fixed, 12 variable available
• Microscope 4H Jena with TrueView function: 16-fold (visible magnification)
• Target setting: cross line in the microscope
• Welding parameters: can be set with 3 joysticks both inside and outside the welding chamber
• Inert gas nozzles for argon: 1 fix, 1 flexible
• Illumination of the working chamber: LED ring light, adjustable
• Weld smoke extraction: integrated connection for external extraction system e.g. BEGO Ventus
• Water/air cooling with ion filter: integrated
• Connection values: 230 VAC/50 Hz, 1 phase, 13A
• Weight: Approx. 60 kg
• Height: 505 mm
• Width: 521 mm
• Depth: 757 mm

Packaging

• 1 x LaserStar T plus
• 2 x Hand rests, height-adjustable
• 1 x Pressure regulator for argon inert gas
• 1 x Lifting table
• 1 x Ventus filter system for LaserStar T plus

Directions for Use

• Safety First: Always wear appropriate safety gear, including laser safety glasses, to protect your eyes from harmful laser radiation.
• Power Connection: Ensure the laser welder is connected to a power source that matches the specifications provided, either 230 VAC/50 Hz, 1 phase, 13 A, or 110 VAC/60 Hz, 1 phase, 15 A.
• Extraction System: If required, connect the external extraction system, such as the BEGO Ventus, to remove welding fumes efficiently.

Operating the Laser Welder: 4. Power On: Switch on the LaserStar T Plus using the designated power button.

• Eco Mode: Consider using the Eco mode if the unit is not in use to conserve energy. This mode switches off unnecessary components in idle periods, reducing operating costs.
• Laser Welding Set Up: Using the color touch display, select your desired settings for pulse energy, pulse time, charging voltage, focus adjustment, and pulse shaping. These parameters depend on the specific requirements of your welding task.
• Inert Gas: If necessary, configure the inert gas nozzle for argon for enhanced welding quality.
• Microscope: Use the 16x magnification microscope with TrueView function and reticle to focus on your workpiece with precision. Adjust the microscope settings as needed for your specific task.
• Welding Parameters: Adjust welding parameters as required using the controls both inside and outside the welding chamber. This includes pulse rate, pulse shapes, and other settings to match your material and application.
• Safety Check: Ensure all safety interlocks are in place, and no unauthorized personnel are in the vicinity while the laser welder is operating.
• Start Welding: When you’re satisfied with your settings and safety precautions are in place, initiate the welding process. Be cautious and precise during the operation to achieve high-strength, stress-free welds.

Post-Welding

• Power Off: After completing your welding task, power off the LaserStar T Plus to conserve energy and ensure safety.
• Safety Measures: Allow the welding chamber to cool if necessary, and carefully inspect your work for quality and consistency.

Maintenance:

• Regular Maintenance: Follow the manufacturer’s maintenance guidelines, including cleaning the unit, checking and replacing consumables, and ensuring all components are in good working condition.
• Professional Assistance: If you encounter any issues or require servicing, contact a qualified technician or the manufacturer for assistance.

Additional Information

• Country of Origin: Germany
• Manufacturer: Bego
