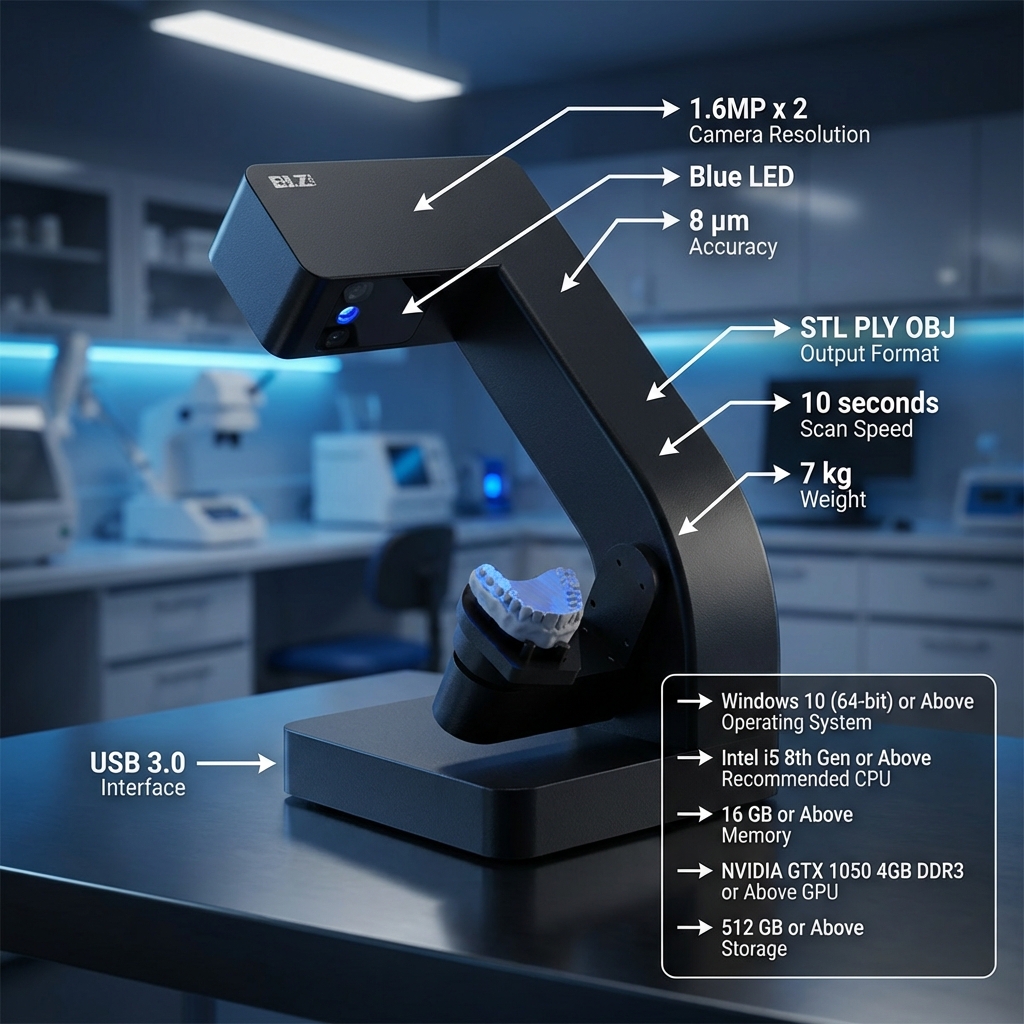

BLZ Dental LS100 3D Lab Scanner

Description

BLZ Dental LS100 3D Lab Scanner is a high-performance laboratory scanner engineered for fast, accurate, and full-color dental model capture. The LS100 delivers true-color textured scans, 8 µm accuracy, and a full-arch scan in approximately 10 seconds, enabling rapid CAD/CAM workflows. It supports impression, tray, die, implant scanbody, RPD and articulator scanning with intelligent auto-alignment and free die placement for streamlined model handling. Native outputs include STL, PLY and OBJ for seamless integration with Exocad and other design software. With USB 3.0 connectivity, LED blue light source, and compact 370 × 280 × 430 mm footprint, the LS100 is designed to boost lab efficiency and preserve fine margin detail for reliable digital restorations

Key Features

• True color textured scanning for realistic models
• High precision 8 µm accuracy for fine margin detection
• Ultra fast full arch scan in about 10 seconds
• All-in-one workflows for impression, model, implant and RPD scanning
• Free die placement with automatic alignment for easier handling
• Tray and impression scanning to remove plaster model step
• Exocad integration for direct CAD compatibility

Specifications

• Camera Resolution: 1.6MP × 2
• Output Format: STL PLY OBJ
• Accuracy: 8 µm
• Scan Speed: 10 seconds
• Interface: USB 3.0
• Light Source: LED blue
• Operating System: Windows 10 (64-bit) or Above
• Recommended CPU: Intel i5 8th Gen or Above
• Memory: 16 GB or Above
• GPU: NVIDIA GTX 1050 4GB DDR3 or Above
• Storage: 512 GB or Above
• Weight: 7 kg
• Size: 370×280×430 mm

Packaging

• 1 x Lab Scanner
• 1 x Power Adapter
• 1 x USB 3.0 Cable
• 1 x User Manual
• 1 x Blue Tack
• 1 x Calibration Board
• 2 x Clamping Plate
• 1 x Multi-Die Plate.
• 1 x Scan Height Adapter
• 1 x All-in-one Plate
• 1 x Impression Fixtures
• 1 x Regular Scan Plate
• 1 x Tie Plate
• 1 x Articulator Transfer Plate A
• 1 x Articulator Transfer Plate B
• 1 x Articulator Transfer Block

Directions for Use

Preparation

• Place the LS100 on a stable, level surface with adequate ventilation
• Connect power supply and USB 3.0 cable to a PC meeting system requirements
• Install and launch the scanner software and confirm Exocad integration if required

Calibration

• Attach the calibration plate or follow on-screen calibration routine as prompted
• Ensure the scanner tip and tray area are clean and free from debris

Scanning Workflow

• Select scan mode: full arch, tray, die, implant or RPD in the software
• Place model, impression or scanbody on the tray using free die placement if needed
• Start scan and monitor live preview, reposition object only if advised
• Use intelligent scan options to capture color texture and gingival separation

Post-scan Processing

• Review mesh and texture, trim unnecessary areas and verify margin clarity
• Export files in STL, PLY or OBJ for CAD or 3D printing workflows

Maintenance

• Keep optical surfaces and tray clean with lint-free cloth and recommended cleaner
• Power down correctly and cover the unit when not in use to prevent dust accumulation
• Schedule periodic software and firmware updates per manufacturer guidance

Additional Information

Country of Origin: PRC (China)

Manufacturer:
BLZ Technology (Wuhan) Co., Ltd.
Building E, East Lake New Technology Development Zone, 430074, Wuhan, China

Packer:
BLZ Technology (Wuhan) Co., Ltd.
Building E, East Lake New Technology Development Zone, 430074, Wuhan, China

Imported & Marketed By:
VASA Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Daboda, Farrukhnagar, Gurugram, Haryana – 122506, India
Phone: +91 72899 99456

Warranty & Service

• Manufacturer/Importer warranty of 18 monthss applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product.
• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
