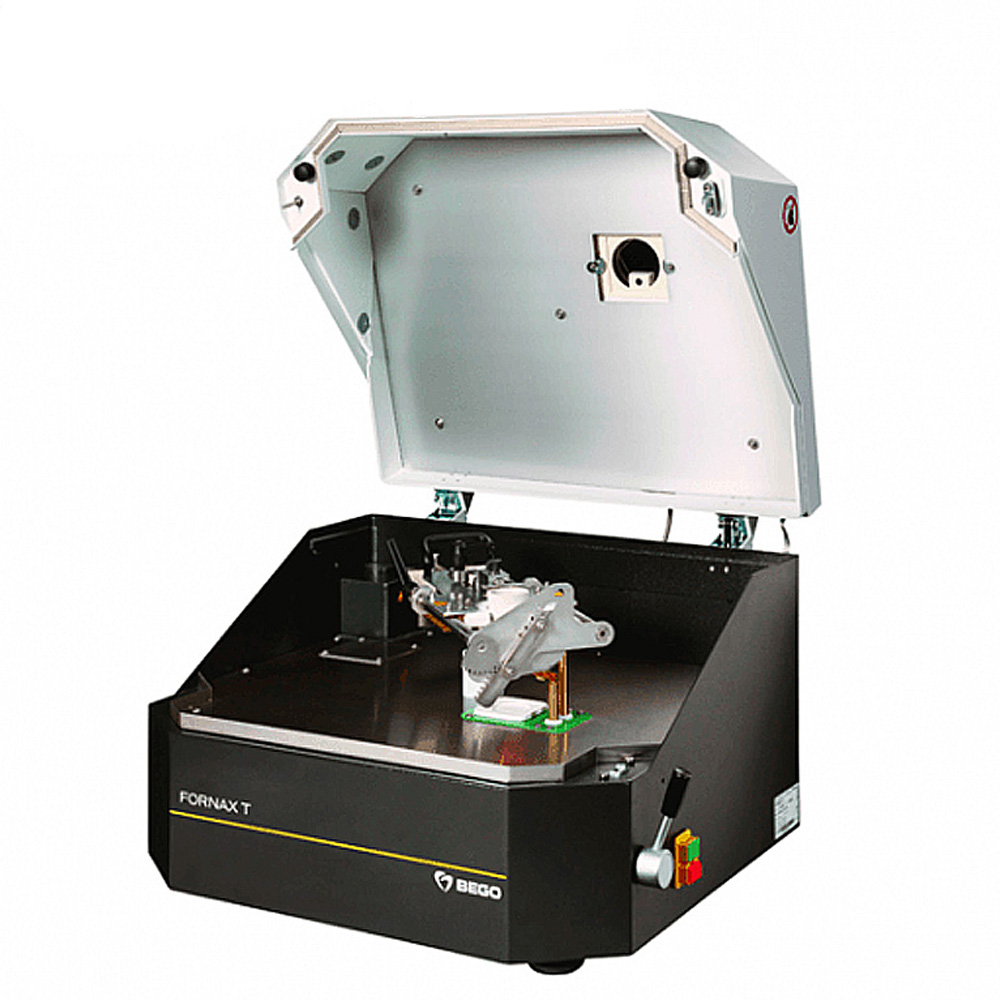

Bego Fornax-T Casting Machine

Description

The Bego Fornax® T Casting Machine is a versatile and high-performance benchtop casting solution designed to meet the diverse needs of dental professionals. This advanced casting machine is equally adept at handling both non-precious and precious metal alloys, making it an ideal choice for a wide range of dental applications, including partial denture casting.

One of the standout features of the Fornax® T is its two adjustable starting speeds, ensuring optimal filling for every cast object. This precision is further enhanced by the high-performance induction heating system, which not only guarantees short melting cycles but also minimizes oxidation, simplifying subsequent finishing processes.

The user-friendly operating panel provides easy access to all major functions and displays essential information on all parameters, streamlining the casting process. With integrated power cooling, the Fornax® T can handle over 50 consecutive casts, even in high-temperature environments with molds made from phosphate-bonded investment materials.

Safety and efficiency are top priorities, and the Fornax® T features an integrated adjustable infrared sensor that ensures the gentle melting of standard precious and non-precious metal alloys, excluding titanium, at casting temperatures of up to 1,550°C. Despite its impressive output capabilities, this machine consumes just 16 amps of power, contributing to energy efficiency.

The Fornax® T offers quick and convenient adjustments for different casting mold sizes, thanks to a simple mechanism, enabling fast and efficient work. Furthermore, its compact dimensions and design result in a small footprint, making it suitable for various dental laboratories.

Key Features

• Dual-speed casting for precise results.
• High-performance induction heating.
• User-friendly control panel.
• Integrated power cooling system.
• Infrared sensor for safe melting.
• Compact and space-efficient design.
• Energy-efficient with low power consumption.

Specifications

• Height: 455 mm
• Height with cover open: 910 mm
• Width: 710 mm with lever
• Depth: 615 mm
• Depth with cover open: 675 mm
• Rated voltage: 230 VAC, 50/60 Hz
• Special voltage: 200 – 240 VAC, 50/60 HZ
• Current consumption: approx. 16 A
• Heating power: 3.6 kVA, 65 kHz
• Weight: 80 kg

Packaging

• 1 x Fornax-T Casting Machine

Directions for Use

Setup and Safety Precautions:

• Ensure the machine is placed on a stable and level surface.
• Verify that the rated voltage matches your electrical supply (230 VAC, 50/60 Hz).
• Make sure the machine is properly grounded for safety.
• Wear appropriate personal protective equipment, including heat-resistant gloves and eye protection.

Power On:

• Switch on the power source and confirm that the machine is connected to a suitable power outlet.

Prepare the Casting Area:

• Ensure that the casting area is clean and free from any debris.
• Have your casting molds and metal alloys ready for the casting process.

Set Casting Parameters:

• Using the user-friendly operating panel, input the required casting parameters. These may include:
• Casting temperature (up to 1,550°C).
• Starting speed (choose between the two adjustable options).
• Any other relevant settings for your specific casting needs.

Load the Metal Alloy:

• Place the appropriate metal alloy into the casting crucible, following safety guidelines for handling hot metals.

Start the Casting Process:

• Close the machine’s cover and ensure it’s securely latched.
• Initiate the casting process using the controls on the operating panel.
• The integrated infrared sensor will safely and gently melt the metal alloy to the specified casting temperature.

Casting:

• Once the metal is melted and the casting parameters are met, the machine will start the casting process.
• Allow the machine to complete the casting cycle.

Cooling and Finishing:

• After casting, the integrated power cooling system helps cool the mold and casting.
• Once cooled, carefully open the machine’s cover, and remove the cast object.

Post-Casting Steps:

• Finish and polish the cast object as needed for your dental application.

Shutdown:

• Turn off the machine and disconnect it from the power source.
• Follow any maintenance or cleaning procedures recommended in the user manual to keep the machine in good working condition.

Safety Precautions:

• Always exercise caution when working with hot metals.
• Ensure proper ventilation in your workspace to dissipate fumes and heat.

Additional Information

• Country of Origin: Germany
• Manufacturer: Bego
