Woodpecker Ultrasonic Scaler Handpiece – HD

Description

The Woodpecker Scaler Handpiece – HD series offers versatility with different models designed to meet various dental needs. The HD-1 model is a non-detachable handpiece, providing a fixed, reliable solution for scaling procedures. On the other hand, the HD-6L and HD-7L models are detachable, allowing for easy tip replacement and maintenance, making them convenient for practices that require flexibility and efficient sterilization processes. Each model in the HD series delivers high-frequency ultrasonic vibrations, ensuring effective removal of plaque and calculus. The ergonomic design across the HD series ensures comfort for the clinician during extended use, while the integrated water spray system aids in cooling and debris removal. Whether you prefer a non-detachable or detachable option, the Woodpecker HD series handpieces are built for durability, efficiency, and high performance in dental scaling and root planing procedures.

Key Features

• High-Frequency Ultrasonic Vibrations: All models deliver high-frequency vibrations for effective removal of plaque and calculus from teeth
• Ergonomic Design: The handpieces are designed for comfort, allowing clinicians to perform extended procedures without discomfort
• Integrated Water Spray System: This feature aids in cooling the handpiece and flushing away debris, enhancing visibility during scaling
• Autoclavable: All models are suitable for sterilization, ensuring hygiene and preventing cross-contamination
• Easy Maintenance: Detachable models allow for quick tip replacement and efficient cleaning processes

Specifications

• Power Source Input: ~190V-230V
• Output Primary Tip Vibration Excursion: 1μm~100μm
• Output Tip Vibration Frequency: 28kHz±3kHz
• Output Half-Excursion Force: 0.1N~2N
• Tip’s Output Power: 3W~20W
• Water Pressure: 0.01MPa~0.5MPa
• Environmental Temperature: +5°C~+40°C
• Relative Humidity: 30%~75%
• Atmospheric Pressure: 70kPa~106kPa
• Autoclavable: Yes, suitable for sterilization

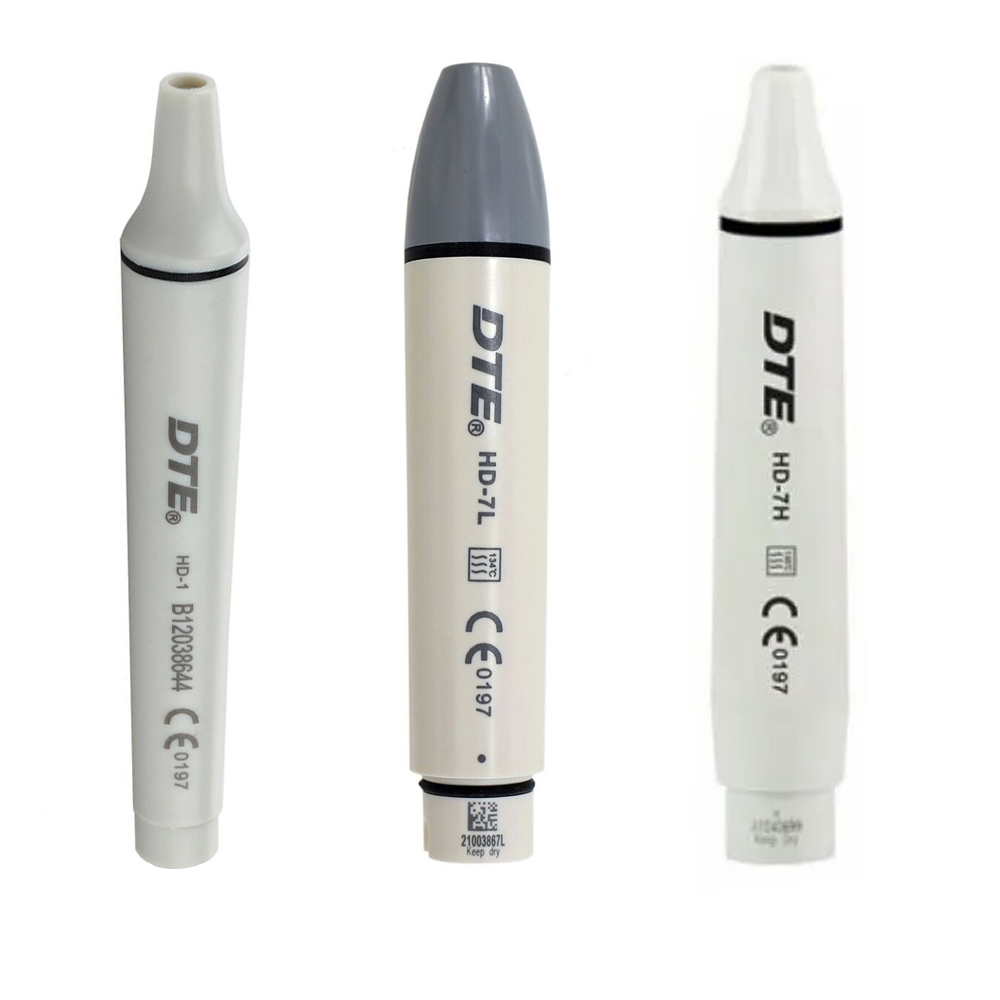

HD-1 Scaler Handpiece

• Type: Non-detachable ultrasonic scaler handpiece
• Compatibility: Woodpecker RTA D1 Ultrasonic Scaler will also fit in DTE D3 Ultrasonic Scaler With Fixed H/P With 5 Tips
• Weight: 124g
• Length: 126mm
• Diameter: 18mm

HD-7L Scaler Handpiece

• Type: Detachable ultrasonic scaler handpiece
• Compatibility: Woodpecker Dte D5 Scaler With Optic and D3 Scaler with Optic
• Weight: 57g
• Length: 111mm
• Diameter: 20.5mm

D3 Ultrasonic Scaler Handpiece (HD-7H)

• Type: Detachable ultrasonic scaler handpiece
• Compatibility: Woodpecker D3 Scaler
• Diamension: 117mmxΦ21mm
• Weight: 57g

Packaging

• 1 x Scaler handpiece
• 1 x Manual

Directions for Use

• Prepare the Handpiece: Ensure that the handpiece is clean and in good working condition before starting.
• Attach the Scaling Tip: Select the appropriate scaling tip for the procedure. Align the tip with the handpiece’s threaded connection. Gently screw the tip clockwise until it is securely attached. Avoid overtightening to prevent damage.
• Connect to the Power Source: Plug the handpiece into the compatible Woodpecker scaler unit, ensuring a secure connection.
• Adjust Settings: Set the power and water flow levels according to the patient’s needs and the procedure type. For the HD-6L and HD-7L Optic model, ensure the LED light is functioning properly.
• Activate the Handpiece: Press the foot pedal to activate the handpiece. Begin scaling by using smooth, gentle motions to remove plaque, tartar, or calculus from the teeth.
• Maintain Proper Technique: Hold the handpiece with a firm, yet relaxed grip. Keep the scaling tip angled correctly against the tooth surface to avoid damaging the enamel or surrounding tissues.
• Rinse and Suction: Continuously use water spray to cool the tip and rinse debris. Utilize suction to keep the working area clear.
• Detach and Clean: After the procedure, carefully unscrew and remove the scaling tip.Clean the handpiece and tip thoroughly to remove any debris or residue.
• Sterilize: Sterilize the handpiece and tips according to the guidelines to maintain hygiene and prevent cross-contamination.

Additional Information

• Country of Origin: PRC
• Manufacturer: Woodpecker
