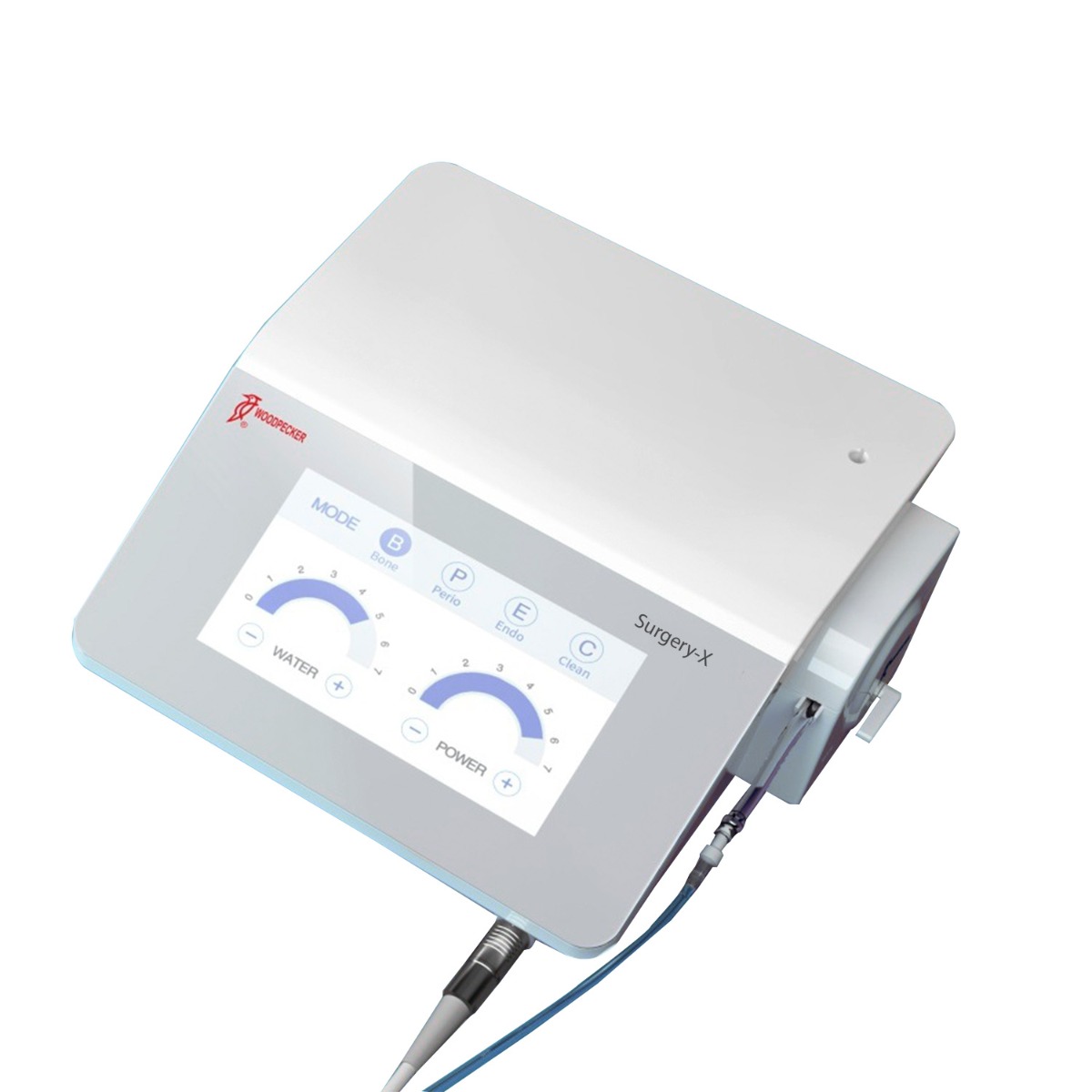

Woodpecker Ultra Surgery X

Description

Introducing the Woodpecker Ultra Surgery X is the third generation of Woodpecker Ultrasurgery which is designed to perform numerous Clinical Applications namely, minimally invasive tooth extraction, Intralift, Sinus Lift, Alveoloplasty, apical cyst extraction, Crown extension, Crest Splitting, etc.
Woodpecker Ultra Surgery X is a piezo surgical unit to perform safe and precise dental osteotomy surgical procedures. The force needed by surgeons to cut hard tissue is much less compared to a drill. One of the standout features of this Ultra Surgery X unit is its unparalleled precision in cutting, guaranteeing no harm to delicate soft tissues such as blood vessels and mucous membranes. Equipped with two LED handpieces featuring the latest sealing technology, this unit offers uncompromised performance throughout surgical interventions. Surgeons can rely on the stability of the handpiece frequency, ensuring consistent and reliable cutting capabilities without any loss of efficiency. Micron cutting capability sets this unit apart, as it significantly contributes to faster healing and reduces post-operative trauma for patients. The Woodpecker Ultra Surgery X unit is accompanied by a comprehensive set of 14 versatile tips, allowing surgeons to perform various osteotomy procedures with ease and precision. These specialized tips provide versatility and adaptability, catering to the unique needs of each surgical intervention. Operating the unit is effortless with its clear 7-inch touchscreen display, designed for easy disinfection and maintenance. Surgeons can conveniently navigate and make precise adjustments during procedures, ensuring a seamless surgical workflow. The multifunctional foot control further enhances the unit’s usability, simplifying operation procedures and maintaining aseptic control. Compact in size with dimensions of 276mm x 267mm x 110mm and weighing just 2.8 kg, this unit is highly portable and easy to handle. Additional features include an intermittent running device that provides a 10-second pause after 60 seconds of operation, adjustable water flow ranging from 25 to 110ml/min, a power output of 70W, a wide mains voltage range of 100-240V, and a cleaning mode that simplifies maintenance between treatments.

Available Working Modes

• Cutting Mode
• Periodontal Mode
• Endodontic Mode
• Cleaning Mode

Key Features

Specifications

• Dimension – 276mm x 267mm x 110mm
• Intermittent Running Device: Intermittent Running with 10s pause after 60s operation
• Water Flow:  25~ 110ml/m
• Power: 70W
• Mains Voltage: 100-240V
• Working Frequency: 24-36KHZ
• Weight: 2.8 kg
• Cleaning mode: After each treatment, using this mode the pump line and handpiece can be cleaned.
• 4 modes: Bone, Perio, Endo, Clean
• Vibration amplitude of tip: 20 to 100µm

The power level divided into 7 classes

• Power 6,7 – very high-density bone
• Power 5,4 – High-density bone
• Power 3,2 – Low-density bon
• Power 1,0 – Very low-density bone

Packaging

• 1 x Main Unit
• 2 x Led Handpieces
• 14 x Tips
• 1 x Torque Wrench
• 2 x Tips Holder
• 1 x Rod
• 1 x Connector
• 1 x Suitcase
• 1 x Torque Wrench
• 1 x Foot Switch
• 1 x Pump Connector
• 1 x Surgical Tray

Directions for Use

• Power Connection: Ensure the mains voltage is within the range of 100-240V. Connect the power cord to the unit and plug it into a suitable power outlet.
• Handpiece Assembly: Attach the LED handpiece to the unit using the latest sealing technology to ensure optimal performance. Ensure a secure connection between the handpiece and the unit.
• Tip Selection: Choose the appropriate tip from the set of 14 versatile tips based on the desired procedure. Select a tip that suits the density of the bone or tissue being operated on.
• Mode Selection: Use the clear 7-inch touchscreen display to select the desired working mode. The available modes are:

• • Cutting Mode: Use this mode for precise cutting of bone during osteotomy procedures.
  • Periodontal Mode: Select this mode for periodontal procedures such as gum surgery.
  • Endodontic Mode: Choose this mode for endodontic procedures like retrograde endo or apicoectomy.
  • Cleaning Mode: Activate this mode after each treatment to clean the pump line and handpiece. This ensures proper hygiene and maintenance.
• Power Level Adjustment: The power level is divided into seven classes. Adjust the power level based on the density of the bone or tissue being operated on. Refer to the power level guide:

• • Power 6,7: Suitable for very high-density bone.
  • Power 5,4: Recommended for high-density bone.
  • Power 3,2: Ideal for low-density bone.
  • Power 1,0: Designed for very low-density bone.
• Water Flow Adjustment: Use the adjustable water flow feature to control the amount of water used during the procedure. The flow can be set between 25 to 110ml/min. Adjust the flow according to the surgical requirements.
• Vibration Amplitude Adjustment: Depending on the desired effect, adjust the vibration amplitude of the tip between 20 to 100µm. This allows for precise and controlled cutting.
• Surgical Procedure: Follow the established surgical protocol for the specific procedure being performed. Use the Ultra Surgery X unit with the selected tip, ensuring precise and gentle cutting while protecting surrounding soft tissues.
• Foot Control: Utilize the multifunctional foot control for aseptic operation. The foot control simplifies operation procedures, allowing for precise adjustments without compromising sterility.
• Intermittent Running: The unit features an intermittent running device that pauses for 10 seconds after 60 seconds of operation. This allows for controlled and efficient surgical interventions.

Additional Information

• Country of Origin: PRC
• Manufacturer: Woodpecker

Warranty & Service

• Manufacturer/Importer warranty of 1 Year as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product
