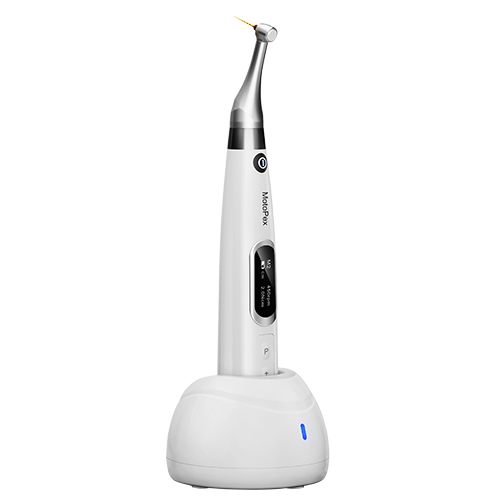

Woodpecker Motopex Brushless Endomotor

Description

MotoPex is a model of the cordless Endo Motor designed specifically for endodontic treatments. It offers a comprehensive set of features and capabilities to assist dental professionals in root canal preparation, enlargement, and accurate measurement of canal length. One of the standout features of MotoPex is its efficient brushless motor, which operates quietly and boasts a long service life. This ensures smooth and reliable performance during procedures, enhancing the overall experience for both the dentist and the patient. Additionally, the cordless design of MotoPex adds to its convenience and portability, allowing for greater flexibility in treatment settings.
The MotoPex model includes a 360-degree rotation contra angle, which enables precise access to root canals from all angles. This versatility is crucial in achieving optimal results in complex endodontic cases. The MotoPex package comprises essential components such as the charging base, motor handpiece, contra-angle, measuring wire, lip hook, file clip, power adapter, and protective silicon cover. These components ensure the smooth functioning and protection of the device, contributing to its durability and reliability.
MotoPex is classified as Class II equipment with an internal power supply, offering protection against electric shock. It offers a wide range of torque and speed settings, enabling dentists to tailor their approach based on specific treatment requirements. Operating within the specified environmental parameters, including temperature, humidity, and atmospheric pressure, guarantees optimal performance.

INDICATION:

• Used for biomechanical tooth preparation of root canals with an in-built apex locator used for measurement of precise working length.

ADVANTAGES:

• Slim Neck.
• More Powerful.
• Precise Rotation.
• Lower Noise.
• Balance Weight.
• Built-in Apex Locator.
• Integrated Length Determination makes Endodontic treatment safer and more efficient.
• Real-Time Display of file Location in the Canal.
• 360 Degree Rotatable Contra Angle.
• Front Centre of Gravity.

Mode

EAL Mode: This mode is used for canal measurement. The motor handpiece does not rotate in this mode.
CW Mode: In this mode, the motor handpiece rotates forward 360° in a clockwise direction.
CCW Mode: This mode is used for the counterclockwise rotation of the motor handpiece. It is typically used to inject calcium hydroxide and other mendicants.
REC Mode: This mode is for reciprocating motion. The forward and reverse angles can be adjusted between 20° and 340°. It is used with reciprocating files like DENTSPLY WAVEONE or WOODPECKER W3-ONE.
ATR Mode: ATR stands for Adaptive Torque Reverse function. In this mode, the motor handpiece rotates continuously forward with a set angle between 120° and 340°. When the file load exceeds the set torque limit, the file will rotate alternately at the set angle. It is used with various torque and speed settings.

Key Features

• Efficient brushless motor, low noise, long service life.
• Cordless portable endo motor with combined length determination.
• 360 degrees rotation of contra-angle.
• Real-time feedback technology and dynamic torque control to prevent file separation.

Specifications

Environment temperature: +5℃ ~ +40℃
Relative humidity: 30% ~ 75%
Atmospheric pressure: 70kPa ~ 106kPa
Speed rang: 100rpm~1200rpm
Battery: Lithium battery in motor handpiece: 3.7V /2000mAh
Power adapter: Input: ~100V-240V 50Hz/60Hz 400mA Max
Torque rang: 0.4Ncm-5.0Ncm（4mNm ~ 50mNm）

Packaging

• 1 x Endo motor Unit
• 1 x Charging Unit
• 1 x Power Adapter
• Instruction manual

Directions for Use

Select the appropriate mode: Depending on the specific task you need to perform, choose the mode that best suits your requirements. Refer to the previous response for an overview of the different modes available.
Prepare the handpiece: Attach the appropriate endodontic handpiece to the motor. Ensure it is securely connected and properly aligned.
Set the speed and torque: Adjust the speed and torque settings according to the specific procedure and file system being used. These settings may vary based on the manufacturer’s recommendations and the requirements of the case.
Perform canal measurement: If you need to measure the canal, select the EAL (Electronic Apex Locator) mode. The handpiece will not rotate in this mode. Follow the instructions for using the apex locator integrated into the endo motor or use a separate apex locator if required.
Rotary instrumentation: For rotary instrumentation using files like Waldent Wal-flex Gold Rotary Files -Refills or WOODPECKER W3-Pro, select the CW (clockwise) mode. Ensure the file is properly inserted into the canal and gently advance it while the handpiece rotates in a clockwise direction. Follow the recommended speed and torque settings for the specific file system.
Medicament placement: If you need to place medicaments like calcium hydroxide into the canal, select the CCW (counterclockwise) mode. The handpiece will rotate in a counterclockwise direction. Follow the instructions provided by the manufacturer or your endodontic protocol for accurate placement.
Reciprocating motion: For reciprocating motion using files like DENTSPLY WAVEONE or WOODPECKER W3-ONE, select the REC mode.
Adaptive Torque Reverse (ATR) function: If you want continuous forward rotation with alternating torque reversal, select the ATR mode. Adjust the angle and torque settings based on your requirements and the file system being used.

Additional Information

• Country of Origin: PRC
• Manufacturer: Woodpecker

Warranty & Service

• Manufacturer/Importer warranty of 1 Year as applicable for this product.
• (NO WARRANTY on UV Light, Glass or other internal electrical parts)
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
