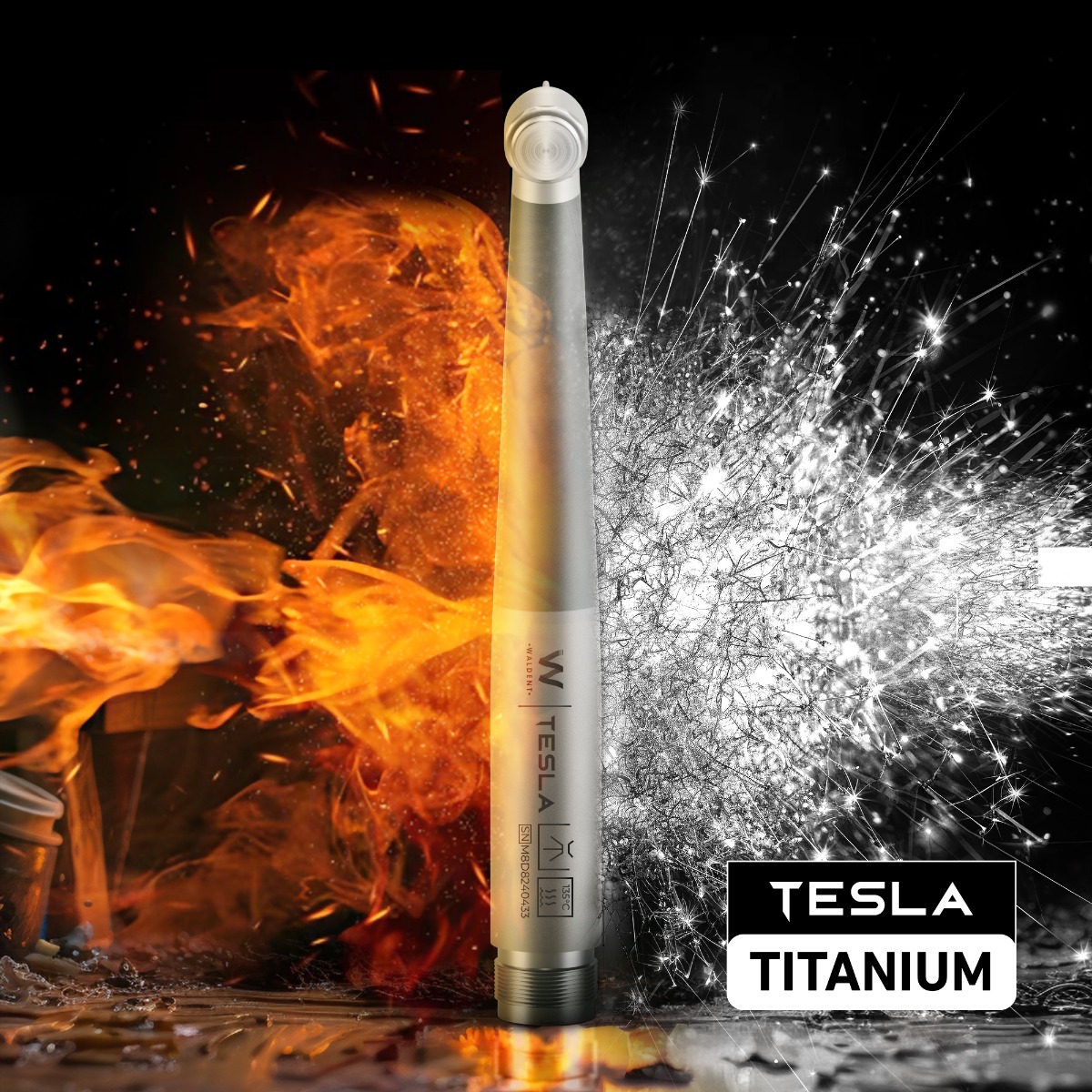

Waldent Tesla Airotor Standard Head (W-160)

Description

Key Features

• Exemplifies precision at high speeds.
• High-quality titanium for exceptional strength and longevity.
• Designed with a versatile standard head configuration to adapt to various procedures.
• Minimizes chair time, enhancing patient satisfaction.
• Ergonomically designed for optimal user comfort and precise control.
• Whisper-Quiet Operation for patient comfort.
• Quattro Water Spray system for efficient cooling.
• Feather-light design for improved handling.
• Autoclavable components for hassle-free sterilization and hygiene.

Specifications

• Material: Titanium
• Hose Connection type: ISO 9168 Type2 ( Borden 2Hole )
• Max. Rotation Speed: 380000 – 480000rpm
• Bur type: ISO 1797-1 ∅1.6mm Standard Bur ( Max.21mm / Chucking Length 10.2mm
• Drive Air Pressure: 0.25-028Mpa (2.5-2.8Kgf/cm²)
• Air Consumption: 40±5NL/min(0.25MPa)
• Water pressure: 0.05-0.2MPa(0.5-20Kgf/cm²)
• Use environment: Temperature: 0°C~+40°C ( No condensation ) Humidity: 30%~75%
• Head Size: Ø10 mm X H12mm
• Total Length: 12.2cm

Packaging

• 1 x Waldent Tesla Airotor Standard Head (W-160)
• 1 x Head cap wrench
• 1 x Cleaning wire
• 1 x Manual

Directions for Use

Preparation:

• Ensure the handpiece and associated equipment are clean and sterilized.
• Select the appropriate bur or attachment for the specific dental procedure.

Connecting the Handpiece:

• Attach the handpiece to the dental unit’s hose, aligning the connection points.
• Secure it by tightening the hose nut.

Bur Insertion:

• Depress the push button on the handpiece to release the chuck.
• Insert the chosen bur or attachment into the chuck until it clicks securely in place.
• Release the push button to lock the bur in position.

Sterilization Check:

• Verify that the handpiece and bur are properly sterilized before use.

Procedures:

• Begin the dental procedure by carefully guiding the handpiece to the treatment area.
• Utilize the high-speed performance of the handpiece for efficient tooth preparation, cavity restoration, crown placement, or other procedures as required.
• Maintain precise control and minimize hand and wrist fatigue due to the ergonomic design.

Monitoring:

• Continuously monitor patient comfort, and adjust the handpiece settings or technique as necessary to ensure a positive experience.

Post-Procedure:

• After completing the procedure, turn off the handpiece and detach it from the hose.
• Properly clean and sterilize the handpiece and attachments for future use.

Additional Information

• Country of Origin: Made in PRC

Warranty & Service

• Manufacturer’s warranty of 2 year is applicable for this airotor.
• Service and warranty are handled at the manufacturer’s discretion.
• Dentalkart will be liable to replace any faulty or unsatisfactory products.
• Dentalkart will provide guaranteed assistance to the customer in registering a request to get the product replaced or serviced.
