Waldent Spectra Airotor -Standard (W-132)

Description

Waldent Spectra Airotor (Aluminium Body) are designed to facilitate user-comfortability for the professional and a significant reduction in procedural times for their patients. The especially designed head size and customized light positioning contributes to a specialized level of visibility and maneuverability for users.

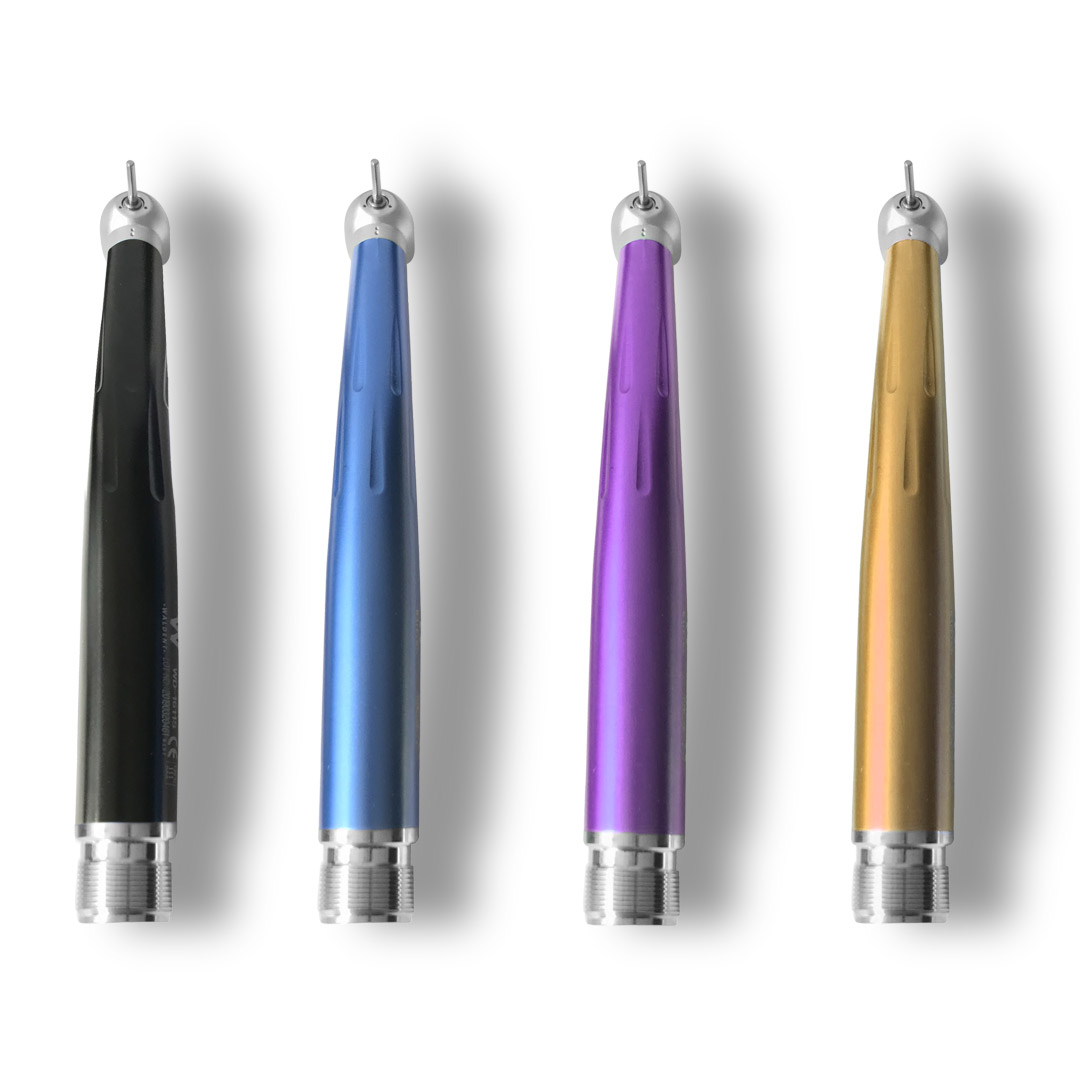

Available Colors:

• Blue
• Black
• Golden
• Purple.

Key Features

Features :

1) Design

• Exclusive Design
• Push Button Type
• Sleek Body
• Better Grip
• Excellent Texture

2) Bearing

• Ceramic ball bearing – long life span

3) Material

• Made of Aluminium alloy – Light weighted

4) Speed

• High speed handpiece
• Extra-torque & superior cutting efficiency
• Optimal power

5) Water Spray

• Optimum cooling of the treatment site with water spray

6) Connection

• Two hole Bordon Chair connection

7) Corrosion Resistant

8) Autoclavable at 135 degree celcius

Specifications

TECHNICAL SPECIFICATIONS:

• Rotation speed	More than 320,000 rpm
  Working air pressure	0.22-0.25Mpa
  Cooling water	Single Water Spray
  Bur applicable size	1.590-1.600 mm ISO standarised burs
  Head standard	Standard head / Supertorque
  Chuck bur	Push Button
  Bearing	Ceramic Bearing
  Available connection	2 Holes Bordon Connection
  Noise	Less than 65 dB
  Packing	Plastic box for unit packing
  Disinfection	Autoclavable to 135 ℃
  Brand	Waldent
  Compatible model	Spectra

Packaging

• 1 x Airotor
• 1 x Key
• Instructional manual

Directions for Use

Preparation:

• Ensure both the Airotor and Cartridge are properly sterilized before use. Follow recommended sterilization procedures.
• Check that all components, including the Airotor, Cartridge, and bur, are in good condition.

Connection:

• Connect the Airotor to the dental unit’s air supply system. Adjust the air pressure within the recommended range (0.28-0.30 MPa) for optimal performance.
• Insert the Cartridge into the Airotor, ensuring a secure fit.

Bur Insertion:

• Choose an appropriate bur for the dental procedure.
• Insert the bur into the Cartridge, ensuring it is properly seated and tightened using the push-button mechanism.

Power On:

• Turn on the Airotor, following the specific instructions for your model.
• Activate any additional features such as the water spray system if available.

Adjust Settings:

• Adjust the rotation speed of the Airotor to the desired level, taking advantage of its high-speed capabilities for efficient dental procedures.

Procedure:

• Begin the dental procedure with controlled and precise movements, allowing the bur to perform the work.
• Be cautious not to apply excessive pressure, and ensure the bur is functioning smoothly.

Cooling:

• If the Airotor has a water spray system, ensure it is activated to cool the treatment site during the procedure.

Power Off and Cleaning:

• Turn off the Airotor after completing the procedure.
• Disconnect the Airotor and Cartridge, and clean them thoroughly following the recommended cleaning and sterilization procedures.

Additional Information

• Country of Origin: Made in PRC

Warranty & Service

• Manufacturer/Importer warranty of 3 months as applicable for this product
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer €™s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be
