Waldent Solenoid Valve For Max Piezo 2 Ultrasonic Scaler

Description

Waldent Solenoid Valve for Max Piezo 2 Ultrasonic Scaler is a precision-engineered replacement component designed specifically for the Max Piezo 2 Ultrasonic Scaler. Operating at DC 24V–30V, this electromagnetic valve ensures accurate and reliable water flow regulation to the handpiece during scaling procedures, delivering consistent coolant supply for optimal clinical performance. Constructed with a normally closed (NC) mechanism, the valve remains sealed at rest and activates instantly upon power input, preventing unintended water leakage between uses. Its durable coil and high-grade sealing plunger offer long-lasting performance under regular clinical demands. Ideal for replacing faulty valves causing no water flow, continuous dripping, or intermittent water delivery, this genuine spare part restores your scaler to full working condition quickly and efficiently. Compatible exclusively with the Waldent Max Piezo 2 model, it ensures a perfect fit and seamless integration with the unit’s existing PCB and water circuit.

Key Features

• Designed exclusively for Waldent Max Piezo 2 Ultrasonic Scaler
• Normally Closed (NC) design — no leakage at rest
• Instant activation for consistent water flow
• Durable electromagnetic coil (20–40Ω)
• High-quality sealing plunger for leak-proof operation
• Easy drop-in replacement

Specifications

• Compatible Model: Max Piezo 2 Ultrasonic Scaler
• Component Type: Solenoid Valve
• Operating Voltage: DC 24V – 30V
• Valve Type: Normally Closed (NC)
• Coil Resistance: 20 – 40Ω
• Function: Water Flow Regulation
• Connection Type: 2-Way

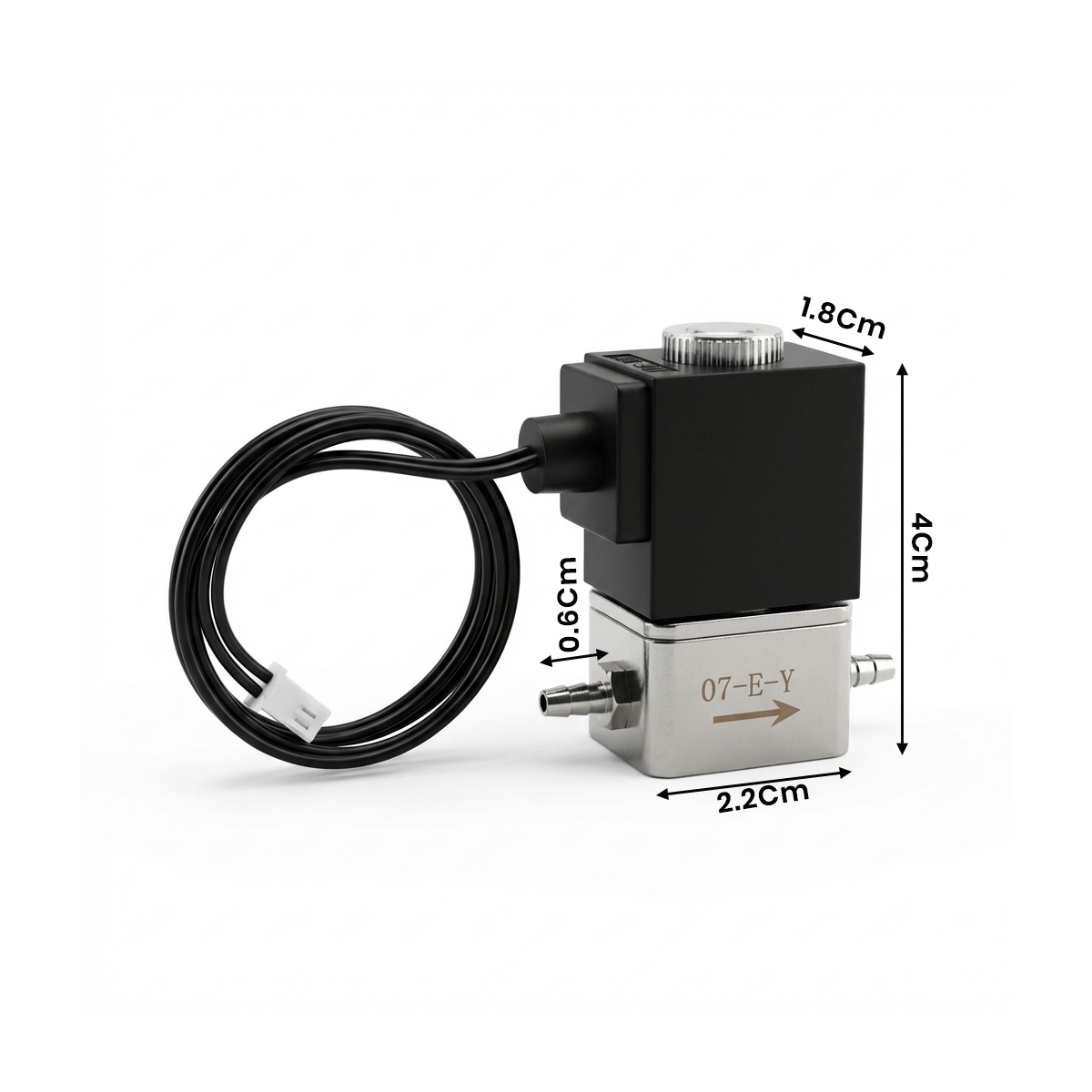

• Length : 4cm
• Width : 3cm
• Part Type: Genuine Spare Part

Packaging

• 1 x Solenoid Valve For Max Piezo 2 Ultrasonic Scaler

Note: – Compatible with – Max Piezo 2 Ultrasonic Scaler

Directions for Use

• Power Off
  Switch off the scaler and unplug it from the power source. Drain the water bottle completely.
• Open the Casing
  Unscrew the back/side panel of the Max Piezo 2 unit and carefully remove the outer casing.
• Locate the Solenoid Valve
  Identify the solenoid valve connected between the water inlet tubing and the PCB wiring harness.

Disconnect the Old Valve

• Unplug the electrical connectors from the valve terminals
• Use a nose plier to gently loosen and detach the inlet and outlet water tubes

Install the New Valve

• Mount the new solenoid valve in the same position
• Reconnect the inlet and outlet water tubes securely
• Plug in the electrical connectors ensuring correct polarity

Check Connections
Use a multimeter to verify:

• Voltage at terminals: ~24V DC during operation
• Coil resistance: 20–40Ω

Reassemble & Test

• Refit the outer casing and tighten the screws
• Refill the water bottle and power on the unit
• Run the scaler and confirm smooth water flow with no leakage

Additional Information

• Country of Origin: Made in PRC

Warranty & Service

• Warranty is not applicable for this product.
