Waldent Ai Implant Touch Implant Motor With 1 Fiberoptic Implant Handpiece

Description

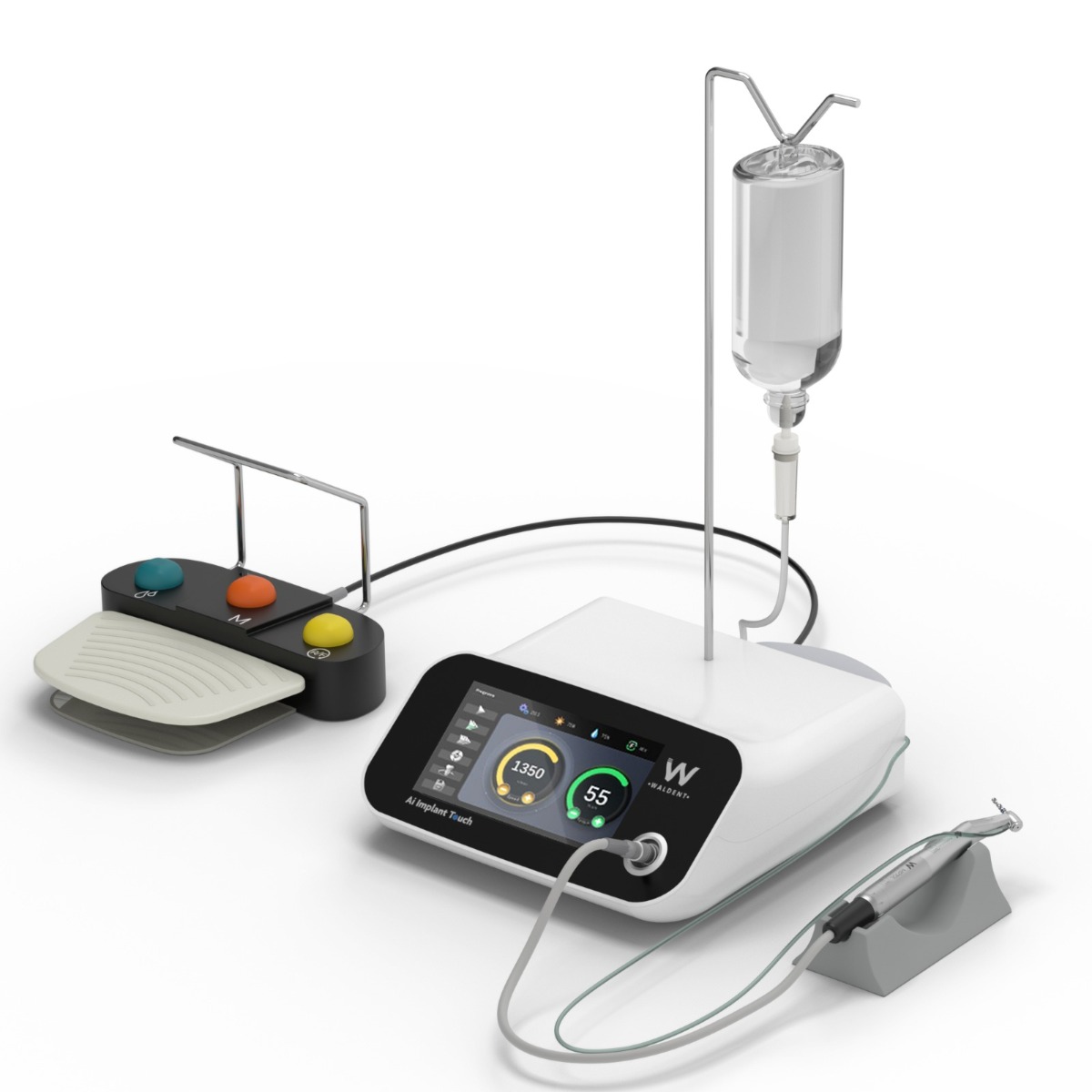

Waldent Ai Implant Touch Implant Motor

The Waldent Ai Implant Touch Implant Motor is a state-of-the-art device designed to assist dental professionals in performing precise and efficient implant procedures. It offers a wide range of features, including customizable settings for speed and torque, making it suitable for various implant systems. The motor provides real-time feedback, ensuring accuracy during surgery. Its ergonomic design enhances user comfort and control. With a comprehensive display and intuitive interface, it simplifies the operation, allowing dentists to focus on the patient. The Ai Implant Touch Implant Motor is a reliable and indispensable tool for implantologists, streamlining the implantation process and delivering optimal results.

Indication:

• The power system of this product is applicable to the treatment of tooth hard tissue in dental surgery, implantation, and maxillofacial surgery.In oral implant treatment, it is used for drilling and tapping of alveolar bone and installation of the implant.

Key Features

• Ai Calibration: The system offers AI calibration, ensuring precise and accurate performance during dental procedures. This feature enhances the system’s reliability and precision.
• Real-Time Display: The 7-inch color capacitive touch screen provides real-time feedback and data display, allowing dental professionals to monitor and adjust parameters as needed during procedures.
• Precise Torque Calibration: The system offers precise torque calibration, allowing for accurate control of the torque applied during dental procedures, which is crucial for various tasks, including implant placement.
• Program Modes: This system offers 5 program modes, allowing compatibility with 7 different speed ratio contra-angles. Surgical parameters can be automatically saved for convenience.
• High-Performance Touch Screen: The 7-inch color capacitive touch screen is highly responsive, providing a user-friendly interface. It emits light without visual angle limitations, and brightness is adjustable.
• Brushless Motor: The brushless motor operates within a wide speed range, from 5 to 40,000 rpm. It provides high torque, making it suitable for implant procedures, repairs, tooth extractions, and orthopedic surgery.
• Maximum Torque: With a maximum torque of 70N.cm, this system offers powerful torque output, facilitating efficient bone cutting.
• Stability and Cooling: The system ensures unmatched stability, prevents overheating, and operates silently. An intelligent cooling system, along with inner and external channel cooling and washing, maintains the system’s performance.
• Multi-Functional Foot Pedal: The system features an easy-to-use and flexible foot pedal, enabling various operating functions.

Specifications

• Machine Model: AI Implant Touch
• Voltage: AC 100~230 V
• Frequency: 50 Hz
  Allowable Voltage Fluctuation: ±10%
• Maximum Power Consumption: 340 VA
• Rated Voltage Speed Range: 100~40000 rpm (±10%)
• Rated Voltage Torque Range: 0∼70 N.cm (±10%)
• Cooling Water Flow: 0%,25%,50%,75%,100%, 5 Gear Adjustable
• Operation Mode: S3 (3 min/10 min)
• Dimension (mm) (W*D*H): 300x280x128
• Weight (Including Motor) (kg): 5.4

Packaging

Waldent Ai Implant Touch Implant Motor:

• 1 x Control Unit
• 1 x Foot Pedal
• 1 x Foot Pedal Cable
• 1 x Foot Pedal Handle
• 1 x Motor With Cable (LED)
• 3 x Disposable Infusion Tubing
• 1 x Water Bottle Bracket
• 1 x 20:1 Fiber Optic Implant Handpiece
• 1 x Motor Holder
• 1 x Power Cord
• 1 x Instruction Manual
• 1 x Quality Certificate
• 1 x Packaging List

Directions for Use

Preparation:

• Ensure the system is properly set up and connected to the required components, including the fiber optic LED contra angle.
• Power on the system and allow it to initialize.

Program Selection:

• Use the touch screen to select the desired program mode based on the specific dental procedure.

Speed and Torque Adjustment:

• Use the touch screen to set the desired speed and torque values based on the procedure’s requirements.

Fiber Optic Contra Angle Attachment:

• Attach the 20:1 fiber optic LED contra angle to the handpiece.

Foot Pedal Control:

• Use the multi-functional foot pedal to control the operation of the system.
• Gently press the foot pedal to start and stop the motor.
• Adjust the foot pedal to control speed and torque as needed during the procedure.

Procedure Execution:

• Perform the dental implant, surgery, or other dental procedure using the contra-angle and the motor.
• The system’s intelligent cooling system will help maintain optimal performance during the procedure.

Monitoring and Adjustments:

• Continuously monitor the procedure’s progress on the touch screen.
• Make any necessary adjustments to speed, torque, or other settings during the procedure using the foot pedal or touch screen.

Completion:

• Once the procedure is complete, power off the system and disconnect the components for sterilization and storage.

Cleaning and Maintenance:

• Follow guidelines for cleaning and maintaining the system for long-lasting performance.

Additional Information

• Country of Origin: Made in PRC
