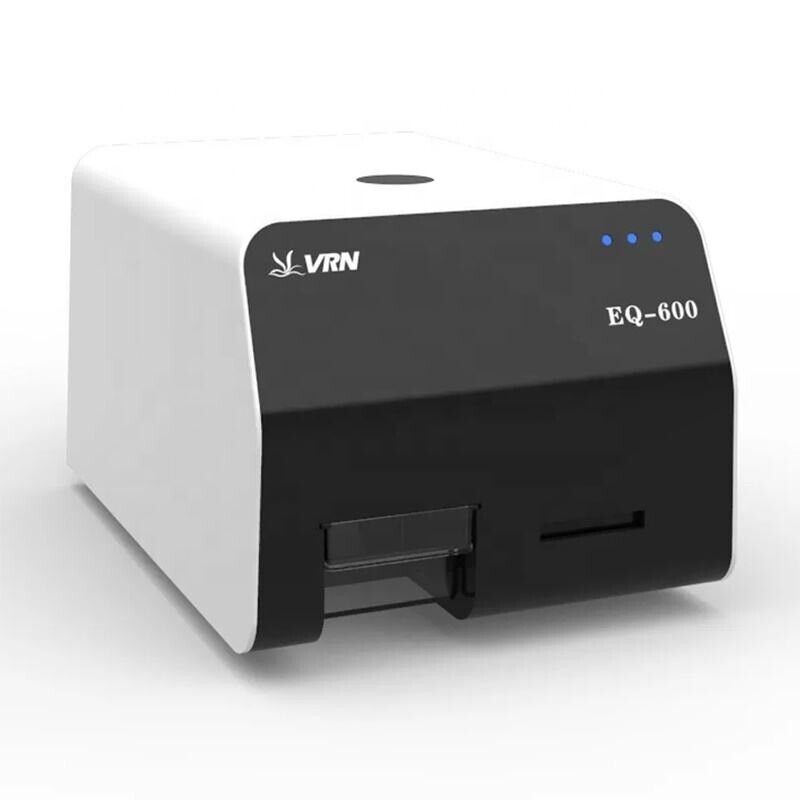

VRN Phosphor Plate scanner EQ-600

Description

The VRN Phosphor Plate scanner EQ-600 is a imaging solution tailored for dental applications, boasting versatility and precision in capturing latent image information stored in phosphor plates. With support for multiple plate sizes (0, 1, 2, 3), it meets diagnostic needs across age groups. Operating seamlessly on Windows platforms (XP to 10), this scanner leverages APS CMOS detector technology and UT-Dental software for efficient image processing. Its 35µm selectable pixel size ensures high-resolution scans, while the 16-bit data capture translates to 65,536 grey levels for nuanced imaging.

The scanner’s ergonomic design, compact dimensions (305211182mm), and lightweight build (6kg) facilitate ease of use and portability. Its USB 2.0/Ethernet interface allows rapid data transfer (480 Mbps/100Mbps). The automated eraser feature streamlines workflow, and the quick 15-second readout time enhances productivity. Engineered for optimal performance in temperatures ranging from 10 to 40°C and humidity levels up to 93%, the EQ-600 delivers consistent and accurate results for dental professionals, making it a reliable imaging companion for clinics and practices.

Key Features

• Supports multiple image plate sizes (0, 1, 2, 3) catering to various diagnostic needs for children and adults.
• Utilizes APS CMOS detector technology for high-quality image capture and analysis.
• Compatible with Windows XP, Windows 7, Windows 8, and Windows 10 operating systems for versatile usage.
• Offers a selectable pixel size of 35µm for detailed and precise image scanning.
• Includes UT-Dental software for efficient image processing, enhancement, and analysis.
• Equipped with an embedded auto-eraser for automated erasing of image plates after scanning.
• Compact and lightweight design (305211182mm, 6 kg) for easy handling and portability in clinical settings.

Specifications

• Supported IP Sizes: Size 0: 22x31mm <br> Size 1: 24x40mm <br> Size 2: 31x41mm <br> Size 3: 27x54mm
• System Configuration: Windows XP, Windows 7, Windows 8, Windows 10
• Plate Sizes Included: 0, 1, 2, 3 (Suitable for children and adults)
• Selectable Pixel Size: 35µm
• Detector Technology: APS CMOS
• Software: UT-Dental
• Active Area: 32*54mm
• Mechanical Size: 34*55mm
• Readout Time: 15 seconds
• Data Capture: 16-Bits (65,536 grey levels)
• Eraser: Embedded (auto)
• Power: 100-240V(AC) 50/60Hz 1.5A
• Working Temperature: 10 to 40°C
• Storage Temperature: -25 to +60°C
• Humidity (non-condensing): 10 to 93% R.H.

Packaging

• 1 x Main Unit
• 1 x Usb flash drive
• 1 x power adaptor
• 1 x Power line
• 1 x Usb cable
• 1 x Intraoral image plate (2#)
• 1 x protecting bag 2#
• 1 X Instruction manual

Directions for Use

Here are the directions for using the VRN Phosphor Plate Scanner EQ-600:

Preparation:

• Ensure the scanner is placed on a stable surface near a power source.
• Connect the scanner to your computer using the provided USB cable.
• Turn on the power switch located on the rear panel of the scanner.
• Install the necessary software on your computer following the manufacturer’s instructions.

Loading Image Plates:

• Open the image plate tray located at the front of the scanner.
• Place the image plate (size 0, 1, 2, or 3) with the photosensitive surface facing up.

Scanning Process:

• Launch the scanning program on your computer.
• Follow the software’s instructions to select the desired scanning parameters (e.g., pixel size, resolution).
• Start the scanning process, and the scanner will read the latent image information from the image plate.

Image Processing:

• Once the scanning is complete, the software will process the scanned image.
• Use the software’s tools to enhance, analyze, or annotate the image as needed.
• Save the processed image to your computer or a connected storage device.

Erasing Image Plates:

• After scanning, the scanner will automatically erase the image plate, making it ready for reuse.
• Ensure the image plate tray is empty before starting a new scanning session.

Shutdown:

• After use, turn off the power switch on the rear panel of the scanner.
• Safely disconnect the USB cable from both the scanner and the computer.

Maintenance:

• Regularly clean the scanner’s exterior with a soft, dry cloth to remove dust and debris.
• Avoid exposing the scanner to extreme temperatures, moisture, or direct sunlight.
