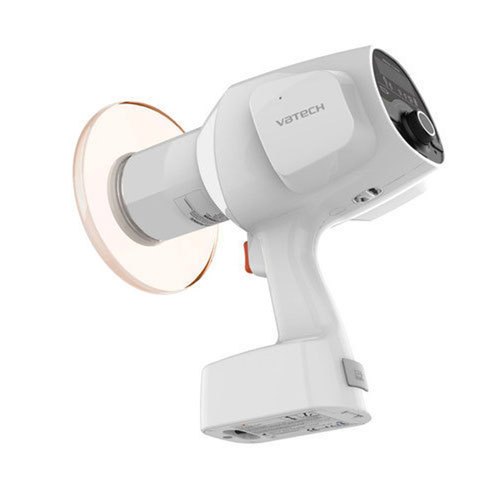

Vatech EZRay Air Plus Portable X-Ray Machine

Description

Vatech EZRay Air Plus is a cutting-edge portable X-ray machine designed specifically for dental applications. Weighing only 1.8 kg, it’s the lightest in its class, boasting an ergonomic design for comfortable handling and smart positioning features for precise imaging. Its smart dial interface ensures intuitive operation, reducing user stress and preventing wrist pain during prolonged use. Equipped with advanced Carbon Nano Technology, it delivers accurate images with minimized motion artifacts, saving time and improving diagnostic confidence. With fixed voltage and current settings, along with an exposure time range of 0.05 – 1.00 sec, it offers flexibility while ensuring consistent performance. The replaceable battery ensures continuous operation, while optional accessories like the backscatter shield and carry case enhance usability and safety.

Key Features

Specifications

TECHNICAL SPECIFICATIONS

Packaging

• 1 x Portable x-ray machine

NOTE: Round Shield will be bought separately as accessory & will not be provided with this product.

Directions for Use

Preparation:

• Ensure that the machine is placed on a stable surface.
• Connect the machine to a power source using the provided power cord or ensure the battery is adequately charged.

Positioning:

• Position the patient according to the specific imaging requirements.
• Place the machine at the appropriate distance from the target area, maintaining a source-to-skin distance of 200 mm.

Settings Adjustment:

• Use the smart dial interface to select the desired exposure time, within the range of 0.05 – 1.00 seconds.
• Verify that the voltage and current settings are appropriate for the imaging procedure.

Safety Precautions:

• Ensure that all personnel are clear of the X-ray beam path.
• Wear appropriate personal protective equipment (PPE), including lead aprons and thyroid collars, if necessary.

Image Capture:

• With the patient in position and settings adjusted, activate the X-ray exposure by pressing the designated button or trigger.
• Remain clear of the X-ray beam during exposure.

Image Review:

• After exposure, review the captured image for quality and diagnostic suitability.
• If necessary, repeat the imaging process for additional views or adjustments.

Post-Exposure Procedures:

• Turn off the machine and disconnect it from the power source if no further imaging is required.
• Ensure proper storage of the machine and any accessories.

Maintenance:

• Periodically inspect the machine for any signs of damage or malfunction.

Optional Accessories:

• Utilize optional accessories such as the back scatter shield or carry case as needed for enhanced usability and safety.

Training and Compliance:

• Ensure that all personnel operating the machine are properly trained and adhere to radiation safety regulations and guidelines.

Additional Information

Country of Origin: South Korea

Manufacturer:
Vatech Co., Ltd.
13, Samsung 1-ro 2-gil, Hwaseong-si, Gyeonggi-do – 18449, South Korea

Packer:
Vatech Co., Ltd.
13, Samsung 1-ro 2-gil, Hwaseong-si, Gyeonggi-do – 18449, South Korea

Marketed By:
Vatech India Pvt. Ltd.
2nd Floor, S.M. Plaza, 1016/2, Opposite CISF Bypass Road, Mahipalpur Extension, Mahipalpur, New Delhi – 110037, India
Phone: +91 72899 99456

Warranty & Service

• Manufacturer/Importer warranty of 3 Year against manufacturing defect
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
