Shining 3D Aoralscan 2 Intra Oral Scanner

Description

The Shining 3D Aoralscan 2 Intra Oral Scanner is an entry-level chairside intraoral scanner from Shining 3D, built for routine general dentistry, restorative, implant, and orthodontic workflows. It captures 3D digital impressions of teeth, gums, and bite without putty trays, and the scanning workflow is intentionally simple, so first-time digital adopters can get usable scans within a short learning curve.

The Aoralscan 2 uses video-based capture at 15 frames per second with on-device AI guiding scan acquisition in real time, which reduces operator dependency and helps less-experienced users land cleaner data. Real-time 3D model visualisation lets the operator confirm scan completeness before removing the handpiece from the mouth. The scanner is dust-free, so no reflective scanning powder is needed during capture, which keeps the chairside routine cleaner and saves consumable cost between cases.

A single ergonomic, lightweight handpiece handles restorative, implant, and orthodontic case scanning, and the system runs in a temperature range of 10°C to 40°C, which suits typical Indian operatory conditions. Scan files export as open STL and integrate with major CAD/CAM platforms, so cases can be sent to in-house mills, third-party labs, or aligner providers without proprietary file conversion. The Aoralscan 2 supports single crowns, inlays and onlays, bridges, veneers, orthodontic, and implant indications.

On Dentalkart, the Shining 3D Aoralscan 2 intraoral scanner is available at the best price in India at ₹3,33,500 (MRP ₹5,52,000, 40% off), with COD and pan-India delivery on 100% genuine, warranty-backed equipment. If a higher-end scanner is the right fit, see the Shining 3D Aoralscan 3 Standard. Otherwise, compare more options in our intraoral scanner range, or browse more Shining 3D products.

Frequently Asked Questions

What is the scanning speed of the Shining 3D Aoralscan 2?

The Shining 3D Aoralscan 2 captures intraoral scans at 15 frames per second using video-based capture. AI scan guidance runs during acquisition to keep data clean and reduce re-scans, which makes it a workable option for clinics that are moving from conventional impressions to chairside digital scanning for the first time.

Does the Aoralscan 2 need scanning powder?

No, the Shining 3D Aoralscan 2 uses dust-free scanning technology, so no reflective powder is needed during intraoral capture. This keeps the chairside routine cleaner, removes a recurring consumable cost, and avoids the patient-comfort issue that comes with powder spray inside the mouth between scan passes.

What clinical indications does the Aoralscan 2 cover?

The Aoralscan 2 covers single crowns, inlays and onlays, bridges, veneers, orthodontic cases, and implant indications. The same lightweight handpiece is used across restorative, implant, and orthodontic workflows, which keeps training simple for staff and reduces the number of devices to maintain in the operatory.

What file formats does the Aoralscan 2 export?

The Shining 3D Aoralscan 2 exports scans as open STL files. STL is the most widely supported intraoral scan format and integrates with major CAD/CAM systems, dental laboratory workflows, and aligner provider portals, so cases can be sent without proprietary conversion or a separate gateway tool.

What is the difference between Aoralscan 2 and Aoralscan 3?

The Aoralscan 2 is the entry-level model focused on simple, dust-free, AI-guided scanning for clinics new to digital impressions. The Aoralscan 3 Standard adds a deeper 22 mm scan depth, motion-sensing controls, an Enhanced Metal Scan algorithm, and Mac plus Windows support, at a higher price band. The right choice depends on case mix and budget.

Key Features

• Artificial intelligence guides scan acquisition in real time for cleaner data and reduced operator dependency
• Dust-free scanning technology eliminates the need for reflective powders during intraoral capture
• Real-time 3D model visualization allows instant assessment of scan completeness and quality
• Simplified unified workflow supports restorative, implant, and orthodontic case scanning from one device
• Ergonomic lightweight handpiece design enhances patient comfort and reduces operator fatigue
• High accuracy and reliability minimize impression errors, remakes, and chairside adjustments
• Full integration with major CAD/CAM software platforms enables a seamless end-to-end digital workflow
• Intuitive user interface makes the system accessible for first-time digital adopters and experienced clinicians alike

Specifications

• Product Type: Intraoral Scanner
• Model: Aoralscan 2
• Brand: Shining 3D
• Scan Theory: Non-contact structured light
• Scan Range: 11 mm × 11 mm
• Scanner Dimensions: 280 × 40 × 55 mm
• Scanner Weight: Less than 325 g (without cable)
• Cradle Dimensions: 265 × 82 × 55 mm
• Cradle Weight: 800 g ± 50 g
• Connector: USB 3.0
• Output Formats: STL, OBJ, PLY
• Power Input: 100–240 V, 0.45–0.27 A
• Power Output: 12 V DC, 1.67 A
• Operating Temperature: 10°C to 40°C
• Operating System: Windows 10 Professional (64-bit)
• Biological Safety: ISO 10993-5 / 10993-10 compliant

Packaging

• 1 × Scanner body with USB 3.0 cable
• 1 × Scanner cradle

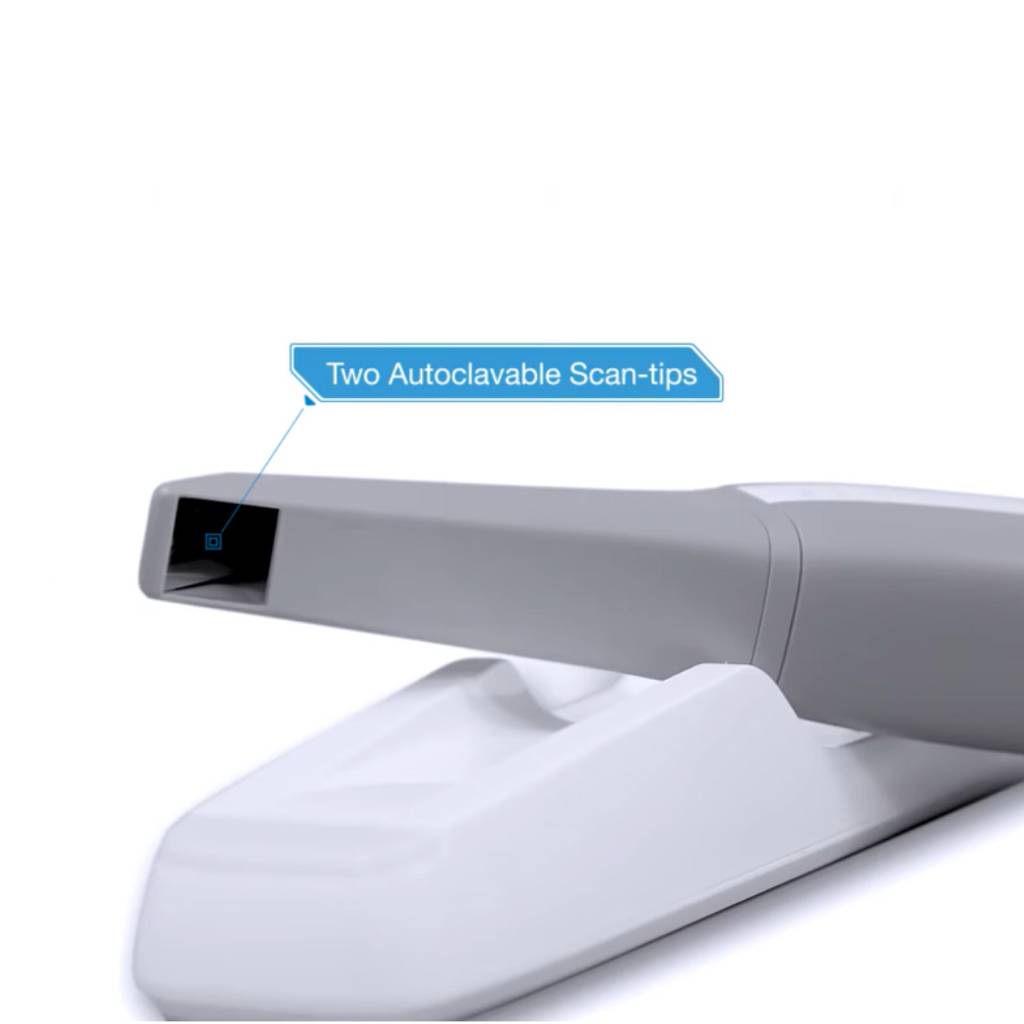

• 2 × Detachable autoclavable scanner tips
• 1 × Dust cap
• 1 × USB 3.0 cable (1.5 m, cradle to computer)
• 1 × Medical grade AC/DC power adapter (100–240 V input, 12 V DC / 1.67 A output)
• 1 × 2-in-1 USB dongle (software license key and carrier)
• 1 × Calibrator with USB 3.0 cable (1.5 m)
• 1 × Carry box
• IntraoralScan software (Calibration / Dental Order / Scan / Pre-design modules)

Directions for Use

Preparation

• Install the IntraoralScan software on a computer meeting the recommended system requirements
• Connect the scanner cradle to the computer using the supplied USB 3.0 cable and power adapter
• Insert the 2-in-1 USB dongle into the computer to activate authorized software access
• Calibrate the scanner using the supplied calibrator before first use and at regular recommended intervals
• Attach a sterilized scanner tip onto the scanner body ensuring it locks securely into position

Patient Setup

• Create a new patient case in the dental order system module and enter prescription details
• Select the appropriate scanning mode such as crown, bridge, implant, orthodontic, or edentulous
• Position the patient comfortably with the operatory chair lighting reduced for optimal scan quality
• Dry the patient’s teeth with a triplex air syringe to remove excess saliva from the scan area

Scanning Operation

• Hold the scanner with the tip positioned 0 to 5 mm from the tooth surface at the correct angle
• Initiate scanning by pressing the scanner button or via the on-screen control
• Sweep the scanner smoothly across the occlusal, buccal, and lingual surfaces with steady continuous motion
• Capture the prepared tooth or implant scan body first, followed by adjacent teeth and the opposing arch
• Record the buccal bite with the patient in maximum intercuspation for occlusal registration
• Inspect the 3D model on screen and rescan any areas with missing or low-quality data

Data Export and Workflow

• Process the captured scan within the IntraoralScan software for hole filling and trimming
• Export the final scan in STL, OBJ, or PLY format as required by the receiving CAD software or laboratory
• Send the digital impression to the dental laboratory or import directly into chairside CAD software

Post Use Care

• Detach the scanner tip by sliding it off gently while gripping it firmly on both sides
• Attach the dust cap to protect the optical components of the scanner body
• Wipe the scanner body and cradle with 70 to 75 percent ethanol on cotton gauze
• Clean the scanner tip with pH-neutral soap water and either disinfect with CIDEX OPA or autoclave at 134°C for 4 minutes
• Store the scanner in its cradle and the kit in original packaging for the next use

Additional Information

• Country Of Origin: PRC

Warranty & Service

• Manufacturer/Importer warranty for “Shining 3D Aoralscan Intraoral 3D Scanner” 1 years as applicable for this product.
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will be exchanged or taken back only if the seal of the package or the Product is intact/not altered in any manner or has not been tampered with.
