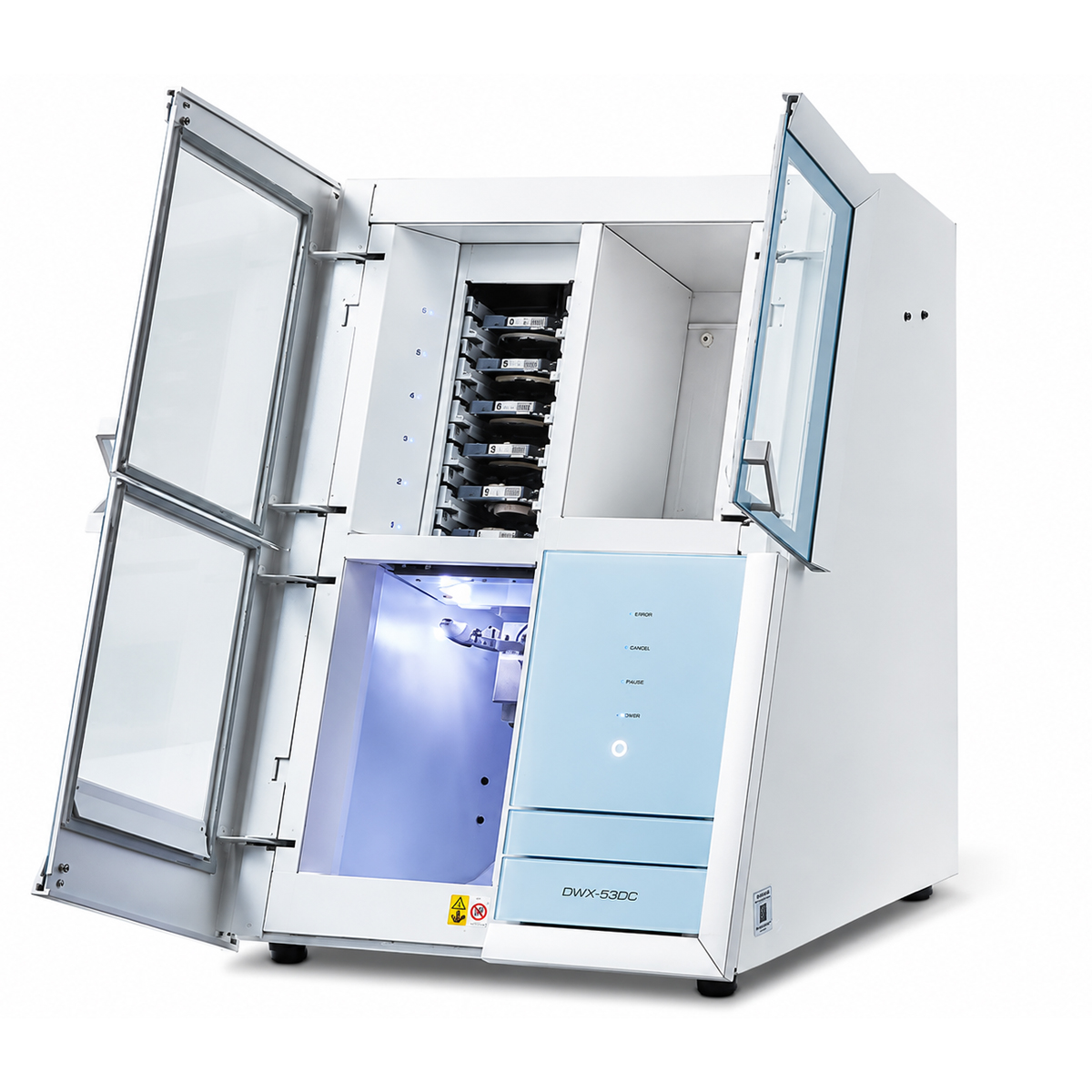

Roland DWX-53DC Dental CAD/CAM Milling Machine

Description

Roland DWX-53DC Dental CAD/CAM Milling Machine is a next-generation 5-axis dry milling solution designed for high-volume dental laboratories seeking maximum productivity, precision, and automation. Equipped with a redesigned user-replaceable spindle offering 3x greater tool gripping power, the DWX-53DC delivers reliable and predictable milling performance across a wide range of restorative materials including zirconia, PMMA, wax, and composite resin. Its advanced 6-slot Automatic Disc Changer enables continuous 24-hour unattended production, while the integrated webcam provides real-time remote monitoring from virtually any device. The intelligent ecosystem incorporates automatic pressure control, DGSHAPE CLOUD remote management, and Intelligent Tool Control technology to optimize milling efficiency and minimize downtime. With its robust 5-axis architecture, AI-powered performance monitoring, and compliance with the highest clinical standards, the DWX-53DC offers dental laboratories an efficient, scalable, and highly automated milling solution for modern digital dentistry workflows.

Key Features

• Advanced 5-axis milling system for highly accurate restorations
• 6-slot Automatic Disc Changer supports continuous unattended production
• Redesigned spindle provides 3x greater tool gripping power
• User-replaceable spindle minimizes downtime and maintenance costs
• Integrated webcam enables remote monitoring from any device
• DGSHAPE CLOUD platform supports performance tracking and machine management
• Intelligent Tool Control automatically replaces worn tools
• Automatic pressure control optimizes airflow based on material selection
• Automated eco-system promotes cleaner milling and reduced maintenance
• Supports 24-hour production for enhanced laboratory productivity
• Compatible with multiple restorative materials and applications
• Built to meet high clinical and industrial quality standards

Specifications

• Product Type: 5-Axis Dental CAD/CAM Milling Machine
• Model: DWX-53DC
• Milling Technology: Dry Milling
• Axis Configuration: 5-Axis Simultaneous Milling
• Disc Changer Capacity: 6 Material Adapters
• Compatible Materials: Zirconia, PMMA, Wax, Composite Resin, And More
• Spindle Speed: Up To 30,000 RPM
• Rotary Axis Range: A Axis ±360°, B Axis ±35°
• Tool Capacity: Automatic Tool Management System
• Attachable Bur Size: 4 mm Diameter, 40–55 mm Length
• Air Pressure Requirement: 0.4 MPa
• Monitoring System: Integrated Webcam
• Cloud Connectivity: DGSHAPE CLOUD Remote Management
• Power Supply: AC 100–240 V, 50/60 Hz
• Power Consumption: Approx. 250 W
• Dimensions (W × D × H): 23.62 × 29.25 × 32.75 Inches
• Weight: 120 kg (264.55 lbs)
• Disc Exchange Time: Approximately 1 Minute 7 Seconds

Packaging

• 1 x Roland DWX-53DC Dental CAD/CAM Milling Machine

Directions for Use

Preparation

• Install the machine on a stable surface with proper ventilation.
• Connect the extraction unit, compressed air supply, and power source.
• Verify material discs, burs, and adapters are properly installed.
• Import the restoration design through compatible CAD/CAM software.

Material Loading

• Load up to six material discs into the Automatic Disc Changer.
• Select the required material and restoration parameters.
• Ensure the correct burs are available within the tool changer.

Milling Operation

• Start the milling process through the VPanel interface.
• Allow automatic pressure control and tool management to optimize performance.
• Monitor milling progress locally or remotely using the integrated webcam.
• Enable unattended production for continuous laboratory workflows.

Post-Milling Care

• Remove completed restorations carefully from the material disc.
• Clean milling debris using the automated cleaning and extraction systems.
• Inspect burs and replace worn tools as required.
• Perform routine maintenance according to manufacturer recommendations.

Additional Information

• Country of Origin: Japan
• Manufacturer: Roland DG Corporation
