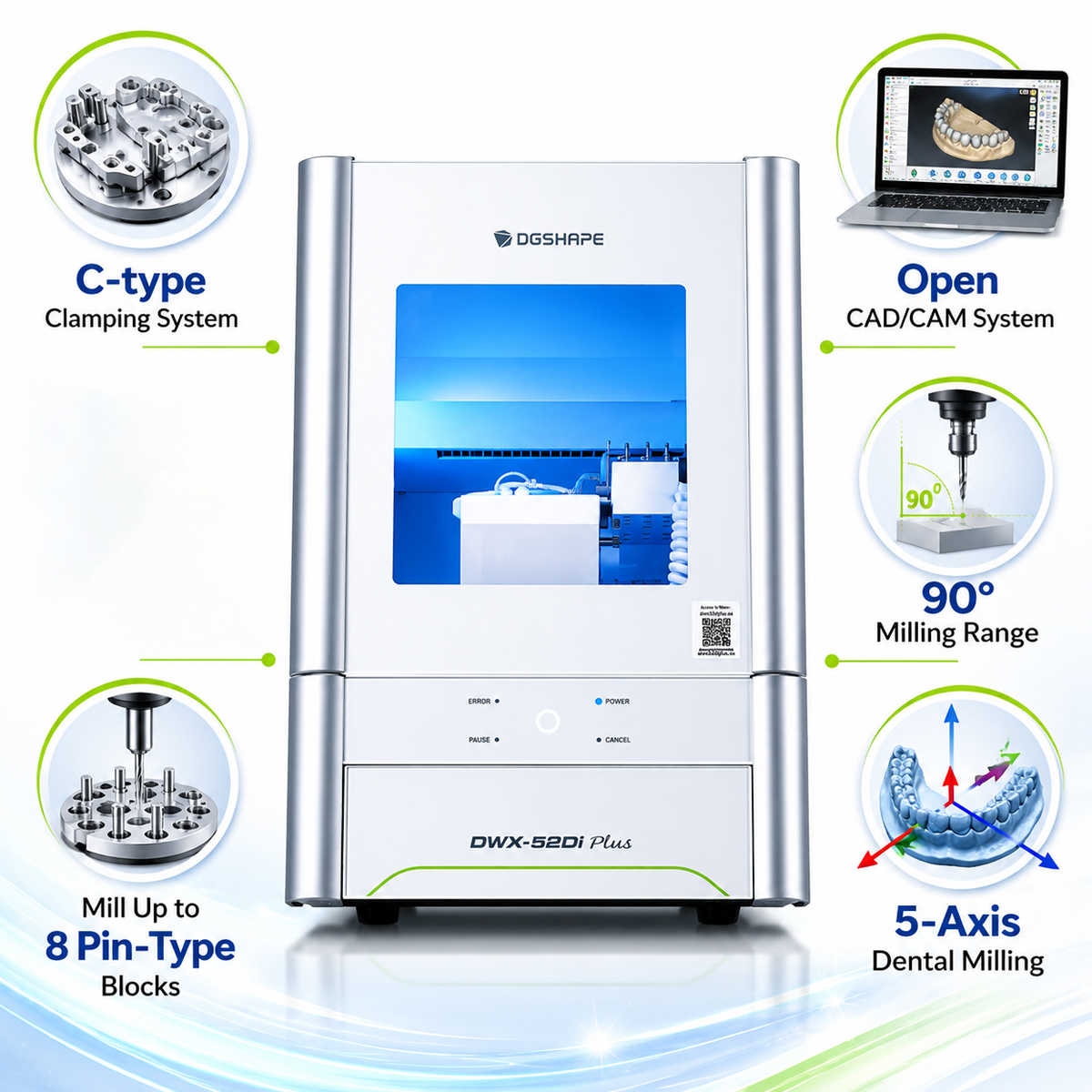

Roland DWX-52Di Plus Dental CAD/CAM Milling Machine

Description

Roland DWX-52Di Plus Dental CAD/CAM Milling Machine is an advanced 5-axis dry milling system engineered for dental laboratories, clinics, DSOs, and in-house production centers seeking precision, productivity, and cost-efficient restorative manufacturing. Built with a robust C-clamp system and intelligent automation features, the DWX-52Di Plus enables high-accuracy milling of zirconia, PMMA, wax, composite resin, PEEK, PEKK, gypsum, glass fiber reinforced resin, and CoCr sinter metal restorations. Its simultaneous 5-axis milling capability allows smooth rotation and tilting for deep undercuts and large arch restorations with exceptional precision. The machine features a 15-station Automatic Tool Changer (ATC), intelligent Tool Control (ITC), automatic calibration, and air pressure adjustment to ensure continuous and efficient milling operations. The intuitive VPanel software simplifies machine management while enabling diagnostics and automatic bur replacement. Equipped with a user-replaceable spindle, the system minimizes downtime and maintenance costs. The open architecture platform provides compatibility with a wide range of CAD/CAM software, scanners, and materials, offering flexibility for modern digital dentistry workflows.

Key Features

• Advanced 5-axis milling system ensures highly precise restorations
• C-clamp design supports economical high-capacity disc milling
• 15-station Automatic Tool Changer enables continuous automated milling
• Intelligent Tool Control automatically replaces worn burs
• User-replaceable spindle reduces downtime and maintenance expenses
• Auto-adjusted air pressure optimizes milling efficiency for different materials
• Compatible with zirconia, PMMA, wax, PEEK, PEKK, gypsum, and CoCr sinter metal
• 90-degree milling range improves anterior restoration esthetics
• Open architecture platform supports multiple CAD/CAM systems
• Integrated VPanel software provides diagnostics and automatic calibration
• Auto-start dust collection system maintains cleaner operation
• Built-in ionizer reduces static during PMMA milling procedures
• Supports milling of crowns, bridges, veneers, implant bars, splints, and surgical guides

Specifications

• Product Type: Dental CAD/CAM Milling Machine
• Model: DWX-52Di Plus
• Brand: Roland DGSHAPE
• Milling Type: 5-Axis Dry Milling
• Clamping System: Fixed C-Clamp System
• Tool Changer: 15-Station Automatic Tool Changer
• Spindle Motor: Brushless DC Motor
• Spindle Speed: 6,000 – 30,000 rpm
• Operating Speed: 6 – 1,800 mm/min
• Rotary Axis Travel: A Axis ±360°, B Axis ±30°
• Maximum Workpiece Weight: 850 g
• Maximum Material Height: 35 mm
• Bur Capacity: 15 Burs
• Attachable Bur Size: 4 mm Diameter, 40 – 55 mm Length
• Compressed Air Requirement: 0.2 MPa
• Supported Materials: Zirconia, Wax, PMMA, Composite Resin, PEEK, PEKK, Gypsum, Polycarbonate, Glass Fiber Reinforced Resin, CoCr Sinter Metal
• Supported Applications: Crowns, Bridges, Veneers, Inlays, Onlays, Splints, Implant Bars, Surgical Guides
• Interface: USB
• Control Command Set: RML-1, NC Code
• Power Supply: AC 100 V, 50/60 Hz
• Power Consumption: Approx. 200 W
• Operating Noise: 70 dB(A)
• Standby Noise: 45 dB(A)
• Dimensions: 34.6 × 26.0 × 23.6 Inches
• Weight: 105 kg
• Operating System Compatibility: Windows 7/8/8.1/10

Packaging

• 1 x Roland DWX-52Di Plus Dental CAD/CAM Milling Machine

Directions for Use

Preparation

• Install the milling machine on a stable laboratory workstation
• Connect the machine to the required electrical and compressed air supply
• Ensure all burs are properly installed in the automatic tool changer
• Load the selected material disc securely into the C-clamp holder
• Connect the machine to the CAD/CAM workstation using the USB interface

Software Setup

• Prepare the restoration design using compatible CAD/CAM software
• Import the milling file into the VPanel software interface
• Select the correct material type and milling strategy
• Verify tool allocation, spindle condition, and calibration before operation

Milling Procedure

• Start the milling cycle through the VPanel control system
• Allow the automatic tool changer to perform tool switching during milling
• Monitor milling progress and machine status indicators throughout operation
• Ensure the dust collection system operates correctly during milling

Post Use Care

• Remove completed restorations carefully after milling completion
• Clean residual dust and debris from the milling chamber
• Inspect burs regularly and replace worn tools when necessary
• Perform routine spindle and calibration maintenance as recommended
• Store the machine in a clean, dry, and dust-free environment

Additional Information

• Country of Origin: Japan
• Manufacturer: Roland DG Corporation

Warranty & Service

• Manufacturer/Importer warranty of 12 Months as applicable for this product
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
