Piocreat Automatic Feeder Unit For 3D Dental Printer

Description

The PioCreat Automatic Feeder Unit is a smart resin management accessory designed to streamline dental 3D printing workflows on the HALOT-X1 series printers. It automates the entire resin handling cycle — continuously supplying resin during printing and recycling leftover resin back into the bottle once the job completes, reducing waste and keeping the vat cleaner between jobs. Built-in RFID recognition instantly identifies compatible resins and syncs the correct print parameters with the printer, eliminating manual setup errors during batch production of crowns, models, aligners, or surgical guides. An integrated heating module maintains resin at a constant 36 °C for optimal viscosity and consistent print quality across long jobs. Real-time volume tracking on the printer touchscreen helps dental labs plan refills without interrupting workflow. Compact and plug-and-play, the Automatic Feeder Unit sits neatly beside the printer and is fully managed through the touchscreen — ideal for high-throughput dental labs.

Key Features

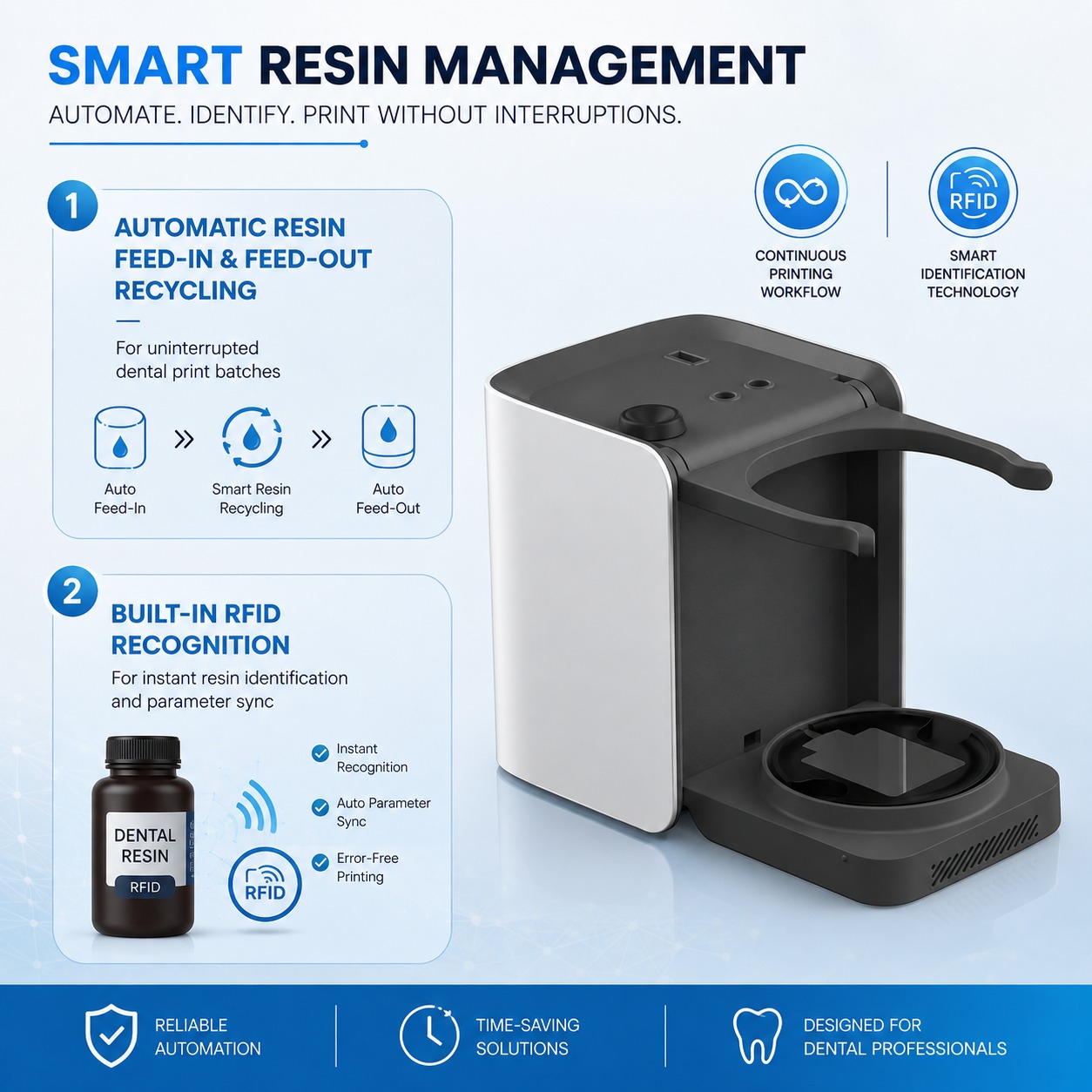

• Automatic resin feed-in and feed-out recycling for uninterrupted dental print batches
• Built-in RFID recognition for instant resin identification and parameter sync
• Real-time resin volume display on the printer touchscreen
• Integrated heating module maintains resin at constant 36 °C for optimal viscosity
• Plug-and-play connection with the HALOT-X1 series dental 3D printer
• Compact, stylish design that integrates cleanly beside the printer

Specifications

• Compatibility: PioCreat/Creality HALOT-X1 series resin 3D printers
• Functions: Auto feed-in, auto recycling, RFID recognition, level & weight sensing
• Heating Range: 30–45 °C adjustable (heats in ~3 minutes)
• Resin Level Detection: Laser-based distance measurement
• Weight Monitoring: 0–1 kg bottle residual detection
• Compatible Resin Viscosity: Up to 1000 mPa·s at room temperature
• Power/Connection: USB-C from printer, plug-and-play
• Control: Fully managed via HALOT-X1 touchscreen

Packaging

• 1 x Piocreat Automatic Feeder Unit For 3D Dental Printer

Directions for Use

Preparation

• Unbox the AFU and verify all accessories: feed hose, USB-C cable, bottle cap with dip tube, and anti-drip base
• Place the AFU on a stable, level surface directly beside the HALOT-X1 printer
• Ensure the printer is powered off before making any connections

Installation Steps

• Connect the USB-C cable from the AFU to the USB-C port on the top rear of the HALOT-X1 (this powers and controls the AFU)
• Attach the feed hose to the AFU outlet and connect the other end to the black hose port on the printer’s resin vat
• Take a compatible PioCreat/Creality resin bottle and screw on the supplied AFU cap with the built-in dip tube
• Place the resin bottle into the AFU cradle, ensuring it sits firmly on the weight sensor base
• Verify the RFID tag on the bottle base aligns with the AFU reader

First-Time Setup

• Power on the HALOT-X1 and confirm the AFU is detected on the touchscreen
• Navigate to the AFU settings menu and calibrate the resin level sensor if prompted
• Run a test feed cycle to prime the tubes and check for leaks at all connection points
• Confirm RFID recognition by checking that resin type and parameters auto-populate on the screen

Post-Installation Check

• Preheat resin to the target temperature (30–45 °C) via the touchscreen
• Confirm the vat fills to the correct level during a test run
• The AFU is now ready for automatic feeding, monitoring, and recycling during prints

Additional Information

Manufacturing- Shenzhen PioCreat 3D Technology Co., Ltd

ADD: 12/F, Block3, JinChengYuan, Longhua District,Shenzhen,PRC,518109

Tel:+86 15960821355

Email: jessicahua@piocreat3d.comImported and marketed by- VASA Denticity Limited
