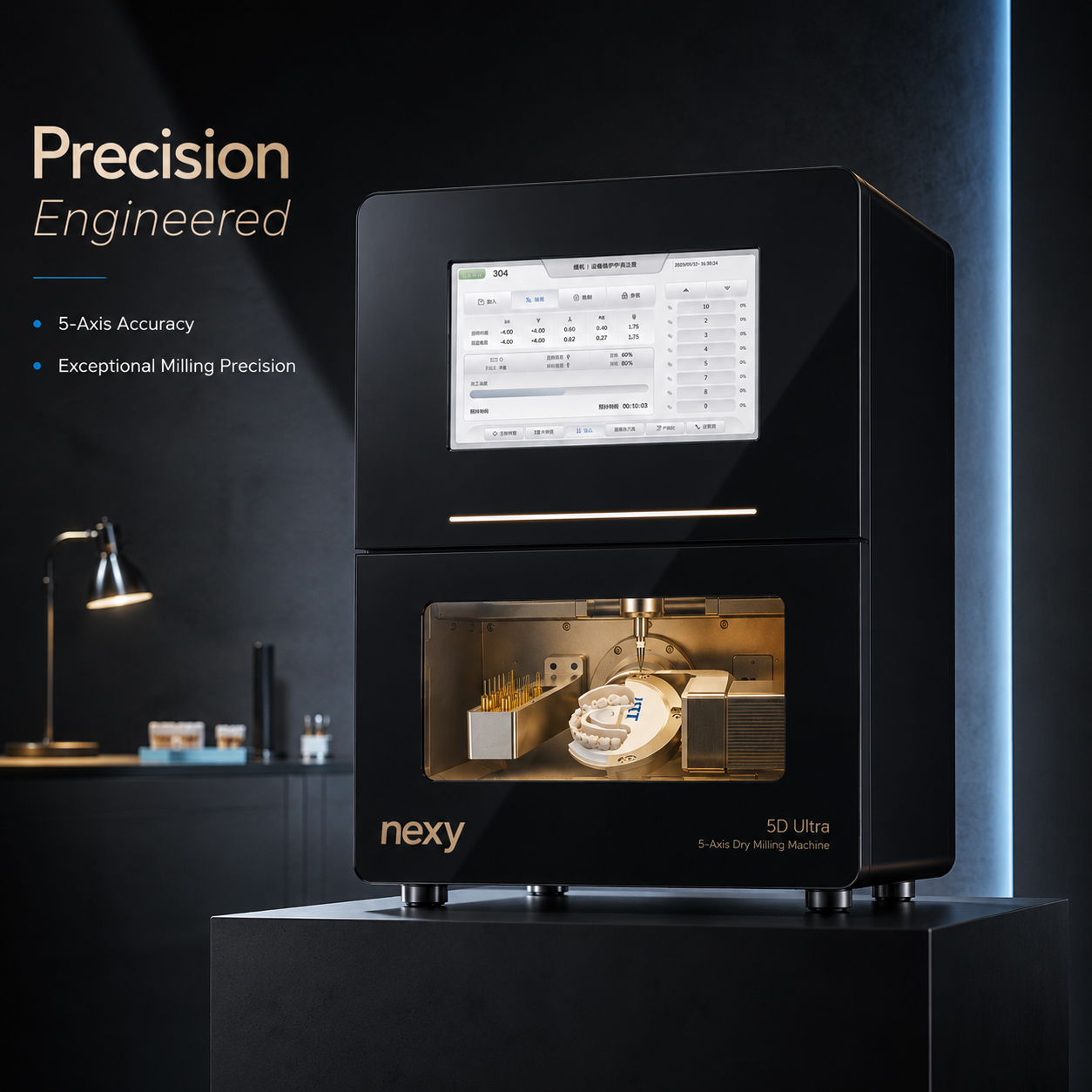

Nexy 5D Ultra CAD/CAM Milling Machine

Description

Nexy 5D Ultra CAD/CAM Milling Machine is an advanced 5-axis dry milling system engineered to deliver exceptional precision, stability, and productivity for modern dental laboratories. Built with a rigid marble machine bed, high-precision harmonic drive, grinding-grade lead screw guide, and servo motor technology, the machine ensures smooth and highly accurate milling performance. Its powerful air-cooled spindle operates at speeds ranging from 30,000 to 60,000 RPM and is complemented by an 8-tool automatic changer with real-time tool life monitoring for uninterrupted operation. The capacitive LCD touchscreen provides an intuitive multi-theme interface, while intelligent features such as power-off resume, low-pressure protection, intelligent alarm monitoring, and three-color working status indicators enhance operational efficiency. Designed for continuous 24-hour production, the fully enclosed dustproof chamber enables quiet operation while supporting zirconia, PMMA, PEEK, and wax milling for a wide range of restorative applications.

Key Features

• High precision 5-axis dry milling technology
• Grinding-grade lead screw guide with harmonic drive servo system
• 8-tool automatic changer with real-time tool life monitoring
• Powerful spindle operating up to 60,000 RPM
• Rigid marble machine bed for maximum stability
• Fully enclosed dustproof chamber with silent operation
• Power-off resume and intelligent alarm monitoring system
• Supports 24-hour continuous laboratory production

Specifications

• Product Type: CAD/CAM Milling Machine
• Model: 5D Ultra
• Machine Type: 5-Axis Dry Milling
• Tool Capacity: 8 Automatic Tools
• Machine Dimensions: 510 × 660 × 710 mm
• Net Weight: 125 kg
• Input Voltage: 220 V
• Spindle Power: 0.5 kW
• Maximum Machine Power: 1.2 kW
• Cooling System: Air Cooling
• Spindle Speed: 30,000–60,000 RPM
• Tool Shank Diameter: 6 mm
• Milling Angle: A-axis 360°, B-axis +110° / -30°
• Millable Materials: Zirconia, PMMA, PEEK, Wax

Packaging

• 1 x Nexy 5D Ultra CAD/CAM Milling Machine

Directions for Use

Preparation

• Install the required milling burs into the automatic tool changer
• Load the selected CAD/CAM disc into the milling chamber
• Import the restoration design and verify milling parameters

Milling

• Select the appropriate material and restoration type
• Start the milling cycle through the LCD touchscreen interface
• Monitor the machine status using the three-color indicator lights

Completion

• Remove the restoration after milling is complete
• Inspect the restoration for accuracy and surface quality
• Clean the milling chamber before the next operation

Maintenance

• Monitor tool life and replace worn burs when required
• Keep the dust collection system and chamber clean
• Perform routine maintenance according to the manufacturer’s recommendations

Additional Information

Country of Origin: PRC (China)

Manufacturer:
Shanghai Jiny Electromechanical Technology Co., Ltd.
No. 28, Moyu Road, Anting Town,
Shanghai, PRC

Packer:
Shanghai Jiny Electromechanical Technology Co., Ltd.
No. 28, Moyu Road, Anting Town,
Shanghai, PRC

Marketed By:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farrukhnagar, Gurugram, Haryana – 122506, India
Phone: +91 72899 99456

Warranty & Service

• Manufacturer/Importer warranty of 12 Months as applicable for this product
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
