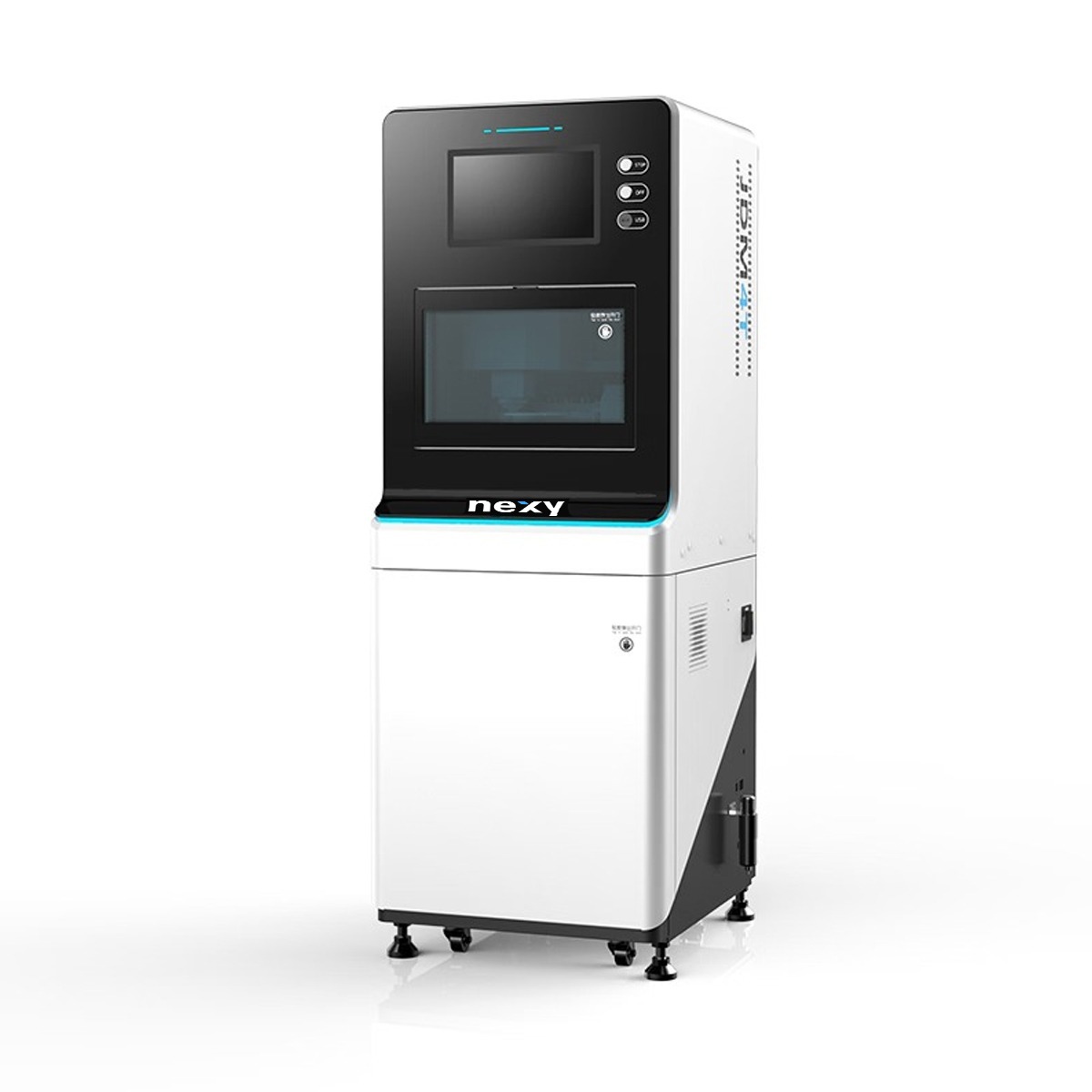

Nexy Chairside Dry/Wet Milling Machine – F4T

Description

Key Features

• Supports both dry and wet milling modes for diverse material compatibility
• Processes a wide range of materials including ceramics, composites, and pre-milled abutments
• Robust axis kinematics ensure high-precision restorations with consistent quality
• Compact, chairside design saves space while offering full milling capabilities
• Enables in-house production of crowns, bridges, inlays, onlays, and abutments
• Stable mechanical structure minimizes vibration for smooth, accurate milling
• User-friendly interface simplifies workflow and reduces training time for clinical staff

Specifications

• Model: F4T
• Axis: 4-Axis
• Size: 591*642.5*1630mm
• Tool capacity: 8
• Input volatage: 220V
• Spindle Power: 1.8-2.2kw
• Machine Power: 4kw
• Cooling mode of spindle: Water cooling
• Milling method: Wet
• A-Axis: 360˚
• Spindle Speed: 3,000-60,000rpm

Packaging

• 1 x F4T-9A9G CNC milling machine
• 1 x Power cable
• 1 x Water chiller
• 3 x Cooling water pipe
• 1 x Water pump and filter sponge (screws, pipe joints)
• 2 x Hex key
• 1 x M5*12 screw/M5*8 jackscrew/M3*6 flat cross screw
• 4 x Metal milling tools T1-T4
• 3 x Glass ceramic milling tools T5-T7
• 5 x Premill abutment for testing
• 2 x Glass ceramic block
• 10 x Glass ceramic fixture
• 1 x Spindle collet wrench
• 1 x User manual
• 1 x Factory inspection report
• 2 x Factory installation and acceptance report
• 1 x Certificate of quality

Directions for Use

System Setup:

• Place the F4T on a stable, level surface near the CAD/CAM workstation.

• Connect power supply, water unit (for wet milling), and suction unit (for dry milling).

Material Loading:

• Select the appropriate holder for your material type (block or blank).

• Secure the CAD/CAM block, glass ceramic, or pre-milled abutment into the holder.

Software Configuration:

• Use compatible CAD software to design the restoration.

• Export the design to the CAM software provided with the F4T.

• Choose milling parameters based on material type (dry/wet mode, spindle speed, tool path).

Milling Process:

• Insert the required milling tools and ensure proper calibration.

• Start the milling process through the interface or touchscreen control panel.

• Monitor progress via the display or window.

Post-Milling:

• Remove the milled restoration carefully.

• Clean the unit, empty the collection tray, and refill coolant if needed.

Additional Information

• Country of Origin: Made in PRC
