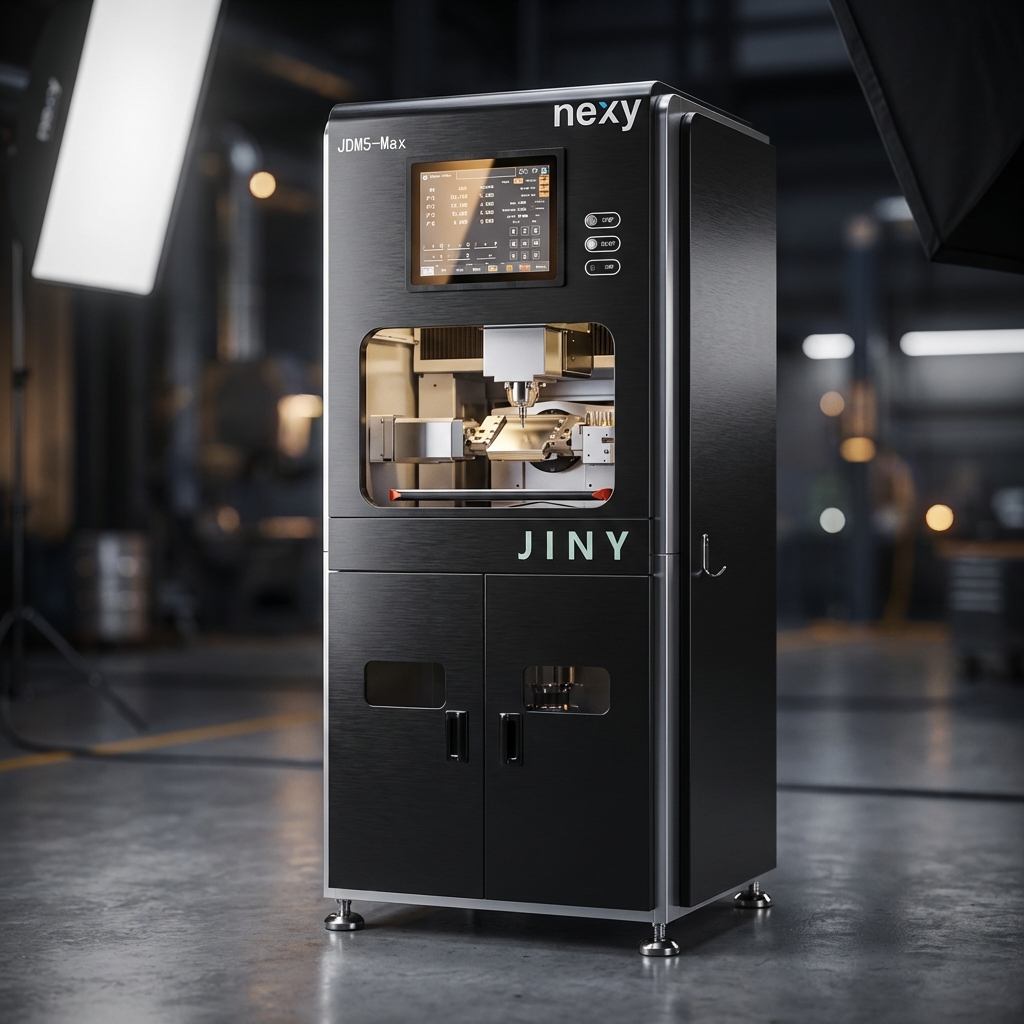

Nexy 5-Axis Full – Function Dental Milling Machine – JDM5 MAX

Description

Nexy 5-Axis Full-Function Dental Milling Machine – JDM5 MAX is a robust, open-source solution engineered to deliver exceptional flexibility and productivity for modern dental laboratories. Compatible with all major dental CAD software like exocad and 3Shape, it seamlessly integrates with leading nesting programs such as WorkNC, Hyperdent, and Millbox. The machine features a unique open-mouth fixture capable of clamping extra-large 140x150mm titanium square plates, significantly reducing material wastage—up to 30% compared to conventional round discs—while enabling the milling of up to eight implant bridges per plate. Constructed with Meehanite cast iron and a double-supported arm, the JDM5 MAX ensures long-term precision and rigidity. Its monoblock body design, free from welding, enhances structural stability and preserves original accuracy even after extended use. Ideal for high-volume, high-precision milling, the JDM5 MAX offers unmatched reliability, adaptability, and cost-efficiency for advanced dental prosthetic production.

Key Features

• Open-source compatibility with all major CAD/CAM software including exocad, 3Shape, WorkNC, Hyperdent, and Millbox

• Unique open-mouth fixture supports 140x150mm titanium square plates for high-volume milling

• Enables milling of up to 8 implant bridges per plate, reducing material wastage by over 30%

• Constructed from Meehanite cast iron for superior rigidity and long-term mechanical accuracy

• Double-supported arm enhances fixture stability during complex milling operations

• Monoblock body design with no welding ensures structural integrity and vibration resistance

• Precision 5-axis movement allows accurate milling of complex dental restorations and implant frameworks

Specifications

• Milling Machine Model: JDM5 Max
• Axis: 5 Axis
• Size: 860*870*1800mm
• Tools capacity: 34
• Input Volatage: 220V
• Spindle Power: 4KW
• Machine Power: 8kw
• Cooling Mode of Spindle: Water Cooling
• Milling method: Wet Milling
• Spindle speed: 3,000-60,000pm
• A-axis: 360˚

Packaging

• 1 x JDM5-MAX CNC milling machine
• 3 x Cooling water pipe
• 1 x Water pump and filter sponge (screws, pipe joints)
• 1 x Power cable
• 1 x Ice water chiller
• 3 x Hex key
• 4 x M4*16/M5*16 screws/M5*10 fasten screws/M5 spacer
• 1 x Wax block
• 5 x Premill abutment for testing
• 13 x Metal milling tools T1-T13
• 3 x Ceramic milling tools T14-T16
• 1 x Glass ceramic block
• 1 x Spindle collet wrench
• 1 x Round clamp for titanium disc
• 1 x Side-door Key
• 1 x Metal Tray
• 1 x Fixture (Square Plate Fixture + 5A Abutment Fixture)
• 1 x Automatic calibration (calibration disc + wire + probe)
• 2 x Battery
• 1 x Medentica Fixture
• 1 x User manual
• 1 x Factory inspection report
• 2 x Factory installation and acceptance report
• 1 x Certificate of quality

Directions for Use

Design Preparation:

• Create or import your dental prosthetic design using compatible CAD software such as exocad or 3Shape.

File Export:

• Export the design in STL format and import it into supported CAM nesting software (e.g., WorkNC, Hyperdent, or Millbox).

Toolpath Generation:

• Generate and verify toolpaths in the CAM software, ensuring correct milling parameters for the selected material.

Load Program:

• Transfer the toolpath file to the machine via its interface or connected system.

Machine Initialization:

• Power on the machine, run the homing sequence, and ensure all axes are calibrated.

Start Milling:

• Begin the milling process. Monitor for smooth operation and material engagement.

Post-Milling:

• Once milling is complete, safely remove the milled prosthetics and clean the machine for the next cycle.

Additional Information

• Country of Origin: Made in PRC
