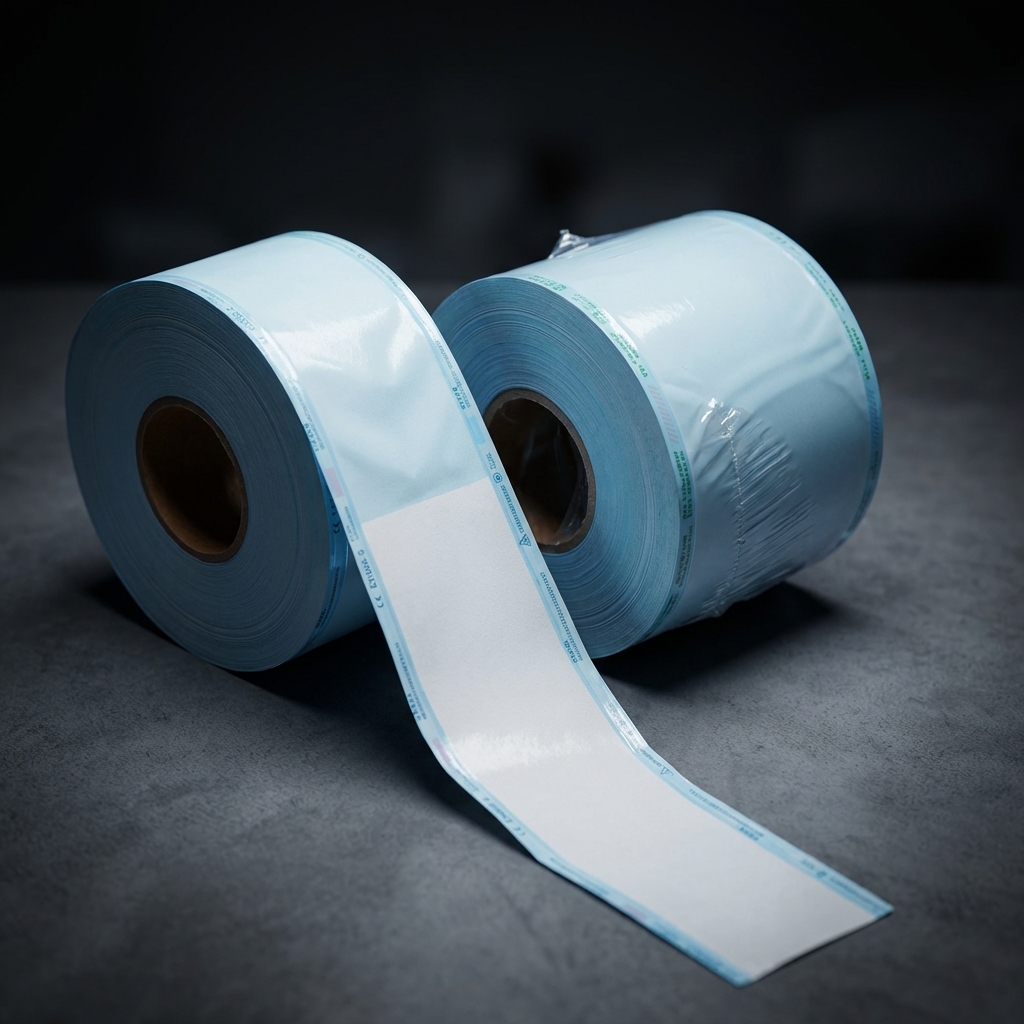

Medical grade Sterilization Reels with sterilization indicator

Description

The Sterilization Reel is designed for efficient and reliable packaging of medical and dental instruments prior to sterilization. Used in combination with a heat sealer, the flat reel can be converted into custom-sized pouches based on instrument dimensions, minimizing excess material usage and reducing wastage. Its systematically rolled structure allows smooth dispensing and easy handling during routine sterilization workflows. Once sealed, the reel helps maintain sterility of instruments after the sterilization process until the point of use. Suitable for clinical and hospital environments, this single-use sterilization reel supports organized instrument management, improves workflow efficiency, and ensures hygienic storage in compliance with standard infection control protocols.

Key Features

• Easy identification of contents through the transparent, puncture-resistant, non-tearing, blue-tinted plastic film.

• Provides visual confidence that sterilization is achieved and maintained.

• A strong and secure side seal protects against instrument breaching.

• High-quality porous medical-grade paper.

• Clean, fiber-free separation of paper and film, when opened, ensures the safe presentation of sterile products.

• To prevent cross-contamination reels are individually wrapped.

• Compatible with steam and ethylene oxide sterilization methods.

Specifications

 Available Sizes

• 55mm(2″) x 200m
• 75mm(3″ ) x 200m
• 100mm(4″) x 200m
• 150mm(6″)  x 200m
• 200mm(8″) x 200m
• Type: Flat Sterilization Reel


• Category: Sterilization Packaging Material


• Form: Roll format



Packaging

• 1 Spool of 200 metre roll

Directions for Use

Following the cleaning and sanitizing process using an ultrasonic cleaner, each instrument must be packaged and sealed appropriately.

• The contents must not take up more than 3/4 of the total volume of the package.
• A 3cm gap should be left between the instruments and the seal.
• To make it easier to open, leave a 1-cm gap between the seal and the paper’s edge.
• Any instruments in pouches with plainly burned or uneven seals must be repacked.
• To start the packaging process, insert the end of the sterilization package into the sealing device with the paper side facing downwards. the handwheel of the sealing machine enables you to adapt to the desired length easily. Press the lever of the sealing machine downward to generate the seal seam.
• During the sealing procedure, move the blade handle from one side to the other to cut off the desired length. Press the lever upwards and remove the pouch, which is open to one side.
• In the next step, place the instrument in the pouch. Ensure that the instrument is dry and free of soiling.
• The use of protective caps on pointed instruments prevents damage to the sterilization package.
• To finish packaging, slide the unsealed side of the pouch into the sealing device from the front. Then perform the sealing procedure again.
• The arrow on the foil indicates the direction in which you need to open the pouch.

Warranty & Service

• Warranty is not applicable for this product.
