Julldent Crestal Approach Sinus Cas-kit

Description

Julldent Crestal Approach Sinus Cas-kit Simple Sinus Creastal Reamer Kit (Crestal Approach Sinus CAS-Kit)
Jull-Dent 005
Simple and Economical set composed of the dedicated reamer for the sinus creastal approach surgery. Reasonable Economic due to the mini kit consisting of essential components. Safely and rapidly lifts the sinus membrane while drilling, a unique stopper system that prevents over-drilling into the sinus cavity, Hydraulic Lift System that easily & Safely Lifts the membrane.Creastal Approach Sinus Kit is specifically designed to easily and safely lift the membrane in the maxillary sinus from a creastal approach. The unique design of the Cas- Drills enhances the convenience and safety of maxillary sinus surgery by safely lifting the membrane while drilling. precision cutting speed from low to high speed (800 rpm), formation of the conical-shaped bone chip, generation of bone particles, smooth & stable insertion, easy path correction, and septum surgery.

The unique component of the CAS Kit is the CAS-Drill. The CAS-Drill is designed to safely and rapidly lift the maxillary Sinus membrane from a crestal approach. The CAS-Drill can be used for either straight or tapered implants. It is optimized for insertion torque, initial fixation strength, and tactile feedback when using Implants.

• CAS-Drill forms a conical bone barrier, protecting the membrane.
• The atraumatic design of the drill tip allows the user to perform sinus surgery even if the sinus floor is flat, inclined septum, and inferior alveolar canal.
• The CAS-Drill tip has an inverse conical shape.
• This shape will form a conical bone chip when drilling, which assists with safely lifting the membrane. In addition, bone particles generated when drilling discharge upwards, producing a Membrane Auto-Lift Function.
• Option to drill from low speed to high enabling the harvesting of autogenous bone at low speed.
• Unique stopper system (in 1mm increments) that prevents over-drilling into the sinus cavity.
• Final drill diameter selected according to fixture diameter and bone density, independently of straight or tapered fixture type.

Key Features

• It can be used for either straight or tapered implants.
• CAS drill has inverse conical shape which form a conical bone chip when drilling, which assists with safely lifting the membrane.
• Drilling speed ranges from low speed to high speed, allowing flexibility during surgery.

Specifications

Sizes

• Jull-Dent 004A– Sinus Reamer Diameter 2.8mm.
• Jull-Dent 004B– Sinus Reamer Diameter 3.3mm.
• Jull-Dent 004C– Sinus Reamer Diameter 3.8mm.
• Jull-Dent 004D– Sinus Reamer Diameter 4.2mm.
• Jull-Dent 004E– Titanium Stopper ( sizes -1mm, 2mm, 3mm, 4mm, 5mm).

• 10 x 5 x 2cm

CAS-Dril:

• Comes in six diameters: 2.8/3.3/3.8/4.2
• Allows a 13mm Fixture to be implanted.
• Drilling is dependent upon the Fixture diameter and the bone density.
• Drilling speed ranges from low speed to high speed (800rpm), allowing flexibility during surgery.
• Experienced: 800rpm
• Beginner: 400 to 600rpm
• Is recommended irrigation with saline solution.
• Can be used up to 50 times depending on the type of bone.

Packaging

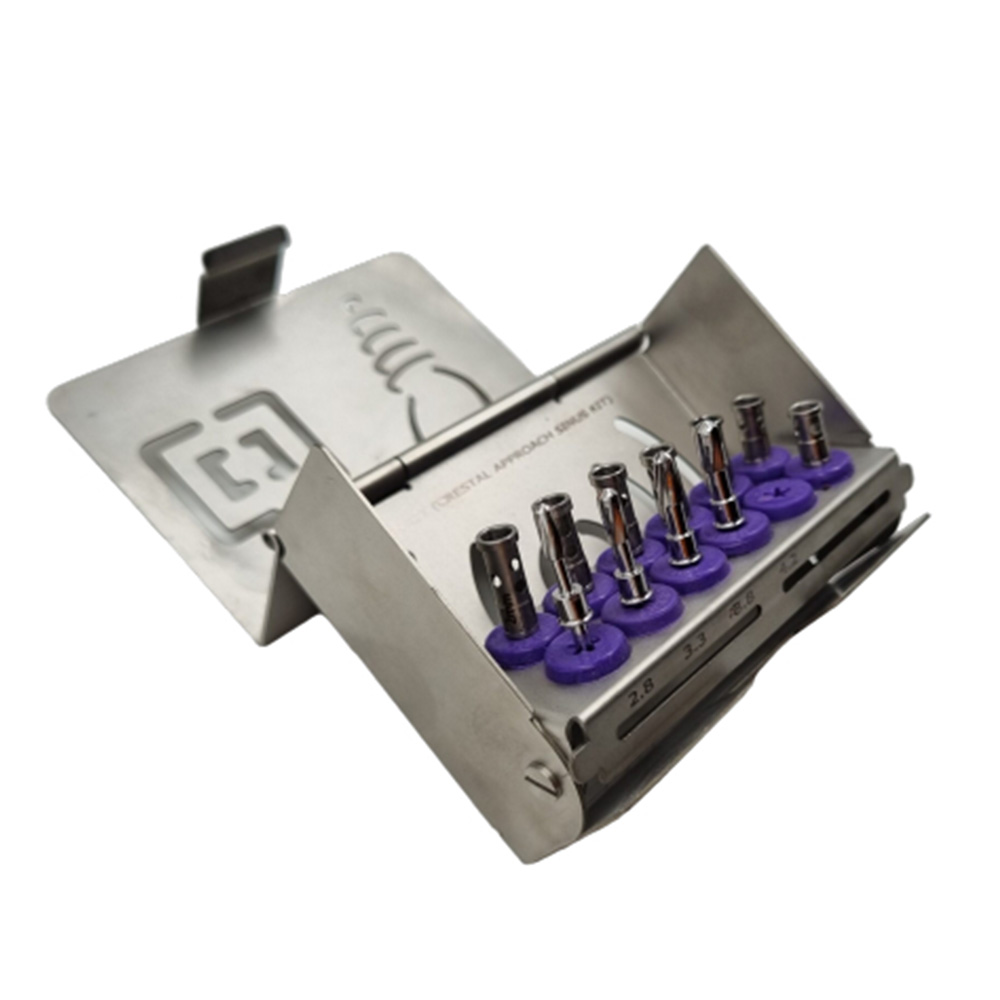

Cas Kit :

• 1 x Sinus Reamer 2.8mm.
• 1 x Sinus Reamer 3.3mm.
• 1 x Sinus Reamer 3.8mm.
• 1 x Sinus Reamer 4.2mm.
• 5 x Titanium Stopper (Size: 1mm,2mm,3mm,4mm,5mm)
• 1 x Drill Box: To manage, Autoclave, and store all the components together.
• 1 x Aqua Tip for Hydraulic Sinus Lifting.

Additional Information

Country of Origin: India

Manufacturer:
Jullundur Surgical Works (Jull-Dent)
240, Sonal Industrial Estate, 2nd Floor, New Link Road, Kanchpada, Malad (West), Mumbai – 400064, Maharashtra, India
Phone: +91 72899 99456

Packer:
Jullundur Surgical Works (Jull-Dent)
240, Sonal Industrial Estate, 2nd Floor, New Link Road, Kanchpada, Malad (West), Mumbai – 400064, Maharashtra, India
Phone: +91 72899 99456

Marketed By:
Jullundur Surgical Works (Jull-Dent)
Phone: +91 72899 99456
