Jinguang Butane Gas Micro Soldering Torch

Description

Jinguang Butane Gas Micro Soldering Torch is a versatile tool designed for precision tasks in dental work. Easy to operate with a lightweight design, it uses butane gas for efficient performance.

The torch features, an on/off double insurance self-locking switch for safety, and high-pressure injection technology for consistent use. With an inner pressure of 0.35 ± 0.05 MPa, a burning time of 20-40 minutes, and a maximum temperature of 1300℃/2500℉, this torch is perfect for professionals demanding accuracy and reliability.

Key Features

• Easy to operate, lightweight design.
• Uses efficient butane gas fuel.
• Adjustable flame control for precision.
• On/off self-locking safety switch.
• High-pressure injection technology.
• Flame adjustable from 20mm to 65mm.
• Maximum temperature of 1300℃/2500℉.

Specifications

• Model: ZB-8102

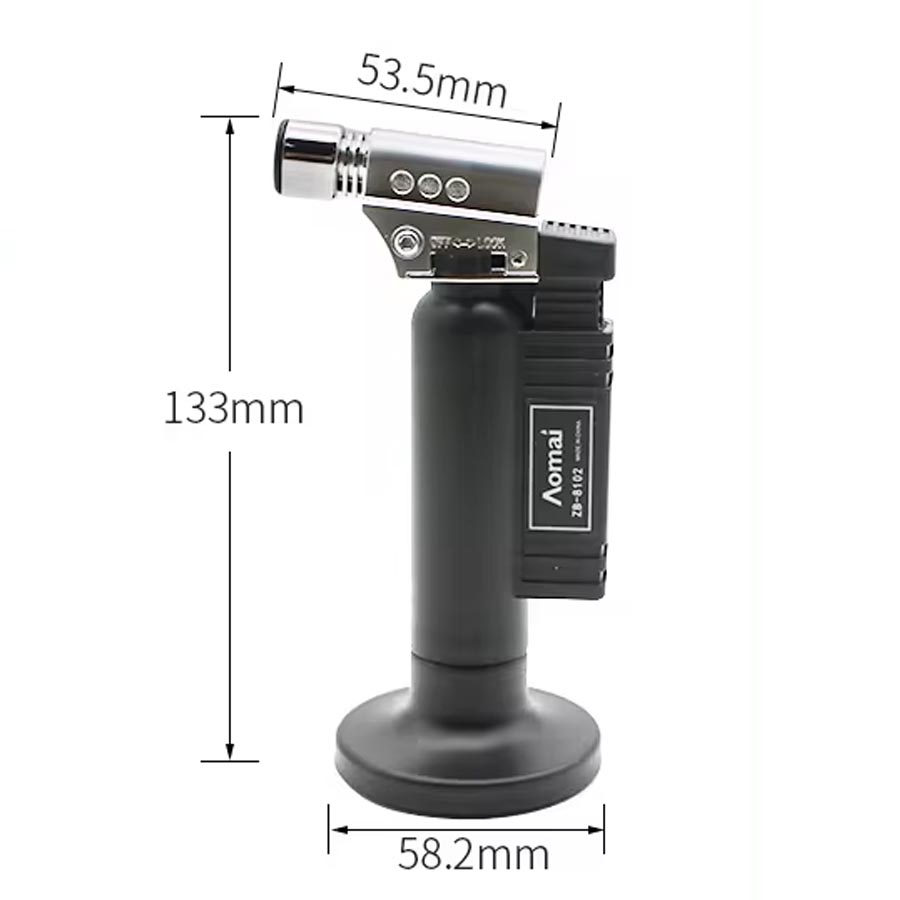

• Dimensions: 58.2 x 53.5 x 133 mm
• Weight: 115g
• Maximum Temperature: 1300℃ / 2500
• Inner Pressure: 0.35 ± 0.05 MP
• Outer Flame Maximum Range: 200mm
• Power Source: Power Source
• Safety Features: On/Off Double Insurance Self-Locking Switch
• Technology: High-Pressure Injection
• Pre-filled Gas: Doesn’t comes with pre- filled gas

Packaging

• 1 X Butane Gas Micro Soldering Torch
• 1 X Manual

  Click here to buy Butane Gas for the Jinguang Butane Gas Micro Soldering Torch

Directions for Use

Preparation:

• Ensure the air adjustment switch aligns with the holes before igniting the torch.

Ignition:

• Turn the ignitor button counterclockwise until you hear the sound of gas flow.
• Press the ignitor button to light the torch.

Adjusting the Flame:

• To reduce the flame strength, turn the ignitor button clockwise to decrease gas flow.
• To increase the flame strength, turn the ignitor button counterclockwise.
• Rotate the air adjustment switch to further refine the flame strength.
• The middle part of the blue flame can be adjusted within a range of 20mm to 65mm.

Using the Torch:

• Hold the torch securely and direct the flame towards the desired area.
• Maintain a safe distance and use appropriate safety equipment as needed.

Turning Off:

• Tighten the ignitor button in a clockwise direction to turn off the torch.
• Ensure the gas flow has completely stopped before storing the torch.

Safety Precautions:

• Always use the torch in a well-ventilated area.
• Keep away from flammable materials and surfaces.
• Do not leave the torch unattended while in use.
• Allow the torch to cool down before storing it.

Additional Information

Country of Origin: PRC

Manufacturer:
Jinguang
Daqiao Road, Xingyuanchang Village, Daqiao New District, Jiangxia District, Wuhan City, PRC

Packer:
Jinguang
Daqiao Road, Xingyuanchang Village, Daqiao New District, Jiangxia District, Wuhan City, PRC

Marketed By:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farrukhnagar, Gurugram, Haryana – 122506, India
Phone: +91 72899 99456

Warranty & Service

• Manufacturer/Importer warranty of 1 Years as applicable for this product
• Warranty does not apply against any physical damage to the product
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/usedare a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
