J Morita Tri Auto Mini Endomotor With Root ZX Mini Apex Locator Combo

Description

Tri-Auto Mini Endo Motor

The refined, compact design of Tri Auto mini’s head and body is very small and lightweight. With this handpiece by J MORITA, the dentist can experience the same tactile feedback as manual filing while various automatic controls reduce the risk of file jamming and breakage. Its slim design allows for easy access to posterior teeth with the ability to view both the canal openings and the pulpal floor during instrumentation. Another new and convenient feature is coordinated color change on the LCD display so that the user can easily recognize changes in speed, torque, file tip location, display type, etc. When connected to the Root ZX mini, the position of the file tip is monitored during the procedure, and many automatic functions such as Auto Apical Reverse can be activated.

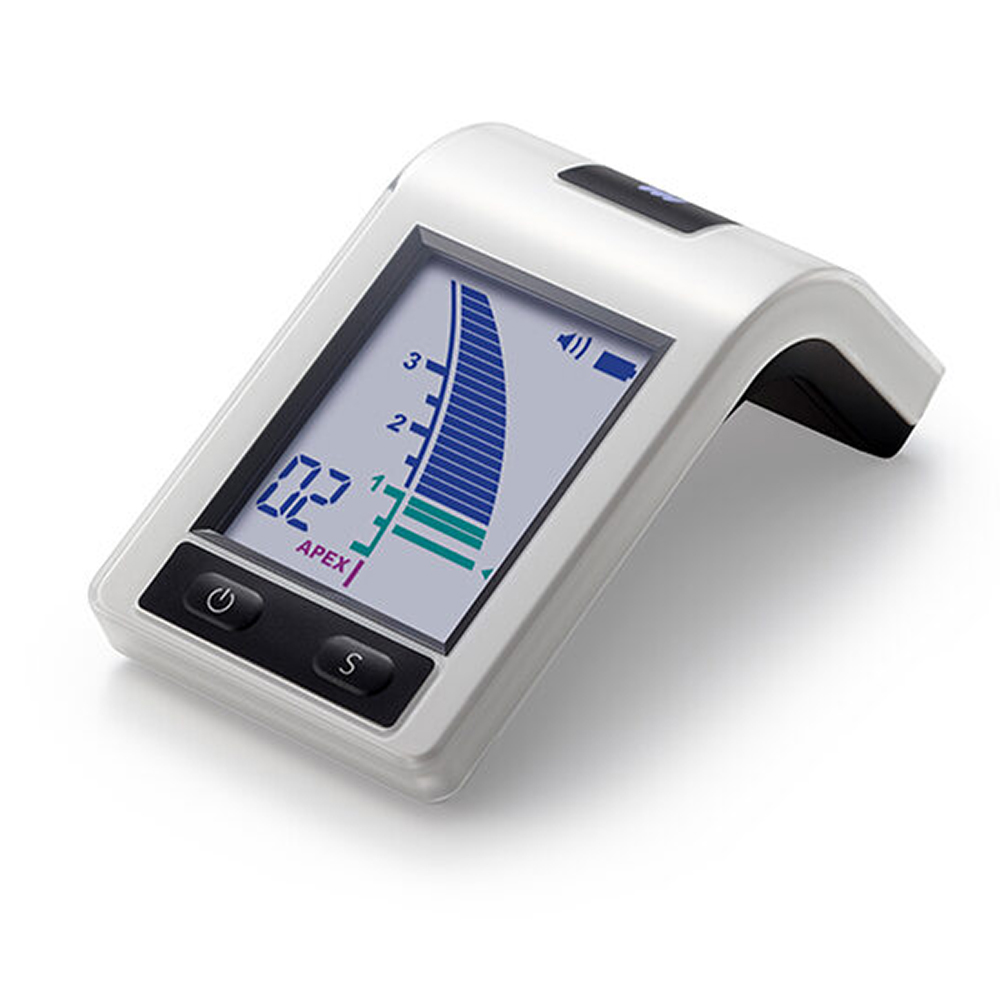

Root Zx Mini Apex Locator

The J Morita Root Zx Mini Apex Locator (RCM-7) is a cutting-edge dental device that revolutionizes the process of determining the precise location of the root canal apex. With its compact size and advanced technology, the Root Zx Mini offers unparalleled accuracy and convenience to dental professionals. Using the latest electronic measurement technology, the Root Zx Mini provides highly accurate and reliable readings, allowing dentists to precisely locate the apex of the root canal. This is crucial in endodontic procedures, as it ensures optimal treatment outcomes and reduces the risk of complications. The device features a clear and intuitive LCD screen that displays real-time measurements, enabling dentists to monitor the progress of the procedure with ease. Its compact design allows for comfortable handling and enhances overall efficiency during dental treatments.

Indications:

• Accurate Apex Localization: The Root Zx Mini helps determine the precise location of the root canal apex, ensuring optimal treatment outcomes.
• Endodontic Procedures: It is used during root canal treatments, including initial root canal therapy, retreatment cases, and apical surgery.
• Measurement of Root Canal Length: The device provides real-time and accurate readings of the root canal length, assisting in determining the appropriate instrumentation and irrigation protocols.
• Preventing Overfilling or Underfilling: By accurately measuring the root canal length, it helps prevent complications such as overfilling or underfilling, reducing the risk of post-operative pain, inflammation, or inadequate disinfection.
• Suitable for Primary and Permanent Teeth: The Root Zx Mini can be used in both primary and permanent teeth.
• Enhanced Precision: Its advanced electronic measurement technology ensures highly accurate and reliable readings.
• Clear LCD Display: The device features an intuitive LCD screen that displays real-time measurements, allowing dentists to monitor the progress of the procedure easily.
• Compact Design: The compact size of the Root Zx Mini enhances handling and overall efficiency during dental treatments.

Key Features

Tri-Auto Mini Endo Motor

Small head for excellent visibility

The head is only 9 mm in diameter making it easy to use and ideal for canal treatment. Its slim design allows for easy access to posterior teeth with the ability to view directly of the treatment field.

Automatic controls and settings

The TriAuto mini offers automatic controls for speed, rotation direction and torque that significantly increase the accuracy and safety of root canal treatment.

• Rotation Direction: Forward and Reverse
• Torque Reverse: 9 Torque Reverse settings
• Auto Controls: Auto Torque Reverse and Auto Torque Slow-down

Easy to read LCD display-even for left handed user

The user can easily read off scales, figures and letters from the clear and simple display screen. If the user is left-handed, the display can also be reversed for their convenience.

 TriAuto mini lies comfortably in the hand

Also suitable for the left-handed

Backlight color distinguishes type of displays

Display changes color: When linked to Root ZX mini, the display changes depending on the location of the file tip inside the canal to warn you and promote safe instrumentation.

The meter for file tip location appears in the display when the file is inserted in the canal. The meter moves along with the file tip to indicate its location inside the canal.

When the file reaches the apical region, the color of the display changes to green.

Wide speed range

Eleven speed settings are available from 50 rpm to 1,000 rpm. This is extremely convenient for different types of files and varying treatment needs.

Programmable settings

The combinations for speed, torque and other settings can be programmed. Simply select one of the six memory numbers to switch from one combination to another.

Module system

The appliance is upgraded with a measurement function if the TriAuto mini is connected to the Apex locator Root ZX mini via data transfer cable. With this, safety functions are made available which prevents over-preparation.

Root Zx Mini Apex Locator

• Compact Size: The Root Zx Mini is designed to be compact, allowing for easy handling and maneuverability during dental procedures. Its small size enhances comfort and convenience for dental professionals.
• Advanced Electronic Measurement Technology: The device utilizes advanced electronic measurement technology, which ensures highly accurate and reliable readings. This technology helps dental professionals precisely locate the apex of the root canal.
• Clear LCD Display: The Root Zx Mini features a clear and intuitive LCD screen that provides real-time measurements. The display allows dental professionals to monitor the progress of the procedure easily and view numerical values, visual indicators, and any audible signals.
• Multiple Measurement Modes: The device offers different measurement modes, including apex locator mode, which allows for accurate determination of the root canal apex. The availability of multiple modes adds versatility and adaptability to various clinical scenarios.
• Conductive Gel Compatibility: The Root Zx Mini is compatible with conductive gels or other suitable conductive mediums. These mediums ensure proper electrical contact between the device’s electrode and the tooth, enabling accurate readings.
• Battery Powered: The device can be powered by batteries, ensuring portability and flexibility in different clinical settings. Battery power allows for convenient use without the need for a continuous external power source.
• Adjustable Settings: The Root Zx Mini allows for the adjustment of various settings, such as sound volume and measurement units, according to the preferences and requirements of the dental professional.
• Suitable for Primary and Permanent Teeth: The device is suitable for use in both primary and permanent teeth, making it versatile and applicable in a wide range of patient cases.

Specifications

Tri Auto mini Handpiece

• Display: LCD
• Weight: 78 g
• Motor: 50 – 1,000 rpm
• Torque: 3.9 Ncm
• Battery (rechargeable): 3.7 V lithium-ion
• Diameter: 28 mm / Height: 150 mm
• Model: TR-CM
• Torque Reverse Settings (N/cm): 0.2, 0.4, 0.6, 0.8, 1.0, 1.5, 2.0, 2.5, 3.0
• Speed Range: No load( (rpm): 50±5 – 1,000 ±100
• Drive Mechanism: Electric Motor
• Cutting Tool Grip Type: Push Button Latch Type

Handpiece

Dimensions:

• Motor Handpiece: W 28 mm x H 27 mm x L 195 mm
• Head Diameter: 9 mm x H 11 mm
• Weight: 100 g, including contra-angle and lithium batteries
• Power Supply (battery): 3,7 V (lithium ion battery, rechargeable)
• Electric Shock Protection Class: Internal power supply
• Electric Shock Protection Degree: BF applied device

Charger

• Dimensions: W 68 mm x D 108 mm x H 85 mm
• Weight: 350 g
• Power Supply: AC 230 V
• Frequency: 50/60HZ
• Power Consumption: 5W
• Electric Shock Protection Class: Class II
• Classification: Regulated Medical Device (Class II) Special Maintenance Regulated Medical Device

Root Zx Mini Apex Locator

• Name: Root ZX Mini
• Model: RCM-7
• Electric power supply: DC 4.5V
• Output: 0.2W
• Weight: Approx. 3.9 ounces (110 g)
• Battery: 1.5 VDC AAA x 3(Included)
• Size: W 60 mm x D 103 mm x H 57 mm

Packaging

Tri-Auto Mini Endo Motor

• 1 x Handpiece, incl. contra-angle handpiece
• 1 x Battery
• 1 x Battery charger

Root Zx Mini Apex Locator

• 1 × Probe Cord
• 3 × File Holders
• 5 × Contrary Electrodes
• 1 × Canal-Length Tester
• 3 × DC 1.5 V AAA Size Battery

Directions for Use

Tri-Auto Mini Endo Motor

Assembling the Handpiece:

• Ensure the handpiece is properly assembled and connected to the unit.

Powering the Unit:

• Make sure the unit is charged and powered on. If the battery is low, charge it using the provided charger.

Setting the Parameters:

• Set the desired parameters for your endodontic procedure. These parameters include speed, torque, rotation direction, and any other relevant settings. You can program combinations if needed.

Inserting the File:

• Insert the endodontic file into the canal of the tooth you are working on. Make sure the file is properly inserted and secured in the handpiece.

Selecting the Right File Tip Location:

• If you have the Root ZX Mini connected, monitor the file tip’s location in the canal by observing the display. The display will change color to indicate the file tip’s position within the canal.

1. Commence Root Canal Procedure:

• Start the endodontic procedure. The handpiece will provide automatic controls for speed, torque, and rotation direction. It’s designed to prevent file jamming and breakage.

Monitoring the Procedure:

• Keep an eye on the LCD display for any changes in speed, torque, or file tip location. The display provides essential information during the procedure.

Completing the Procedure:

• Continue the endodontic procedure as necessary, and use the tactile feedback provided by the handpiece to ensure precise and safe instrumentation.

Auto Apical Reverse (if needed):

• If the Root ZX Mini is connected, it will monitor the file tip’s position, and automatic functions like Auto Apical Reverse can be activated when necessary.

Finishing the Procedure:

• Once you have completed the root canal treatment, carefully remove the endodontic file from the canal.

Charging the Unit:

• After use, recharge the unit as needed to ensure it’s ready for your next procedure.

Disconnecting and Storing:

• Disconnect any accessories, power off the unit, and store it in a safe and dry place.

Root Zx Mini Apex Locator

• Prepare the tooth: Begin by properly isolating the tooth with a rubber dam and ensuring a dry working field. Remove any temporary restorations or obstructions from the access cavity.
• Connect the device: Connect the Root Zx Mini to the power source or ensure that it has a sufficient battery charge. Attach the file holder to the device.
• Establish electrical contact: Apply a suitable conductive medium, such as a conductive gel, to the file holder’s electrode and attach it to the tooth. Make sure the electrode is in contact with the tooth surface.
• Set the device: Turn on the Root Zx Mini and select the desired measurement mode (e.g., apex locator mode). Adjust the settings according to the manufacturer’s instructions, such as sound volume and measurement units.
• Insert the file: Insert a pre-measured endodontic file or file tip into the root canal. Gently advance the file until it reaches resistance or the apex. Take note of the initial file length or reference point.
• Observe the display: Monitor the device’s LCD screen, which displays real-time measurements. Pay attention to the numerical values, visual indicators, and any audible signals that indicate the file’s position in the root canal.
• Determine the apex: As the file advances, observe the changes in readings on the device. Look for consistent measurements indicating that the file has reached the apex. Typically, the apex is considered reached when the device shows the file’s length to be constant or slightly short of the reference point.
• Confirm the measurement: To confirm the apex location, withdraw the file slightly and recheck the measurements. Repeat this step to ensure accuracy and reliability.
• Note the working length: Once the apex is determined, note the working length by measuring the file’s position relative to the reference point. Make sure to consider the desired apical stop position or any specific treatment objectives.
• Proceed with treatment: With the working length determined, proceed with the appropriate root canals treatment, such as cleaning, shaping, and obturation, following established endodontic protocols.

Additional Information

• Country of origin: Japan
• Manufacturer: J-Morita
