Frank Dental Cylinder Flat End Diamond Bur SF Series (Coarse)

Description

Frank Dental flat-end straight fissure coarse grit diamond burs (made in germany) are manufactured from the highest quality steel shanks using exquisite natural diamonds to match international specifications. This advanced manufacturing, using computer controlled precision engineering, ensures true concentricity and balance, minimising vibration and potential damage to handpiece bearings and at the same time improving cutting efficiency and product longevity.

Different grain sizes allow the targeted removal of specific volumes and maximum conservation of tooth substance. The burs are available in various sizes.

INDICATIONS :

• Cavity preparation.
• Tooth preparation for the placement of crowns, bridges, inlays, onlays or other restorations.
• Used when flat surfaces are needed.
• Creates flat floors,shoulders and straight walls.

Key Features

• Long life diamond burs.
• Quality control tested.
• High precision.
• Reduce clogging and improved cutting efficiency.
• Unique diamond application process ensures excellent diamond particle retention and cutting surface throughout multiple uses.
• Green color-coded band on the shank – coarse grain dental burs.
• Friction grip (FG) standard shank length.
• Autoclavable

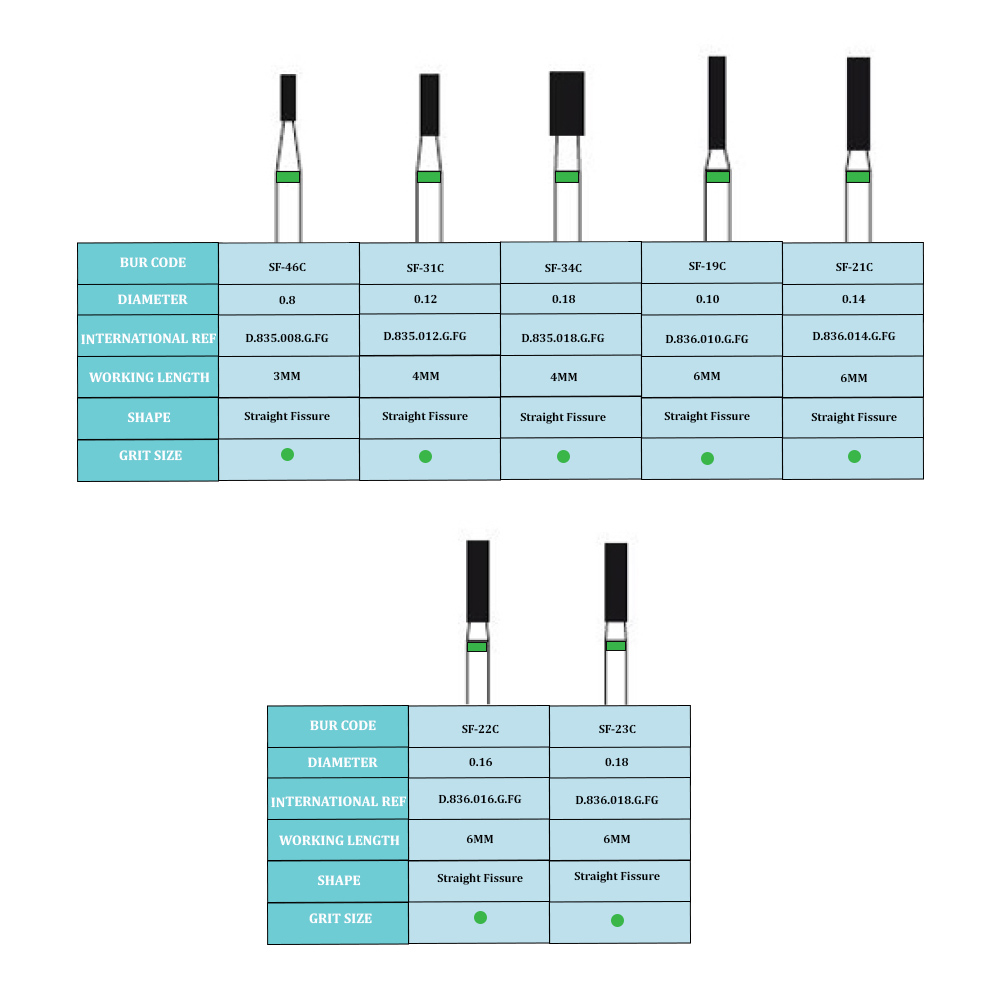

Specifications

• Shape – flat-end straight fissure.
• Grits available – coarse.
• Grit size – 107-181 microns.
• Shank type – friction grip.
• Construction – stainless steel.
• Color band on shank – green.

Packaging

• 1 x Bur (Pack Of 1)
• 1 x  SF-19C, SF-7C (pack of 5)

Directions for Use

• Sterilization: Ensure the bur is thoroughly cleaned and sterilized via autoclaving before clinical use, following standard infection control protocols.
• Handpiece Insertion: Insert the FG (Friction Grip) shank securely into a compatible high-speed handpiece. Confirm that the bur is properly seated and rotates concentrically.
• Clinical Application: Use the bur for reduction, cavity preparation, and shaping procedures, especially where aggressive cutting of enamel or restorative materials is required.
• Cutting Technique: Apply light, intermittent pressure to allow the coarse diamond particles to cut efficiently without excessive force. Maintain water spray throughout use to prevent heat buildup and enhance cutting performance.
• Visibility Maintenance: Rinse and air-dry the area periodically to maintain visibility and prevent clogging of the cutting surface.
• Post-Use Handling: After the procedure, remove the bur carefully from the handpiece, rinse off debris, disinfect, and sterilize before the next use.
• Storage: Store in a clean, dry bur block or sterilized container to maintain sharpness and avoid contamination.

Additional Information

Country of Origin: Germany

Manufacturer:
FRANK Dental GmbH
Tölzer Str. 4, 83703 Gmund am Tegernsee, Germany

Packer:
FRANK Dental GmbH
Tölzer Str. 4, 83703 Gmund am Tegernsee, Germany

Imported By:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farrukhnagar, Gurugram, Haryana – 122506, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product.
