Eighteeth Medical E-connect S Endomotor

Description

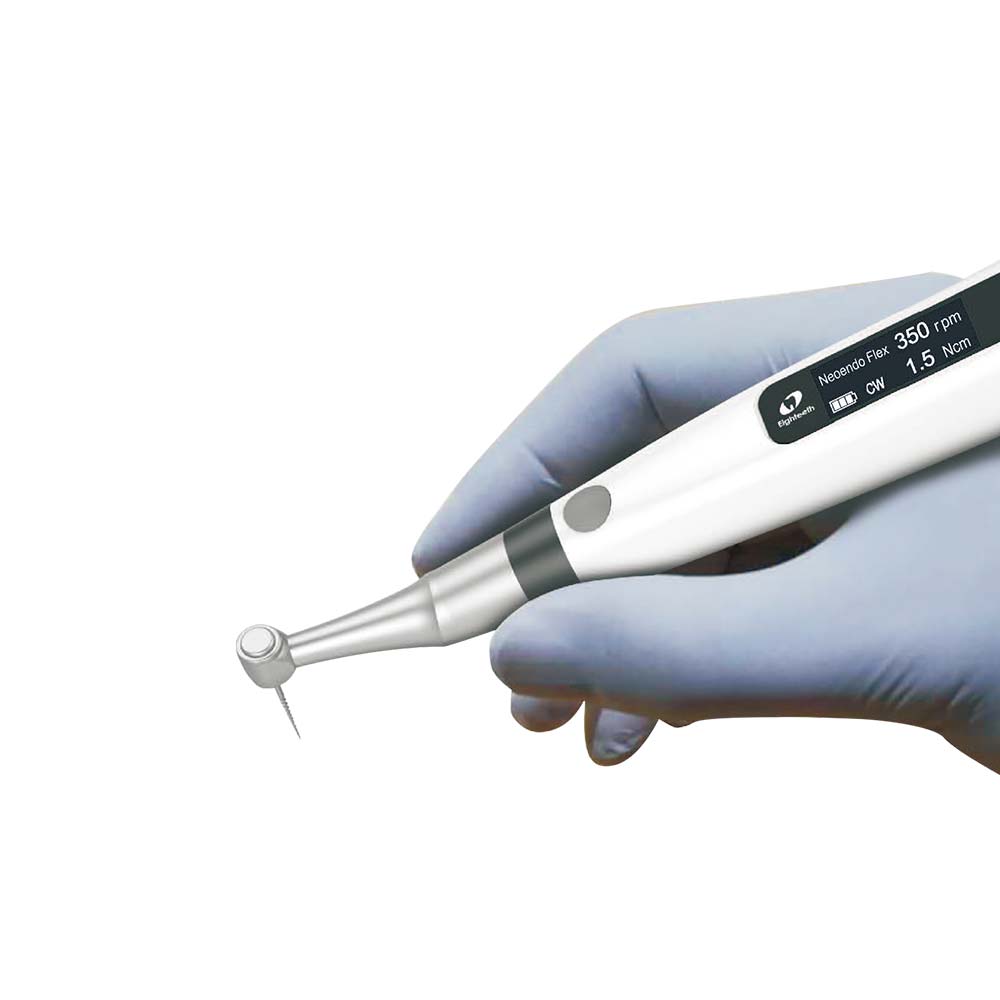

The latest model of E-connect S endomotor has rotational speed ranging from 100 to 1000 RPM. It has an efficient and reliable brushless motor. The multi-frequency technology used in the inbuilt Apex locator equips high precision and accuracy for the treatment.

Key Features

• Auto torque reverse, reduce the possibility of file broken in tooth.
• Reciprocating mode: 5 modes of reciprocating cutting make operation safe and effective.
• More advanced functions: Right & Left hand converting, Self-calibration, volume adjustment etc.
• 340° adjustable miniature head provide excellent visibility
• Original import motor with low noise and long life.
• Counter Clockwise Continuous Rotation
• Reciprocation Movement
• First-in-class cordless open motor with adjustable angles of rotation ranging from 30° to 370° for reciprocation as per user’s need.
• The first-in-class feature of speed adjustment in reciprocation mode.
• AdaptiveTorque Control ATC manages the file stress in a smart way. When a torque limit is reached. Instead of going into reverse mode, motor reciprocates till the stress is reduced. Once back to below pre-set torque level, a file will again rotate in continuous rotation.

 Integrated mode features :

• Auto Start & Stop – Motor starts moving when the file enters inside root canal, and stops when withdrawn
• Apical Reverse -When the file reaches the pre-set apical reverse point, a user can define whether the file starts moving in a reverse direction
• Apical Slow Down -To preserve the cemento-dentinal junction and avoid file separation, a speed of motor slows down when a file is in the apical region

Specifications

• Continuous Rotation – Speed 100 to 1000 RPM
• Rotational Speed Range -120-1000
• RPM Torque Range – 0.5- 4.0 Ncm
• Memory Programs – 11( M0 to M10)
• Battery Capacity – 1500 mAh

Packaging

• 1 x Handpiece
• 1 x Contra-angle
• 1 x Charging base
• 1 x Adapter
• 1 x Measuring wire
• 1 x Insulating sleeve
• 2 x Lip hooks
• 2 x File clips
• 1 x Instruction manual

Directions for Use

Power On and Off:

• To turn on the device, press and hold the power button for more than 0.5 seconds.
• To power off the device, hold down the power button and follow the specified procedure.

Operation Modes:

• Confirm that the selected operation mode (FWD, REV, REC, ATC) is appropriate for the specific dental procedure.
• Use the “<” or “>” buttons to adjust and customize operation mode settings if needed.

Speed and Torque Settings:

• Adjust the speed setting within the range of 120 rpm to 1000 rpm.
• Adjust the torque setting from 0.5 N·cm to 4.0 N·cm, with the option for torque reverse less (R.L).

Apex Locator and Apical Action:

• Utilize the integrated apex locator for real-time feedback on file positioning.
• Customize apical action settings, such as Reverse, SlowDown, Stop, or Off, as needed.

Preset Programs:

• Access preset programs for common file systems by long-pressing the designated button during standby state.
• Change parameters within preset programs for customization.

Auto Stop and Apical Reverse:

• Enable or disable the auto-stop function when the endo file is out of the root canal.
• Adjust apical reverse settings for precise control during length determination.

FWD and REV Angle Adjustment:

• Adjust the forward angle (FWD Angle) and reverse angle (REV Angle) during REC and ATC operation modes for optimal control.

Software Update:

• Easily update the software without additional tools by holding down the “S” button and pressing during the power-off state.

Safety Precautions:

• Always follow the safety guidelines outlined in the device manual.
• Ensure proper sterilization of components between uses.

Contact Distributor for Support:

• For any software updates or technical assistance, contact your distributor.

Additional Information

• Country of Origin: PRC
• Manufacturer: Eighteeth
