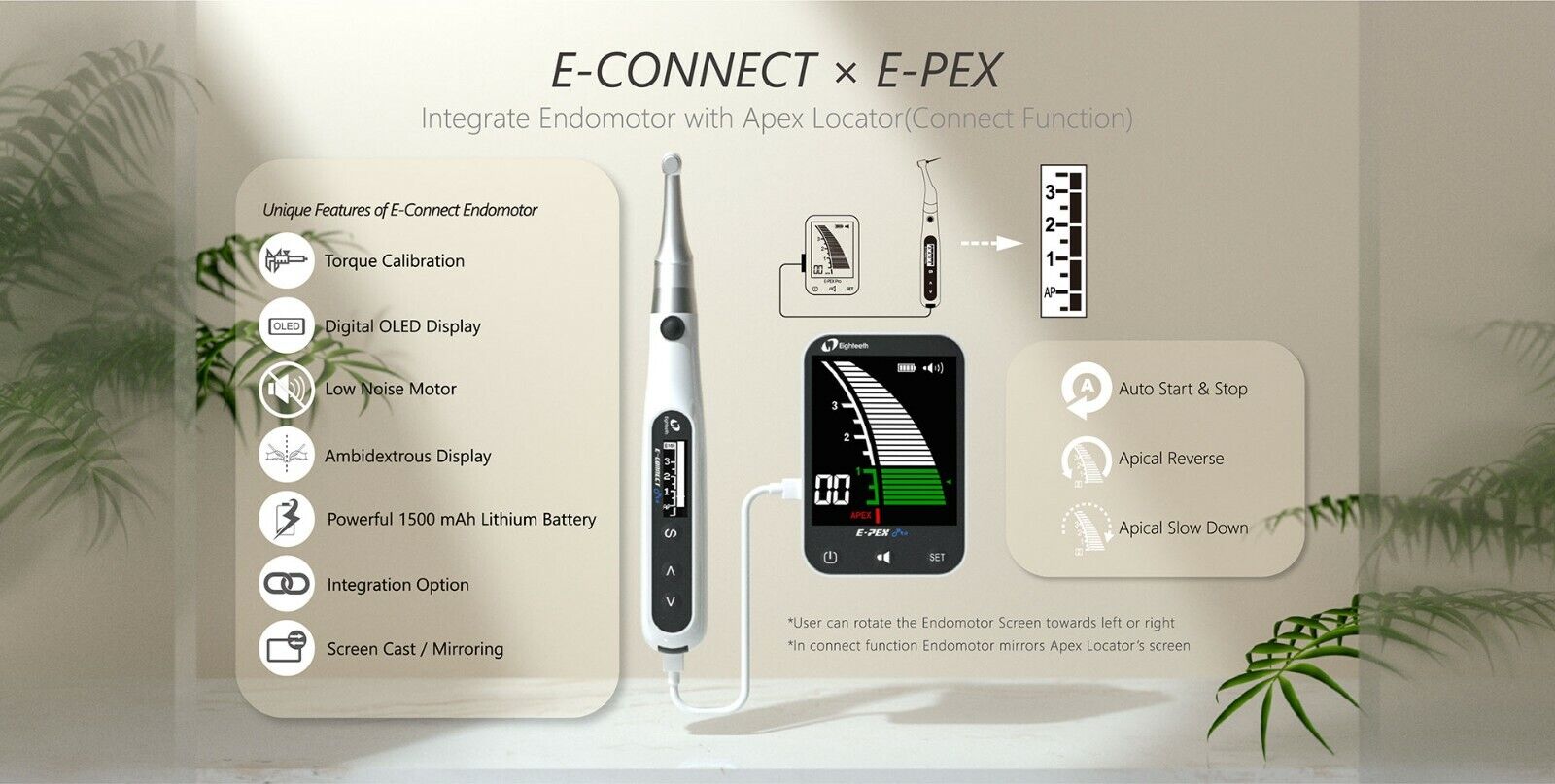

Eighteeth Medical E-Connect Endomotor with E-Pex Apex Locator Combo

Description

EIGHTEETH E-CONNECT ENDOMOTOR – Eighteeth Medical give the most cost efficient, feature-rich cordless endo motor in the industry to equip you endodontic procedures.

• The contra angle can be 340 degrees rotated, making it easy to watch the LCD in treatment. It gives comfort while working on all teeth
• Miniature Head : Provides excellent visibility while working
• Quick and simple programmable modes for torque, speed, continuous rotation/ reciprocation modes.
• Continuous Mode: 6 Memory Programs to set rotation speed, torque and direction
• Reciprocation Mode: 5 Modes with 4 forward and 1 reverse reciprocation
• Auto Torque Reverse: Reduces the possibility of instrument separation inside the canal
• Reciprocation mode for regular rotary files like Neoendo Flex
• Reciprocation for reciprocatory files
• Ambidextrous: Adjustable for both left and right hand operations
• Torque Calibration: In-built in the endomotor

Functions activated when integrated with E-PEX (apex locator)

• Auto Start-stop- Motor starts moving when the file enters the canal and stops when withdrawn
• Apical Reverse- When the file reaches pre-set apical reverse point, user can define wether the fle starts moving in reverese direction
• Apical Slow Down- To preserve the cemento dental junction and avoid file-separation, speed of motor slows down when the file is near apical region
• Apical Torque Reduction- In addition to apical slow down, torque reduction at apical third prevents chances of file separation.

EIGHTEETH E-PEX APEX LOCATOR

• 4th Generation – Based on advanced multi-frequency network impedance measurement technology
• LCD Display: Bright and clear display
• High precision of apical foramen localization in wet and dry canals
• Automatic calibration: Ensures stable and accurate measurements
• Compact size and stable design allows for excellent flexibility during procedures
• Adjustable keys and alarm volume
• Bright LCD with color-coded measurements:

* When the file reaches the front region of the apical foramen, the screen displays the white indicated strips
* When the file reaches the position nearby the apical foramen, the screen displays the green indicated strips
* When the screen light the red indicated strips, means the file has exceeded the apical foramen, a rapid beep sound will be generated at the same time

Functions activated when integrated with E-CONNECT(endomotor)

• Auto Start-stop- Motor starts moving when the file enters the canal and stops when withdrawn
• Apical Reverse- When the file reaches the pre-set apical reverse point, user can define whether the file starts moving in a reverse direction
• Apical Slow Down- To preserve the cemento dental junction and avoid file-separation, speed of motor slows down when the file is near apical region
• Apical Torque Reduction- In addition to apical slow down, torque reduction at apical third prevents chances of file separation.

Key Features

Specifications

Packaging

E-CONNECT Endomotor

• 1 x E-CONNECT Handpiece
• 1 x Data Transfer Cable
• 1 x Contra-angle
• 1 x Adaptor

E-PEX Apex Locator

• Measuring Wire
• File Clip-2
• Lip Clip-2
• Tester
• Adaptor

Directions for Use

Charge the Batteries:

• Ensure that both the endomotor and apex locator batteries are fully charged before beginning the procedure.

Assemble the Handpiece:

• Connect the contra angle handpiece to the E-Connect Endomotor securely.



Power On the Endomotor:

• Turn on the E-Connect Endomotor using the designated power button.

Select Operating Mode:

• Choose the operating mode (continuous or reciprocation) based on the requirements of the procedure.

Set Parameters:

• Adjust the rotational speed and torque settings according to the specific needs of the root canal treatment.

Insert Endodontic File:

• Gently insert the endodontic file into the canal, ensuring it is securely in place.

Utilize Integrated Features (with E-Pex Apex Locator):

• Take advantage of integrated features such as auto start-stop, apical reverse, slow down, and torque reduction for enhanced precision and safety.

Complete the Procedure:

• Conduct the endodontic procedure, monitoring the LCD screen for relevant information and adjusting settings as needed.

Auto Calibration:

• Allow the E-Pex Apex Locator to perform automatic calibration for accurate measurements.

Set Preferences:

• Configure preferences such as alarm volume and adjust keys to your liking.

Insert Endodontic File:

• Simultaneously with the E-Connect Endomotor in use, insert the endodontic file into the canal.

Monitor LCD Screen:

• Observe the 3.5-inch LCD screen for color-coded measurements, indicating the file’s position relative to the apical foramen.

Utilize Integrated Features (with E-Connect Endomotor):

• Take advantage of features like auto start-stop, apical reverse, slow down, and torque reduction for a more coordinated and controlled procedure.

Complete the Root Canal Treatment:

• Follow the screen indications and complete the root canal treatment with confidence.

Additional Information

• Country of Origin: PRC
• Manufacturer: Eighteeth

Warranty & Service

• Manufacturer/Importer warranty of 1 Year against manufacturing defect
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or does not tamper as the case may be.
