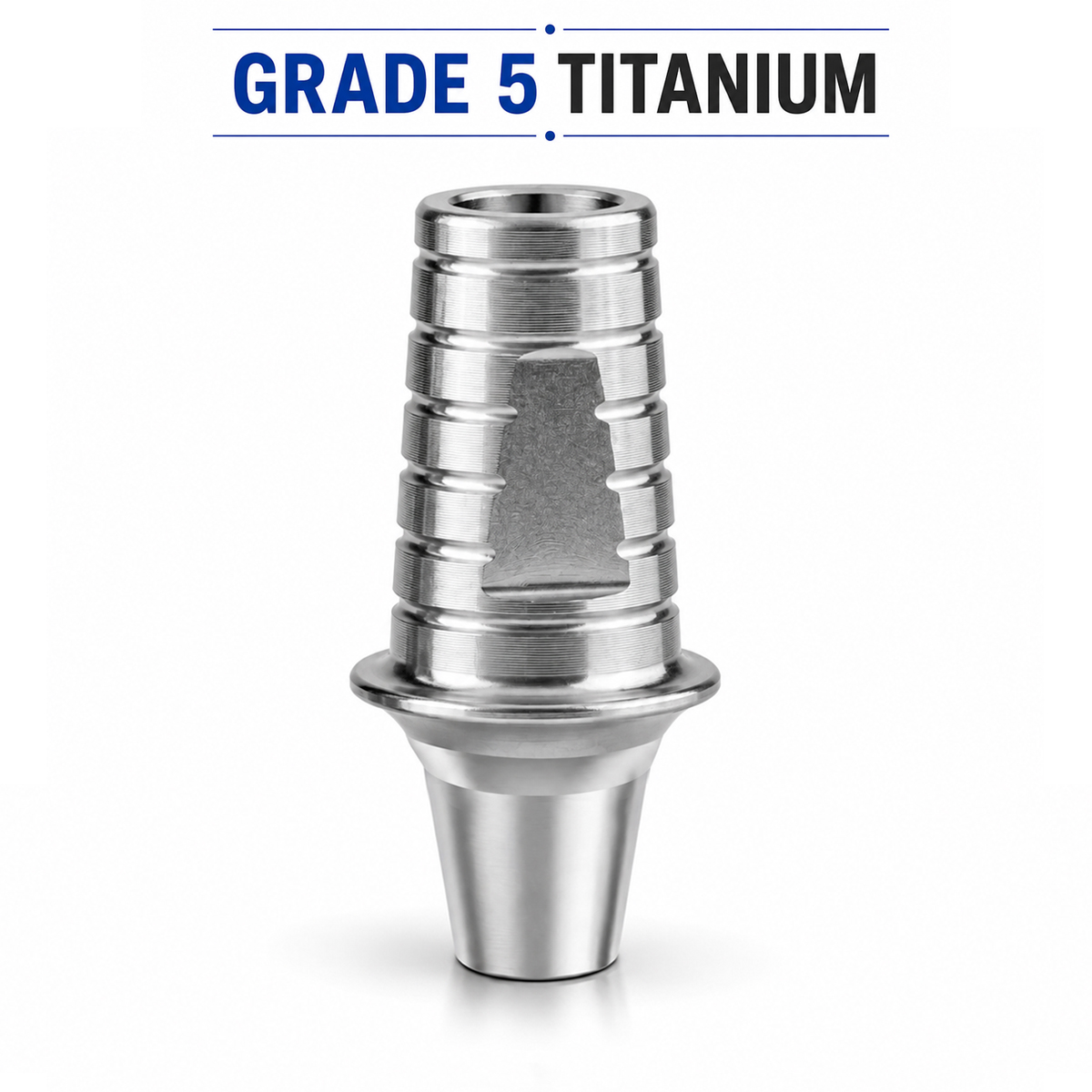

Dentaltech Neodent Compatible Ti Base – Non Hex

Description

Dentaltech Neodent Compatible Ti Base – Non Hex is a precision-engineered implant prosthetic component designed for screw-retained restorations on compatible Neodent implant systems. Manufactured from high-strength Grade 5 Titanium, it offers outstanding mechanical strength, corrosion resistance, and excellent biocompatibility for long-term restorative success.

The Non-Hex (Non-Engaging) design is specifically developed for multi-unit restorations, including splinted crowns, implant-supported bridges, where passive seating across multiple implants is essential. It serves as a stable bonding interface for zirconia, lithium disilicate, and hybrid CAD/CAM restorations while ensuring an accurate implant-to-restoration connection. Precision CNC machining delivers excellent fit, minimizes micro-movement, and supports predictable restorative outcomes in both digital and conventional implant workflows.

Key Features

• Manufactured from high-strength Grade 5 Titanium
• Non-Hex (Non-Engaging) design
• Provides a stable foundation for CAD/CAM prostheses
• Precision-machined for excellent implant-to-restoration fit
• Supports zirconia, lithium disilicate, and hybrid restorations
• Excellent corrosion resistance and biocompatibility
• Promotes passive seating across multiple implants
• Compatible with digital and conventional restorative workflows
• Compatible with Neodent Implant System

Specifications

• Product Type: Ti Base
• Design: Non Hex (Non-Engaging)
• Material: Grade 5 Titanium
• Compatibility: Neodent Implant System Compatible
• Restoration Type: Screw-Retained Multi-Unit Restorations
• Indications: Splinted Crowns, Bridges
• Compatible Restorative Materials: Zirconia, Lithium Disilicate, Hybrid CAD/CAM Restorations
• Clinical Use: Implant Prosthodontics

Packaging

Dentaltech Neodent Compatible Ti Base – Non Hex

• 1 x Ti BAse
• 1x Screw

Directions for Use

1. Digital Impression

• Position the implant-specific scan body on the fixture or master cast analogue.
• Capture the implant position using an intra-oral or laboratory desktop scanner.
• Alternatively, take a pick-up impression with an implant-level transfer coping and pour a cast with a laboratory analogue.

2. Restoration Design and Fabrication

• Design the restoration in CAD software
• Maintain a minimum abutment sleeve height of 4 mm for adequate bonding surface.
• Mill in zirconia, lithium disilicate or hybrid ceramic.

3. Extra-Oral Cementation

• Lute the restoration to the Ti Base using a dual-cure hybrid-abutment resin cement
• Seat under uniform digital pressure, remove excess cement, and photopolymerise for recommended time.
• Obturate the screw access channel with PTFE tape and polish the crown-to-Ti Base junction.

4. Intra-Oral Delivery

• Remove the healing abutment and irrigate the implant well with sterile saline.
• Seat the bonded assembly and confirm complete passive seating radiographically.
• Insert the prosthetic screw and hand-tighten before final torquing.

7. Torque Application

• Apply torque with a calibrated torque wrench per the implant manufacturer’s specification.

8. Screw Access Closure

• Insert PTFE tape into the screw access channel to protect the screw head.
• Seal the coronal two millimetres with a light-cured composite resin.
• Verify occlusal contacts in centric and excursive movements; adjust and polish.

Additional Information

Country of Origin: India

Manufacturer:
Kamal Encon Industries Limited
Plot No. 917, IMT Faridabad, Sector 68, Faridabad , 121001, India
Phone: +91 72899 99456

Packer:
Kamal Encon Industries Limited
Plot No. 917, IMT Faridabad, Sector 68, Faridabad,121001, India
Phone: +91 72899 99456

Marketed By:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farrukhnagar, Gurugram, Haryana , 122506, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product
