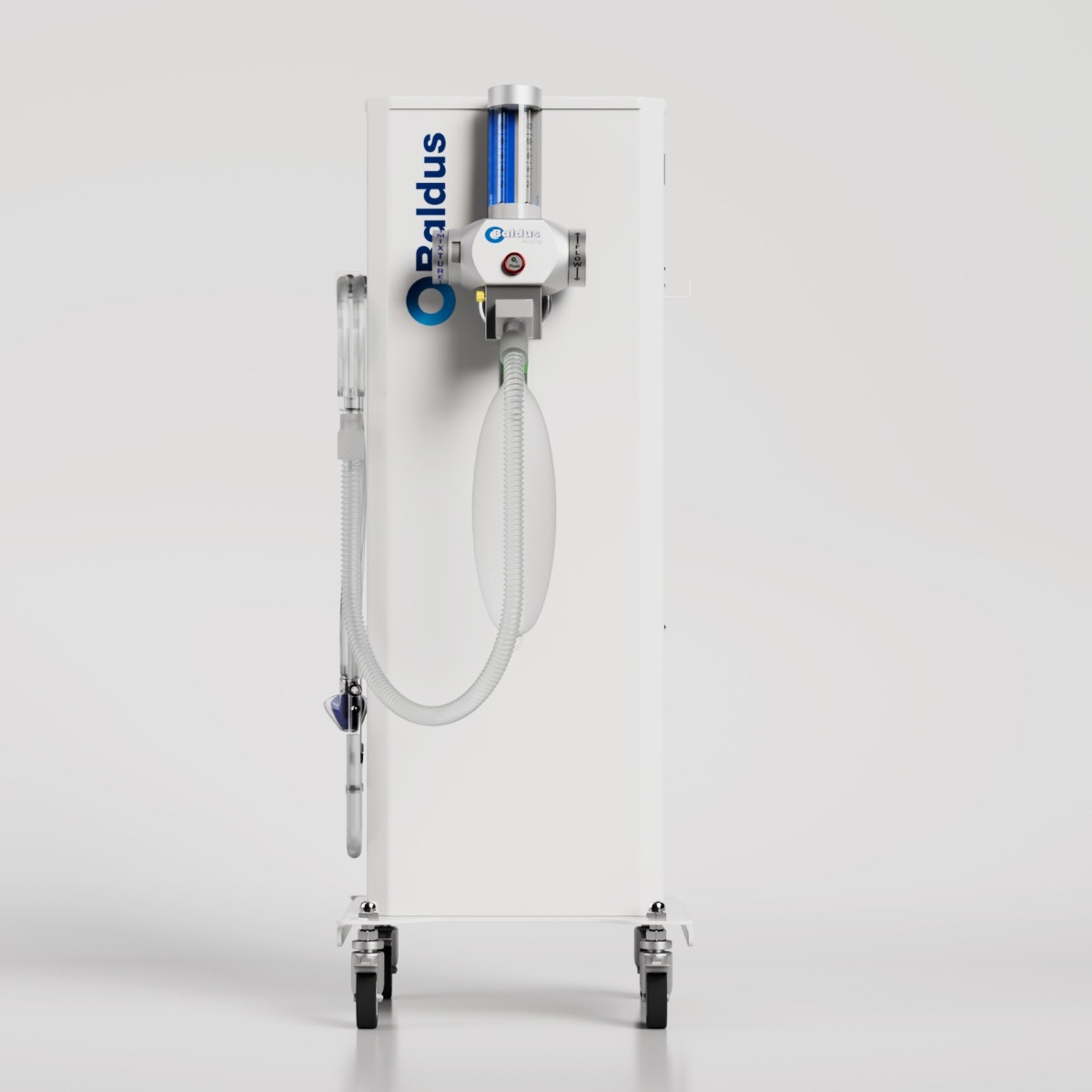

Baldus Analog -70 Oxygen-Nitrous Oxide Mixer Sedation Unit with Encased Cart

Description

Baldus Sedation Unit (Analogue)

The Mixer Unit Baldus Analog is a versatile addition to contemporary healthcare environments, offering a seamless fit into the practice atmosphere. Its primary focus is on patient comfort, with a remarkable maximum total flow of 15 liters per minute. Safety is a central concern, evident through its integrated advisory tone that promptly alerts the operator in the event of an oxygen shortage.You do not need a power connection for analogue nitrous oxide sedation and can sedate completely independently.When developing the analog nitrous oxide device, the focus was on safety and robustness as well as handling.The device also boasts a red-marked O2 flush button on the front panel for immediate and straightforward oxygen supply, ensuring the utmost safety during sedation procedures. One notable feature is the easily readable display of nitrous oxide concentration, making it highly accessible for both dentists and the dental team. This device strikes a balance between efficiency and safety, making it an indispensable tool for dental practices. It prioritizes patient well-being and user-friendliness, creating a conducive environment for safe and comfortable sedation procedures.

• Intelligent arrangement of the valve for fresh air intake
• Max. Mixing ratio selectable between 50%, 60% or 70% N2O (standard delivery 70%)
• Automatic adjustment of the output flow (one-button operation)
• ISO color coding for EU
• Oxygen flush for immediate oxygen supply – best accessibility thanks to its “red” color on the front of the device
• Premium security package
• Check valve
• Rebreathing stop (with empty breathing bag)
• Connection for O2 demand mask
• Standard-compliant coding of the gas types
• US Patented No. 10,065,1590B2

Key Features

• Lightweight and safe to use.
• Easy cleaning
• It can sedate completely independently.
• The Bag-T has a check valve that prevents breathing back into the bag.
• One-button control.
• Breathing bag 3 liters latex-free and autoclavable
• Connection for O2 demand mask.
• Emergency alarms in case of a lack of O2.
• 92% stainless steel and aluminum.
• No power supply is required.
• CE and FDA certified.
• Maximum total flow rate 15 l / min.
• Intelligent arrangement of the valve for fresh air intake
• Tamper-proof
• Easy reading of the laughing gas concentration

Specifications

• N2O limitation: 70%
• Maximum Total Flow: 15 l / min
• Security Package: Premium
• Dimensions: 108 x 38.5 x 29 cm
• Weight: 25 kg
• Color: Matt white

Packaging

• 1 x Baldus analog nitrous oxide device
• 3 x Disposable adult double nose masks blueberry
• 3 x Disposable children’s double nose masks strawberry
• 1 x Complete tubing set with connectors
• 1 x Baldus vacuum control block with inline flow measurement
• 1 x Breathing bag 3 liters
• 1 x Ultraslim cylinder pressure regulator O2 incl. Med. Fabric hose
• 1 x Ultraslim cylinder pressure regulator N2O incl. Med. Fabric hose

Directions for Use

Setup and Inspection:

• Ensure the machine is placed in a suitable location in your practice.
• Inspect the equipment for any visible damage or issues before each use.

Connect Gas Sources:

• Connect the nitrous oxide and oxygen gas sources to the appropriate inlets on the machine.

Adjust Flow Rates:

• Set the desired flow rates for nitrous oxide and oxygen based on the patient’s requirements. The Baldus Analog has a maximum total flow of 15 liters per minute.

Safety Check:

• Check that the integrated advisory tone system is operational. It will alert you in case of an oxygen shortage.

Start Sedation:

• Once all settings are in place, start the sedation procedure by directing the sedation gas mixture to the patient via the appropriate delivery method, such as a mask or nasal hood.

Monitoring:

• Continuously monitor the patient’s condition during the sedation process, including vital signs and response to sedation.

Adjust as Needed:

• You can easily adjust the nitrous oxide concentration to maintain the desired sedation level for the patient.

Conclude Sedation:

• Once the procedure is complete, stop the sedation by discontinuing the flow of nitrous oxide and oxygen.

Disconnect Gas Sources:

• Disconnect the gas sources and turn off the machine.

Cleaning and Maintenance

Cleaning:

• Turn Off and Disconnect: Before cleaning, ensure that the nitrous oxide unit is turned off and disconnected from gas sources.
• Exterior Wiping: Use a clean, damp cloth with a mild, non-abrasive disinfectant to wipe down the exterior of the unit. Pay attention to buttons, controls, and any visible surfaces. Avoid excess moisture, especially around electrical components.
• Filters: If your unit has filters, check them regularly and replace them according to the manufacturer’s recommendations.
• Tubing and Hoses: Inspect and clean the tubing and hoses. Use a mild disinfectant solution and ensure they are thoroughly dried before reconnecting.

Maintenance:

• Scheduled Maintenance: Follow the manufacturer’s recommended maintenance schedule. This typically includes periodic servicing by qualified technicians.
• Gas Source Inspection: Ensure the gas sources are properly connected and in good condition. Leaks in gas lines can be hazardous and should be addressed immediately.
• Replace Components: Over time, components like seals, gaskets, and O-rings may wear out. Replace them as needed to maintain airtight connections and prevent leaks.
• Calibration: Periodically calibrate the unit to ensure accurate gas concentration delivery.
• Documentation: Keep detailed records of maintenance and servicing to ensure compliance with regulatory requirements and to track the unit’s history.
• Training: Ensure that your staff is adequately trained in the operation, maintenance, and cleaning procedures.

Additional Information

Country of Origin: Germany

Manufacturer:
Baldus Sedation GmbH & Co. KG
In der Langfuhr 32, 56170 Bendorf, Germany

Packer:
Baldus Sedation GmbH & Co. KG
In der Langfuhr 32, 56170 Bendorf, Germany

Marketed By:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farrukhnagar, Gurugram, Haryana – 122506, India
Phone: +91 72899 99456
