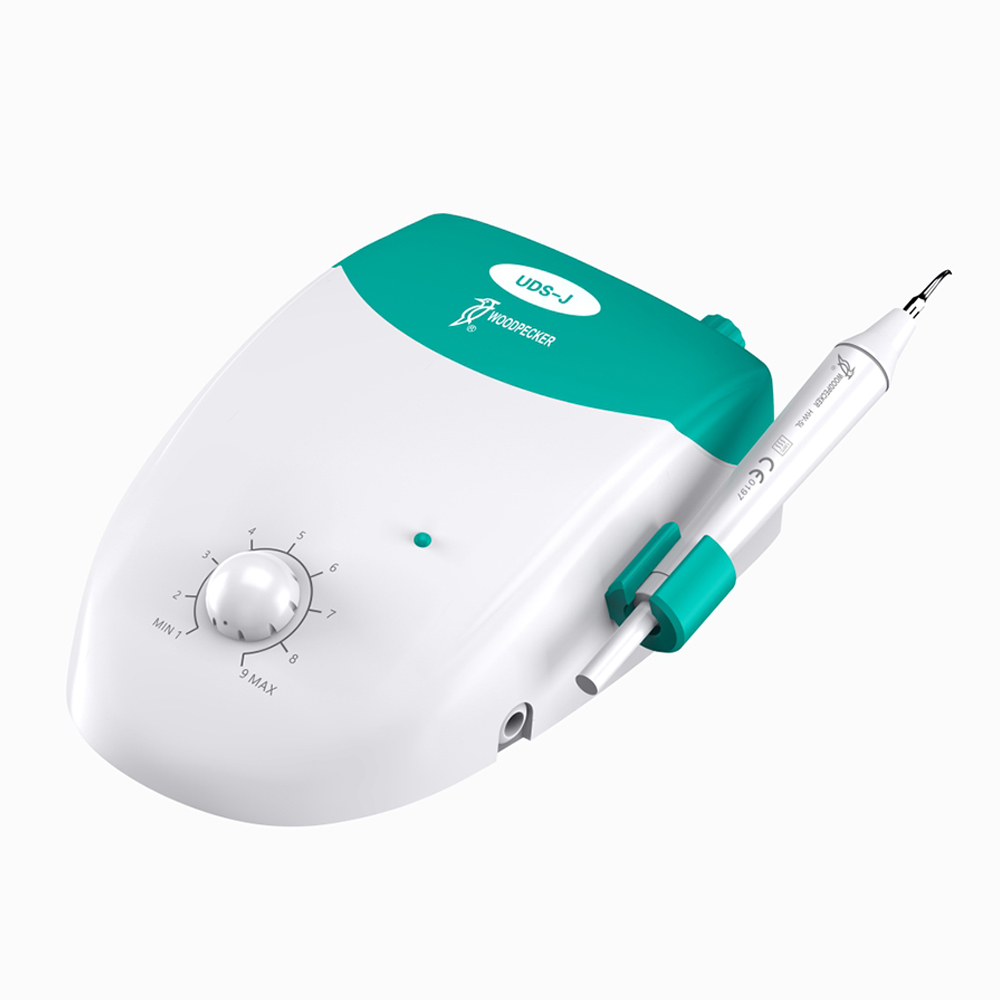

Woodpecker UDS-J Ultrasonic Scaler (5 scaler Tips FREE)

Description

The UDS-J Ultrasonic Scaler is an advanced dental device designed to aid in the effective cleaning and treatment of teeth. This state-of-the-art scaler features a sealed handpiece, ensuring optimal hygiene and preventing cross-contamination between patients. The handpiece’s design allows for easy maneuverability and reduces hand fatigue during extended use. With two specialized modes, scaling, and perio, the UDS-J scaler offers versatility in addressing various oral hygiene needs. The scaling mode is designed for general plaque and calculus removal on the tooth surfaces, while the perio mode focuses on subgingival cleaning and treatment of periodontal pockets. This allows dental professionals to provide tailored treatments and comprehensive oral care.

Equipped with advanced ultrasonic technology, the UDS-J scaler produces powerful vibrations at an optimal frequency. These vibrations, transmitted through the scaling tips, create mechanical energy that effectively breaks down and removes stubborn deposits from the teeth’s surfaces and interdental spaces. The scaler’s precise control system allows dental professionals to adjust the power output, ensuring accurate and efficient cleaning while minimizing discomfort for patients. Furthermore, the UDS-J scaler incorporates an adjustable water flow system that helps flush away debris and cool the treated area. This continuous water spray enhances visibility and maintains a clean operating field, enabling precise and controlled scaling.

Key Features

• Efficient plaque and tartar removal
• Adjustable power levels for personalized treatment
• Water cooling and irrigation for patient comfort
• Variety of interchangeable tips for different procedures
• Easy to use with ergonomic design
• Easy maintenance and cleaning
• Compact and portable for convenience
• Safety features for reliable operation
• Compatible with standard power outlets
• User-friendly interface for intuitive operation

Specifications

• Power supply input: 220-240V 50Hz/60Hz 150mA
• Main unit input: 24V- 50Hz/60Hz 1.3A
• Output power: 3W to 20W
• Output tip vibration frequency: 30kHz±3kHz
• Output half-excursion force: <2N
• Output primary tip vibration excursion: ≤100μm
• Main unit fuse: T1.6AL 250V 1.3.8 Power supply fuse: T0.5AL 250V
• Water pressure: 0.01MPa to 0.5MPa
• Main unit weight: 0.8 kg
• Power supply weight: 1 kg

Packaging

• 1x Main unit
• 1 x Handpiece
• 1 x Footswitch
• 5 x Tips (3 x G1, 1 x G2, 1 x P1)
• 1 x Adapter
• 1 x Torque wrench
• 1 x Operation manual
• 1 x Water Tube

Directions for Use

Setup and Preparation:

• Ensure all components are present according to the packing list.
• Place the main unit on a stable surface in front of the operator.
• Turn the water control knob to the maximum in a clockwise direction.
• Adjust the potentiometer to a suitable position by aligning the pit of the potentiometer with the “1” dial on the corner.
• Connect the foot switch to its socket.
• Attach one end of the water pipe to the water entrance and connect the other end to a clean water source.
• Connect the power supply output to the main unit and plug it into a power outlet.
• Press the power switch on the main unit, and the power indicator will illuminate.

Operating the Ultrasonic Scaler:

• Put on appropriate personal protective equipment, such as gloves and eyewear.
• Select the desired tip for the specific dental procedure, referring to the separate instruction manual for tips.
• Gently hold the handpiece with a firm grip.
• Position the tip perpendicular to the tooth surface or subgingival area to be treated.
• Adjust the power level using the power adjustment knob on the main unit.
• Activate the ultrasonic scaler by pressing the foot switch. The scaler will start vibrating, and water will flow through the tip to cool and irrigate the treatment area.
• Move the tip in a controlled and sweeping motion along the tooth surface, removing plaque, tartar, or stains.
• Maintain a consistent and appropriate power level during the procedure, adjusting as needed for different treatment areas.
• Periodically rinse the treatment area with water to remove debris and improve visibility.
• After completing the scaling procedure, release the foot switch to deactivate the scaler.

Additional Information

Warranty & Service

• Manufacturer/Importer Warranty of 1 Year on all the parts of the product & 5 years Warranty (from the date of invoice) on PCB (Power Circuit Board).
• Physical damage is not cover in any case
• Service and Warranty are handled by the manufacturer/importer directly for this product

• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
