Waldent EndoResQ File Retrieval System Kit

Description

The Waldent EndoResQ File Retrieval System Kit is a meticulously crafted tool designed to facilitate the safe and efficient removal of broken root canal files during endodontic procedures. This system features a push cap at the end of the Extractor handpiece for precise clamping and removal of broken instruments or foreign objects from the root canal. It includes an adjustable Wrench that allows for customization of the needle cannula’s bending angle, ranging from 45 to 90 degrees, ensuring optimal positioning for each clinical scenario. The Extractor handpiece and Wrench are reusable after thorough disinfection, offering cost-effectiveness and sustainability in dental practices. This comprehensive kit includes a high-temperature resistant metal outer box, doubling as a sterilization container. The Path drills, heat-activated and prebendable NiTi rotary files, further enhance versatility and effectiveness in endodontic treatments, making the Waldent EndoResQ File Retrieval System Kit an indispensable tool for precise and reliable file retrieval.

Key Features

• Efficient File Removal: Utilizes a push cap mechanism for precise clamping and extraction of broken root canal files.
• Adjustable Needle Cannula: The cannula can be bent from a factory-set 45 degrees up to 90 degrees, providing flexibility to suit various clinical scenarios.
• Reusable Components: Both the Extractor handpiece and Wrench can be disinfected and reused, ensuring cost-effectiveness and sustainability.
• High-Temperature Resistant Sterilization Box: The metal outer box is made of high-temperature resistant material, doubling as a sterilization container.
• Heat-Activated Path Drills: Includes heat-activated, prebendable NiTi rotary files for enhanced versatility in endodontic treatments.
• Corrosion Resistant: Crafted from materials that resist corrosion, ensuring durability and longevity of the instruments.
• Comprehensive Tool Kit: Provides all necessary tools, including adjustable Wrench, Extractor handpiece, and various drills, for efficient and precise file retrieval in endodontic procedures.

Specifications

TECHNICAL SPECIFICATIONS

• Neddle cannula

• Path Drills

• Flat Drills and Trephine Drills

Total Length of Extractor Handpiece: 12cm

Packaging

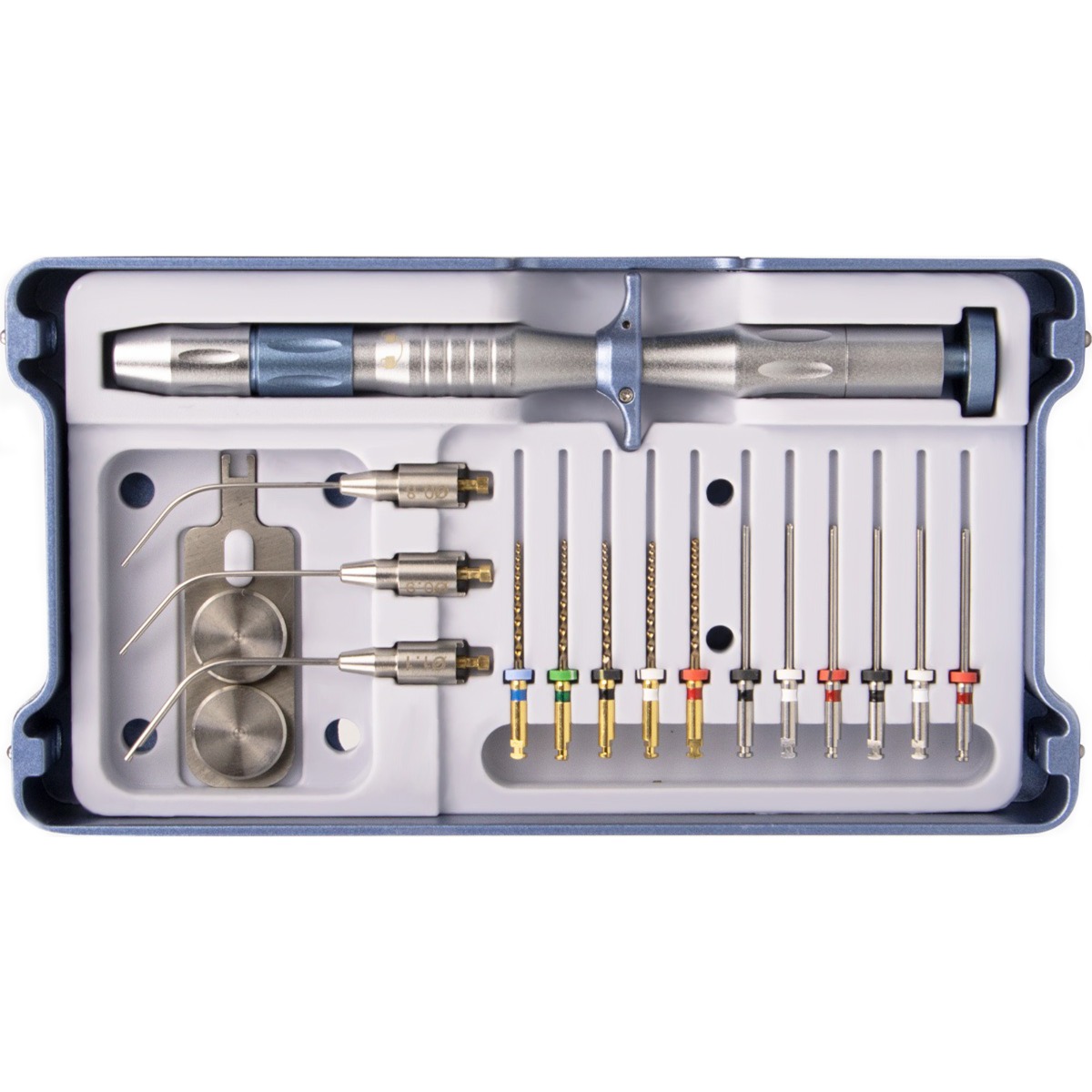

Waldent EndoResQ File Retrieval System Kit includes:

• 1 x Extractor Handpiece
• 3 x Needle Cannula
• 5 x Path Drills
• 3 x Cutting Drills
• 3 x Trephine Drills
• 1 x Wrench
• 1 x Manual
• 1 x Sterilisation Box

Directions for Use

Direction for Use
1.1 Root canal enlargement: It is recommended to use a suitable size Peeso Reamer to expand the root canal passage (recommended to use Gate Drills #03 or #04 at a speed of 800rpm), until it is close to the end of the broken root canal file;
1.2 Irrigating the root canal: irrigate the root canal thoroughly.
1.3 Establishing a straight line access: choose a suitable Path Drill, and it is recommended to clockwise rotate at a speed of 300rpm to remove the dentin in the root canal, so that the coronal curvature can be straightened by moving the shaft body, so as to establish a file that can directly contact the broken root canal aisle;
1.4 Removing the Dentin: Choose a suitable Flat Drill of appropriate size. It is recommended to counterclockwise rotate at a speed of 150rpm and grind at a low speed to flatten the channel to the broken root canal file;
1.5 Rinsing the root canal: rinse the dentin of the root canal, it is recommended to use an ultrasonic activator like Waldent Endo X Ultrasonic Activator to rinse the remaining dentin.
1.6 Sleeving the broken files using Trephine Drills: Choose a Trephine Drills with a suitable size. It is recommended to rotate counterclockwise at a speed of 150rpm, insert the broken file at a low speed, and remove the dentine around the upper end of the broken file at 1-1.5mm, then the broken file might be brought out by the Trephine Drill. If it is not brought out, continue to use the Trephine Drill to remove the dentin until the broken file exposes 2-3mm
1.7 Pulling out the broken files using the needle cannula: Select a needle cannula of appropriate size (Ø0.8, Ø0.9 or Ø1.10), use a wrench to bend the working part of the cannula to required angle, and install the cannula on the Extractor Handpiece. Insert the working part of the cannula into the root canal, press the push cap of the extractor handpiece to clamp the broken file, and pull out it.
1.8 Installing the Cannula on Handpiece:
– Use a wrench to gently pull out the head of inner core of Cannula to expose the head of the inner core.
– Remove the sleeve below the Extractor Handpiece, press the push cap of Extractor Handpiece, put the head of inner core of the cannula into the clamping position of the Extractor Handpiece, and push it to lock;
– Install and lock the sleeve, and lock the elastic nut;
– At this point, if press the push cap of Extractor Handpiece, the inner core can be pushed up and down in the side hole of the extractor, then the installation is successful.

Additional Information

Country of Origin: PRC

Manufacturer:
Shenzhen Rogin Medical Co., Ltd.
Room 3109, Building 6,
Tian’an Cloud Park,
Bantian Street, Longgang District,
Shenzhen, Guangdong 518129,

Packer:
Shenzhen Rogin Medical Co., Ltd.
Room 3109, Building 6,
Tian’an Cloud Park,
Bantian Street, Longgang District,
Shenzhen, Guangdong 518129,

Imported By:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha,
Farrukhnagar, Gurugram, Haryana – 122506, India
Phone: +91 72899 99456

Marketed By:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha,
Farrukhnagar, Gurugram, Haryana – 122506, India
Phone: +91 72899 99456

Warranty & Service

• Manufacturer/Importer warranty of 6 months (Only Extractor Handpiece) as applicable for this product
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer €™s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be
