Oro Endo Micro Camera Set

Description

Oro Endo Micro Camera Set (OM-100) is an advanced endodontic imaging system designed to improve visualization, precision, and treatment outcomes during root canal procedures. Featuring a 2MP high-definition waterproof and anti-fog camera lens, the system delivers crystal-clear imaging with a resolution of 1280 × 720, enabling clinicians to identify canal anatomy with greater accuracy. Its ultra-compact design provides excellent maneuverability and easy access to difficult root canals while remaining compatible with most high-speed and low-speed dental handpieces as well as endodontic motor contra angles. The integrated Sony CMOS image sensor, adjustable three-level LED illumination, and extended depth of field ensure consistent image quality even in challenging clinical environments. Built with durable medical-grade materials and supported by intuitive one-touch controls, the Oro Endo Micro Camera Set enhances diagnostic confidence, procedural efficiency, and clinical precision during endodontic treatments.

Key Features

• 2MP high-definition waterproof and anti-fog camera lens
• Ultra-compact design for improved canal accessibility
• Compatible with dental handpieces and endodontic contra angles
• 1280 × 720 HD imaging for enhanced clinical visualization
• Three-level adjustable LED illumination system
• Sony CMOS image sensor ensures clear image reproduction
• Shock-resistant medical-grade housing for durability
• One-touch operation with intuitive control interface
• High depth of field for improved endodontic visualization
• Wireless foot pedal enables hands-free image capture

Specifications

• Model: OM-100 Endodontic Mini Camera
• Resolution: 1280 × 720 HD
• Camera Sensor: Sony CMOS
• Viewing Angle: 88°
• Depth of Field: 8–30 mm
• Illumination: Three-Level Adjustable LED Lighting
• LED Intensity: 10,000 Lux
• Color Temperature: 6000–6500K Pure White Light
• Lens Type: Waterproof & Anti-Fog
• Compatibility: Dental Handpieces & Endo Motor Contra Angles

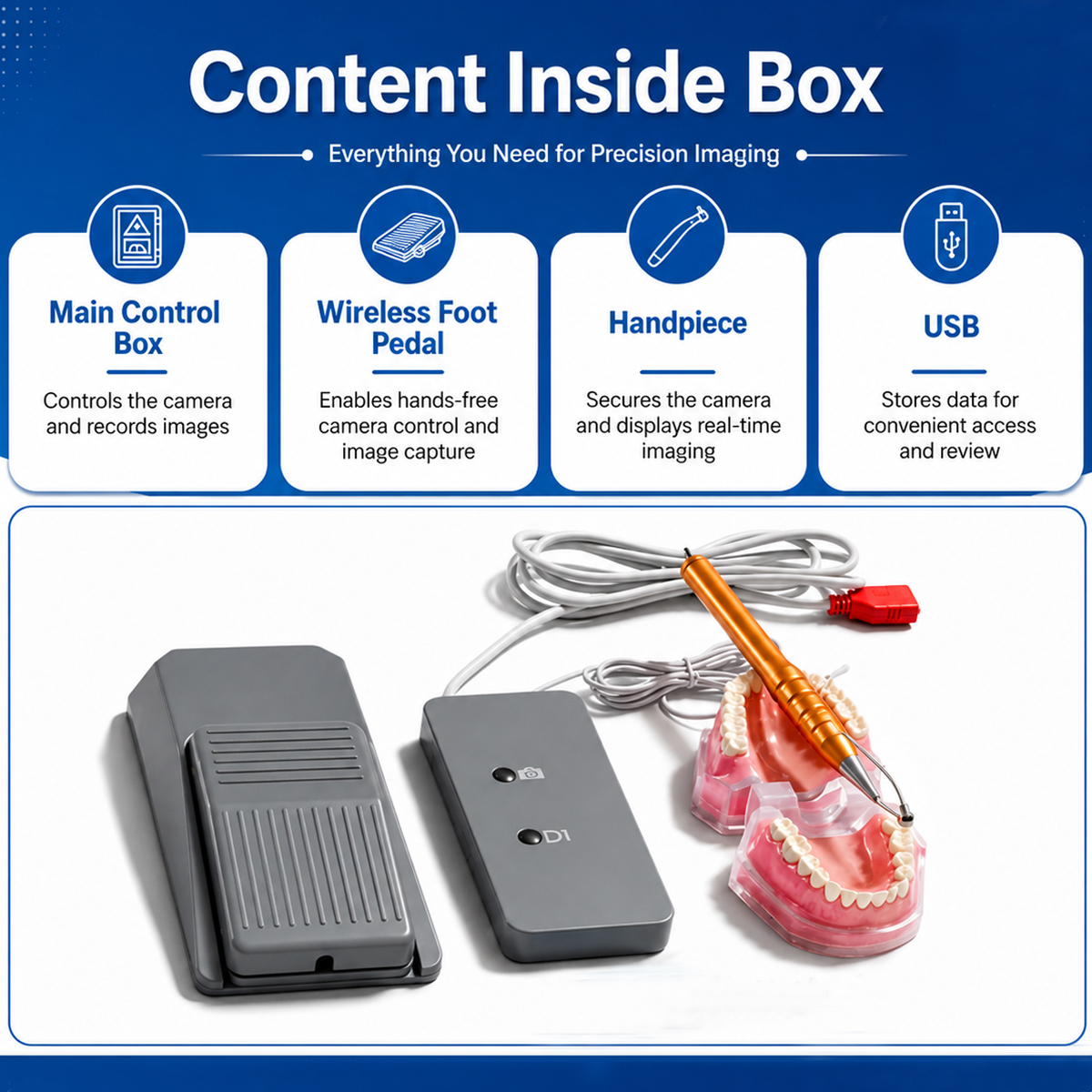

Packaging

Oro Endo Micro Camera Set

• 1 x Main Control Box
• 1 x Wireless Foot Pedal
• 1 x handpiece
• 1 x USB

Directions for Use

Preparation

• Ensure all system components are clean and properly assembled.
• Connect the camera handpiece to the main control unit.
• Insert the USB storage device if image recording is required.

Setup

• Attach the camera to the compatible dental handpiece or endodontic contra angle.
• Power on the control unit and verify image display.
• Adjust LED brightness according to clinical requirements.

Operation

• Position the camera to visualize the treatment area.
• Use the control buttons or wireless foot pedal for image capture.
• Adjust focus and illumination to obtain optimal visualization.
• Monitor real-time imaging throughout the procedure.

Post Use Care

• Disconnect and clean the camera according to manufacturer guidelines.
• Store captured images securely using the USB storage device.
• Store all components in a clean and dry environment.
