NSK iCare Complete Set C2 Type (Y1002787)

Description

NSK iCare Complete Set (C2 Type) is a state-of-the-art handpiece maintenance system that sets a new standard in the industry. Designed with ultimate ease of use and efficiency in mind, this comprehensive set offers a range of features that ensure optimal cleaning and lubrication of high-speed and low-speed handpieces. With the iCare Complete Set, maintenance becomes a breeze. The system comes equipped with a preset solution volume based on handpiece type, eliminating the need for manual adjustments. At the touch of a button, the system delivers precise and thorough lubrication, saving valuable time and reducing the risk of errors. One standout feature of the iCare Complete Set is its chuck cleaning function. This function is specifically designed to completely remove dirt and cutting powder from the chuck, ensuring that it remains pristine and free from contaminants. By maintaining the cleanliness of the chuck, the system promotes optimal performance and extends the lifespan of the handpieces.

The purging select mode of the iCare Complete Set further enhances its capabilities. This mode allows users to choose from various purge lengths, ensuring the complete removal of excess oil or cleaning solution. In addition to its functionality, the iCare Complete Set offers convenience and efficiency in its design. The set includes a large 1-liter solution tank, reducing the frequency of refills and enabling uninterrupted maintenance cycles. The system is also space-efficient, allowing for easy installation in any workspace.

Safety and security are paramount in the iCare Complete Set. The set features an alarm LED that alerts users to various situations, including inadequate solution quantity and an unlocked front door. These alerts ensure that maintenance procedures are conducted safely and securely.

Key Features

• Preset solution volume based on handpiece type for precise and thorough lubrication
• Chuck cleaning function for complete removal of dirt and cutting powder from the chuck
• Purging select mode with adjustable purge lengths for comprehensive maintenance
• Integrated 1-liter solution tank reduces the need for frequent refilling
• Easy and clean refills with the enclosed nozzle
• Alarm LED alerts for inadequate solution quantity and unlocked front door for safe maintenance
• Automatic maintenance for up to four handpieces simultaneously
• Simple setup and space-efficient design for easy installation in any workspace

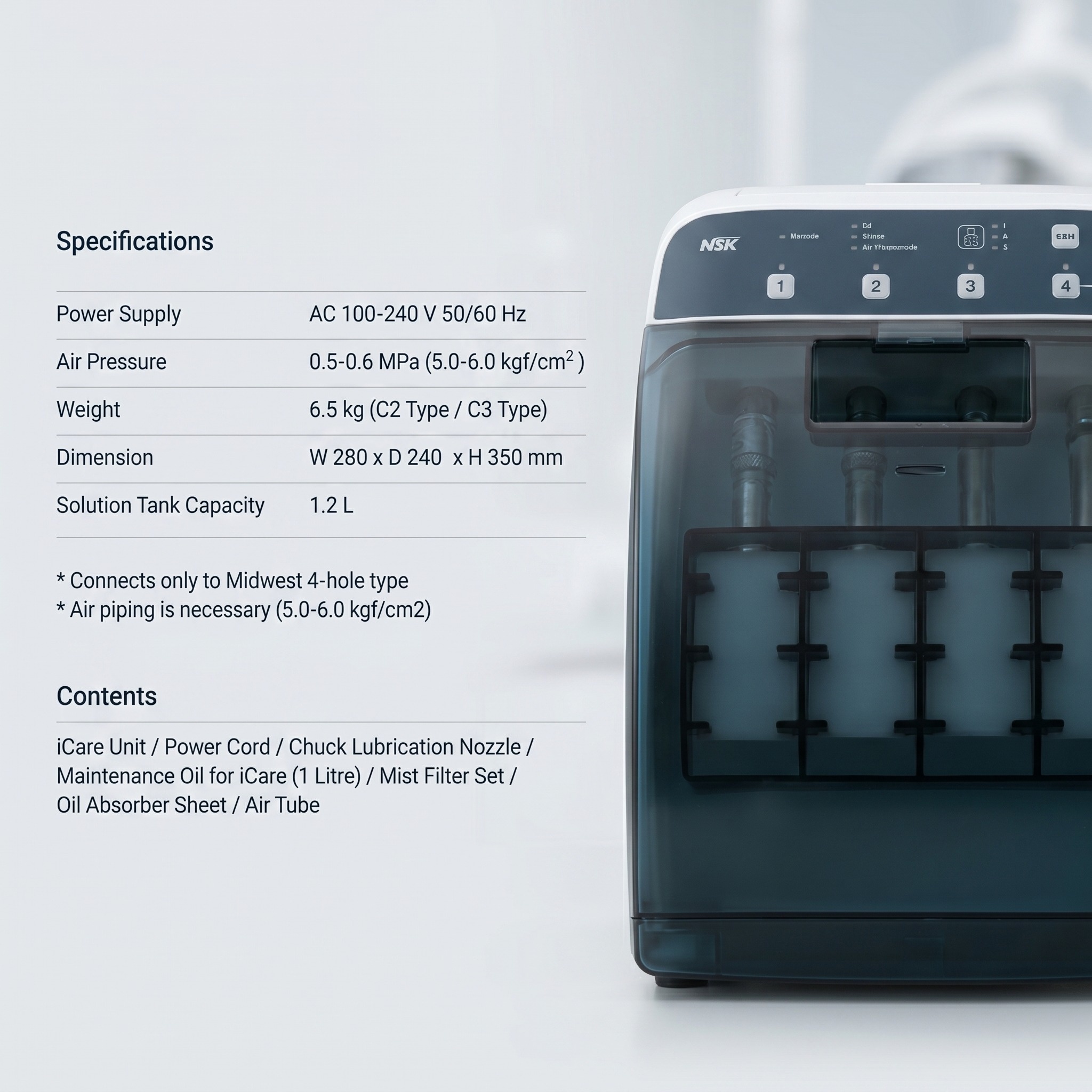

Specifications

• Power Supply: AC 100-240V 50/60Hz
• Air Pressure: 0.5 – 0.6 MPa (5.0 – 6.0 kgf/cm 2)
• Weight: 6.5 kg (C2 type/C3 type)
• Dimension (mm) : W280 x D240 x H350
• Solution Tank Capacity: 1,200 mL
• Connects only to Midwest 4-hole type
• Air piping is necessary (5.0 – 6.0 kgf/cm2)

Packaging

• 1 set
• Icare unot
• Power cord
• Chuck cleaning nozzel
• Maintenance oil for icare(1 liter)
• Mist filter set
• Oil absorber sheet
• Air tube

Directions for Use

• Ensure the iCare Complete Set is connected to an AC power supply within the range of 100-240V, 50/60Hz.
• Connect the system to an appropriate air pressure source of 0.5-0.6 MPa (5.0-6.0 kgf/cm²).
• Install the iCare Complete Set in a suitable location, considering its dimensions of W280 x D240 x H350 mm and space efficiency.
• Fill the solution tank with a maintenance solution of your choice, utilizing the 1-liter capacity.
• Select the appropriate handpiece type (high-speed or low-speed) to preset the proper solution volume.
• Place up to four handpieces in the system for simultaneous automatic maintenance.
• Initiate the maintenance process at the touch of a button, ensuring thorough cleaning and lubrication.
• Use the chuck cleaning function to remove dirt and cutting powder from the chuck of each handpiece.
• Monitor the alarm LED for alerts regarding inadequate solution quantity or an unlocked front door to ensure safe and secure maintenance.
• Periodically clean the iCare Complete Set, including the removable front door, for efficient operation and hygiene maintenance.

Additional Information

Country of Origin: Japan

Manufacturer:
Nakanishi Inc.
700 Shimohinata, Kanuma-shi, Tochigi 322-8666, Japan

Packer:
Nakanishi Inc.
700 Shimohinata, Kanuma-shi, Tochigi 322-8666, Japan

Imported By:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farrukhnagar, Gurugram, Haryana – 122506, India
Phone: +91 72899 99456

Warranty & Service

• Manufacturer/Importer warranty of 1 year as applicable for this product
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer €™s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
