NewDiamond Porcelain Preparation & Repair FG Airotor Bur Kit – Pack of 10 Burs (FG-109)

Description

The NewDiamond FG-109 Porcelain Preparation and Repair Bur Kit is a curated selection of 10 diamond-coated FG (friction grip) burs specifically chosen to cover the complete workflow of porcelain crown preparation and existing porcelain restoration repair. From gross reduction of enamel and dentin during crown prep to precision refinement of margins, occlusal reduction, and final polishing of existing porcelain — every shape and grit needed for a full-arch aesthetic case is organized in one autoclavable stand. The diamond-coated cutting surfaces deliver aggressive, controlled tooth reduction with the smooth finish essential for accurate impression capture and predictable ceramic bonding. FG shanks connect directly to standard high-speed air rotor handpieces, making the kit universally compatible with routine restorative workflows. Ideal for restorative dentists, prosthodontists, and cosmetic practices handling regular crown, veneer, and porcelain repair cases.
Indications:

• FO-28B: Flame-shaped diamond for occlusal reduction and lingual concavity preparation
• TF-21B: Tapered flat-end diamond for axial wall preparation with defined finish line
• TR-13B: Tapered round-end diamond for chamfer margin preparation
• TR-12B: Tapered round-end diamond (alternative size) for axial reduction with chamfer finish
• TR-11B: Tapered round-end diamond for fine chamfer refinement
• WR-12B: Wheel-shaped diamond for lingual concavity reduction of anterior teeth
• SF-11B: Straight fissure or needle-shaped diamond for interproximal separation and refinement
• TF-18B: Tapered flat-end diamond for coarse axial reduction and gross bulk removal
• TF-19B: Tapered flat-end diamond for shoulder margin preparation
• TF-11B: Fine tapered flat-end diamond for finishing axial walls and shoulder refinement

Key Features

• Complete 10-bur set curated for porcelain crown preparation and repair procedures
• Variety of shapes covers gross reduction, margin refinement, occlusal reduction, and finishing
• Diamond-coated cutting surfaces deliver aggressive controlled tooth reduction
• Round-end tapered and torpedo shapes for standard crown preparation geometry
• Wheel-shaped bur for occlusal reduction and porcelain surface preparation
• FG (Friction Grip) shanks compatible with standard high-speed air rotor handpieces
• Autoclavable plastic stand keeps burs organized and protected between cases
• Ideal for restorative dentistry, prosthodontics, and cosmetic porcelain workflows

Specifications

• Product Type: Diamond FG Bur Kit (Porcelain Preparation & Repair)
• Brand: NewDiamond
• Kit Reference: FG-109
• Number of Burs: 10 burs
• Grit Size: Extra Coarse
• Shank Type: FG (Friction Grip)

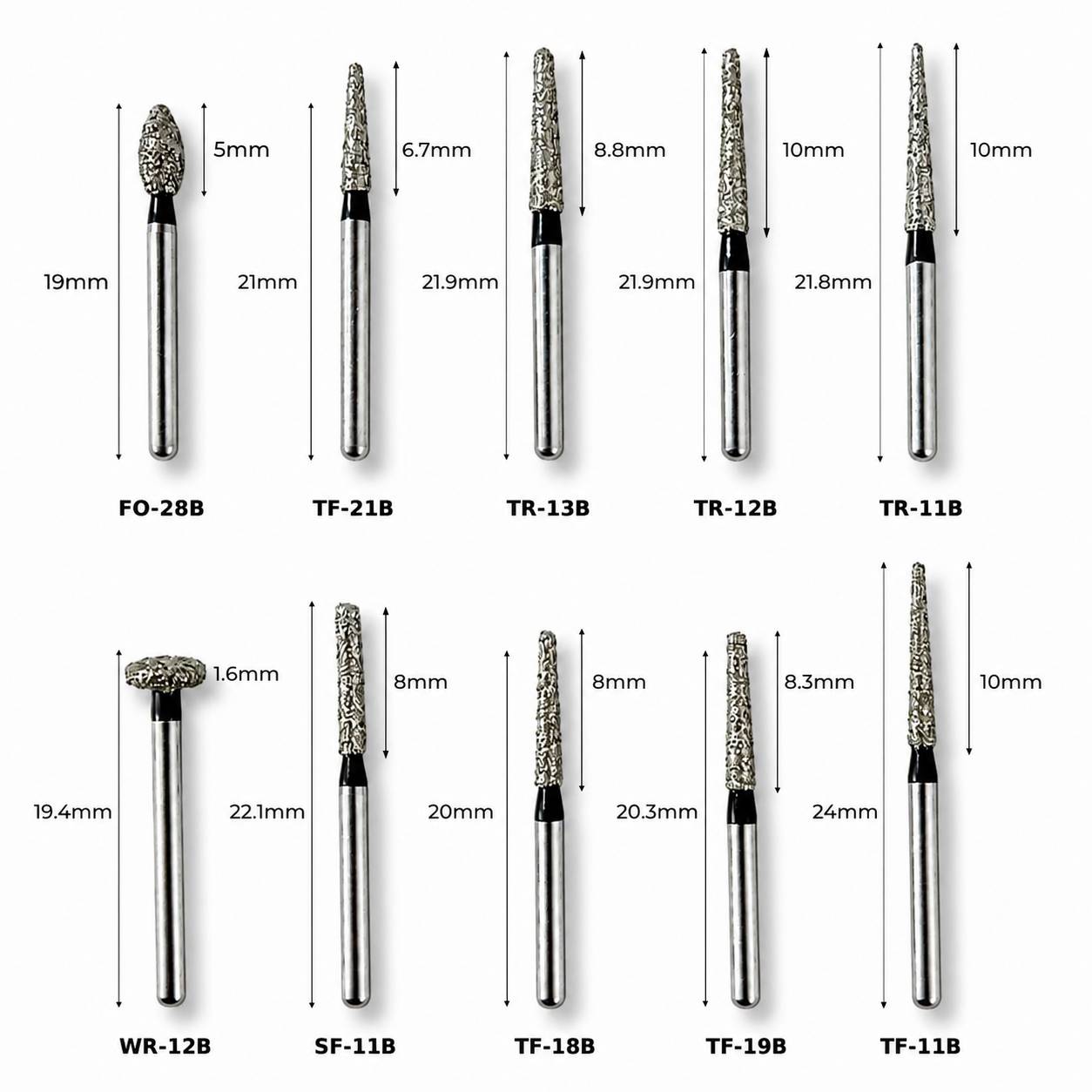

• Bur Size: FO-28B,TF-21B,TR-13B,TR-12B,TR-11B,WR-12B,SF-11B,TF-18B,TF-19B,TF-11B
• Speed: The Maximum Allowable Speed To 400,000/Min
• Handpiece Compatibility: Standard high-speed air rotor handpiece
• Cutting Surface: Diamond-coated
• Applications: Porcelain crown preparation, veneer preparation, existing porcelain restoration repair, margin refinement, occlusal reduction
• Stand: Autoclavable plastic bur stand with 10 organized positions
• Sterilization: Autoclavable complete kit
• Reusability: Reusable with proper cleaning, sterilization, and inspection

Packaging

• 1 x FO-28B Bur
• 1 x TF-21B Bur
• 1 x TR-13B Bur
• 1 x TR-12B Bur
• 1 x TR-11B Bur
• 1 x WR-12B Bur
• 1 x SF-11B Bur
• 1 x TF-18B Bur
• 1 x TF-19B Bur
• 1 x TF-11B Bur

Directions for Use

Pre-Procedure Setup

• Sterilize the complete bur kit via autoclave before clinical use
• Verify each bur is undamaged and the diamond coating is intact
• Achieve adequate local anesthesia and isolate the working area
• Take pre-operative photographs and impressions if planning aesthetic restoration

Bur Selection

• Select the appropriate bur from the stand based on the procedure phase
• Insert the FG shank into the high-speed air rotor handpiece and verify secure engagement
• Test the bur rotation at low pressure before contacting the tooth

Crown Preparation Sequence

• Begin with axial reduction using tapered diamond burs at high speed with copious water spray
• Reduce the tooth to the planned dimensions for the chosen ceramic material (typically 1.5-2.0 mm)
• Refine the occlusal reduction to achieve adequate clearance for the restoration
• Create the marginal geometry (shoulder, chamfer, or feather edge) using appropriate margin burs
• Round all internal line angles to prevent stress concentration in the ceramic

Margin Refinement

• Use fine tapered diamond burs for margin refinement and smoothing
• Achieve a clean, well-defined marginal profile suitable for accurate impression capture
• Verify the preparation meets the requirements of the chosen ceramic material

Porcelain Repair Procedures

• For repair of existing porcelain restorations, use the wheel or flame-shaped burs to remove damaged or discolored porcelain
• Create a beveled preparation to receive the repair composite or new porcelain
• Roughen the porcelain surface to enhance mechanical retention for repair material
• Etch, silanate, and bond the repair material per the chosen bonding protocol

Impression Capture Preparation

• After preparation is complete, refine all margins and surfaces
• Rinse thoroughly to remove any debris
• Retract gingival tissue if needed and take the impression

Post Use Care

• Remove all burs from the stand and rinse thoroughly to remove blood and debris
• Clean each bur with a soft non-metal brush and surgical-grade detergent
• Do not use metal brushes or abrasive scrubbers — they damage the diamond coating
• Rinse with distilled water and inspect each bur for diamond wear or coating loss
• Sterilize the complete kit via autoclave following the standard protocol
• Return all burs to their designated stand positions for storage

Additional Information

Country of Origin: India

Manufacturer:
VASA Denticity Limited
Plot No. 252/90, Khasra No. 252/90,
Lal Dora Village Bamnoli, Kapashera,
Delhi – 110075, West Delhi,
Delhi, India

Packer:
VASA Denticity Limited
Plot No. 252/90, Khasra No. 252/90,
Lal Dora Village Bamnoli, Kapashera,
Delhi – 110075, West Delhi,
Delhi, India

Marketed By:
VASA Denticity Limited
Plot No. 252/90, Khasra No. 252/90,
Lal Dora Village Bamnoli, Kapashera,
Delhi – 110075, West Delhi,
Delhi, India

Warranty & Service

• This product is NON-RETURNABLE/NON-REFUNDABLE. In case of any defective or damaged product, compensation for the same will be provided. Damage or defect in the product need to be ascertained prior to issuing compensation.
