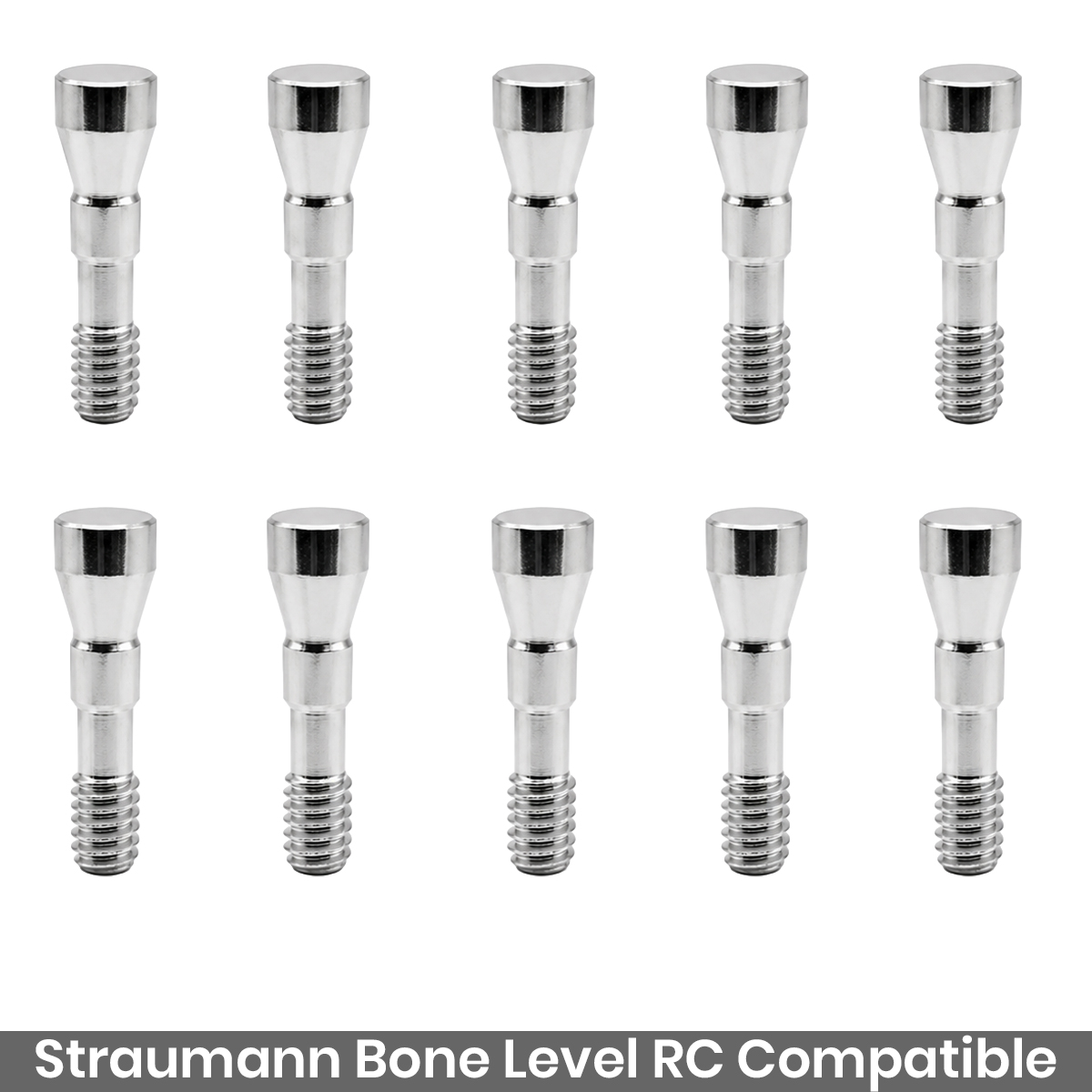

Mediden Straumann Bone Level RC Compatible Titanium Abutment Screw (S-64) (Pack of 10)

Description

Mediden Straumann Bone Level RC Compatible Titanium Abutment Screw (S-64) is a precision machined prosthetic screw designed to securely fasten abutments and restorative components to Straumann Bone Level Regular CrossFit implants. Manufactured from medical grade titanium alloy, it delivers excellent tensile strength, corrosion resistance, and biocompatibility for long term intraoral performance. The screw is engineered to match the Straumann Bone Level RC internal connection geometry, ensuring a tight seal and stable clamping force between the implant and the abutment. Its precise thread profile allows consistent torque transfer and reduces the risk of screw loosening under occlusal load. Suitable for both temporary and definitive restorations, this screw supports single crown, bridge, and full arch implant supported prosthetic workflows. Compatible with the SCS screwdriver interface, it offers a reliable and cost effective solution for clinics and dental laboratories.

Key Features

• Precision machined from medical grade titanium alloy for strength and biocompatibility
• Engineered to match Straumann Bone Level RC internal CrossFit connection geometry
• Optimized thread profile delivers consistent torque transfer and stable clamping force
• Helps minimize screw loosening under repeated occlusal loading conditions
• Compatible with the SCS screwdriver for straightforward clinical handling
• Suitable for both temporary try in procedures and definitive final restorations
• Supports single crown bridge and full arch implant supported prosthetic workflows
• Reliable and cost effective replacement screw for clinics and dental laboratories

Specifications

• Product Code: S-64
• Brand: Mediden
• Material: Titanium alloy
• Standard: ASTM F136 grade
• Compatibility: Straumann Bone Level RC
• Platform Fit: 4.1 and 4.8 mm
• Component Type: Abutment retention screw
• Driver Interface: SCS screwdriver
• Connection: Internal CrossFit
• Recommended Torque: 35 N-cm final
• Use Type: Single use clinical
• Sterilization: Autoclavable before use

Packaging

• 10 x Straumann Bone Level RC Compatible Titanium Abutment Screw

Directions for Use

Preparation

• Inspect the abutment screw for any damage bent threads or contamination before use
• Verify the packaging and product code to confirm correct Straumann Bone Level RC compatibility
• Sterilize the screw through autoclave if required as per clinical protocol

Placement

• Seat the abutment fully onto the Straumann Bone Level RC implant ensuring complete CrossFit engagement
• Insert the S-64 screw through the abutment access channel into the implant thread
• Engage the SCS screwdriver into the screw head carefully
• Hand tighten the screw initially to seat it without cross threading

Final Torque

• Use a calibrated torque wrench to tighten the screw to the recommended torque value
• Apply final torque of 35 N-cm for definitive abutment fixation as per Straumann guidelines
• Wait a few minutes and retighten to compensate for initial screw settling if needed
• Seal the screw access channel with cotton and temporary filling material

Post Use Care

• Replace the screw with a new basal screw at final restoration delivery for definitive cases
• Do not reuse an abutment screw that has been previously torqued to final value
• Clean the driver and store all components in a dry sterile container after use
• Inspect the screw threads regularly during follow up to ensure long term stability

Additional Information

Country of Origin: South Korea

Manufacturer:
Mediden Co., Ltd.
50, Cheomdangwagi-ro 208beon-gil, Buk-gu, Gwangju, Republic of Korea

Packer:
Mediden Co., Ltd.
50, Cheomdangwagi-ro 208beon-gil, Buk-gu, Gwangju, Republic of Korea

Imported By:
Vasa Denticity Ltd.
Khasra No. 15/1, Mustil No. 6, Village Dabodha, Farrukhnagar, Gurugram, Haryana – 122506, India
Phone: +91 72899 99456

Warranty & Service

• Warranty is not applicable for this product.
