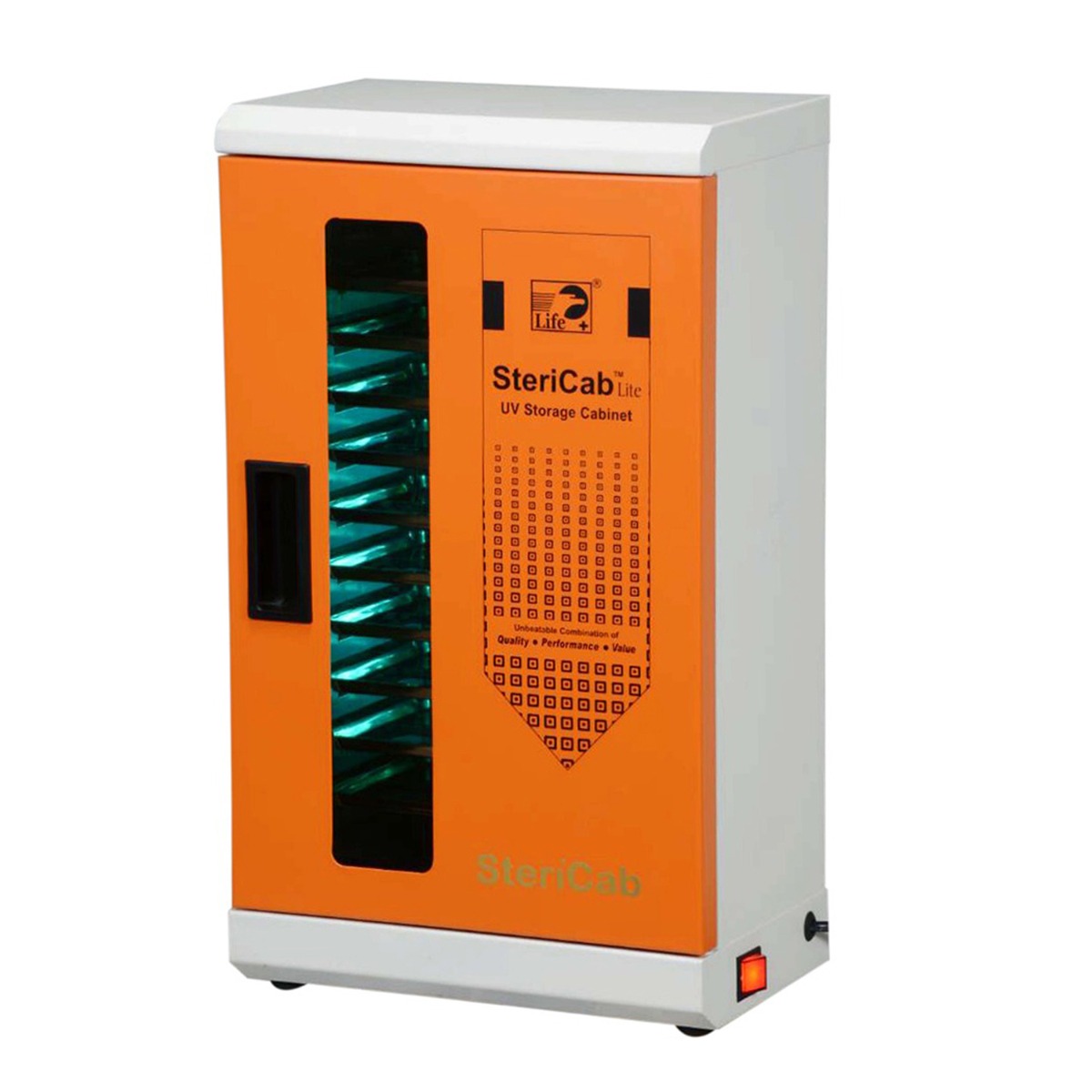

Life Stericab Ultra Violet (UV) Chamber

Description

The “Stericab” is Compact Ultraviolet Storage cabinet that has effective UV sterilization ability to maintain & preserve instruments without any fear of contamination of microorganisms once they are Sterilized or Autoclaved. The “Stericab” is equipped with Germicidal Tube which efficiently emits a large number of ultraviolet rays which has an excellent germicidal effect and thereby prohibiting growth and reproduction of microorganisms. The “Stericab” is commonly used for Medical & dental centers/clinics, Pharmaceutical industry, Food industry, Environmental protection industry, etc.

 Advantages:

Key Features

• The “Stericab” is fabricated in a rust-proof, heavy gauge MS sheet with a fine Epoxy powder-coated finish.
• The effectiveness and UV intensity are achieved by using reflection, therefore, the inner chamber is made with rust proof stainless steel bright mirror finish sheet which reflects the UV rays to pass uniformly through the entire work surface area within the cabinet.
• SteriCab is available in different tray capacity options [10/12/15/20/24/30].
• Specially designed Stainless steel die pressed Mirror finish compartment trays are used in SteriCab.
• A magnetic gasket on the door seals the chamber.
• Micro door switch immediately cuts off the UV source when the door is opened, preventing accidental UV exposure.
• LED lights are fixed on THREE sides of the inner chamber for better visibility when SteriCab’s door is opened.
• SteriCab is equipped with Original, authentic Philips/Osram UV Tubes.

Specifications

 Technical Specification:

Chamber Dimension: L X W X D

• A – 12 Trays – 520 X 300 X 190 mm
• B – 15 Trays – 580 X 300 X 200 mm
• C – 10 Trays – 410X 215 X 275 mm
• B – 20 Trays – 450 X 375 X 275 mm
• Power Consumption: 8 & 16watts UV Tubes.
• Power Supply: 220V 50Hz.
• Tray Size: 235 x 145mm “SS Die Pressed polished compartment Tray”

NON-RETURNABLE PRODUCT

Packaging

• 1 x  Life Stericab Ultra Violet (UV) Chamber

 For Life Steriware Plastic Autoclave Trays : Click here to buy the Plastic Autoclave Trays

Directions for Use

Inspection:

• Before use, visually inspect the chamber for any damage or abnormalities.
• Check the condition of the UV tubes, ensuring they are intact and functioning.

Preparation:

• Place the instruments or items to be sterilized on the stainless steel trays inside the chamber. Ensure proper arrangement to allow UV rays to reach all surfaces.

Closing the Door:

• Close the chamber door securely to activate the UV sterilization process.
• The magnetic gasket on the door should create a tight seal to prevent UV leakage.

Power Supply:

• Connect the Stericab to a suitable power supply (220V, 50Hz).
• Ensure the power switch is in the OFF position before plugging in the device.

Power On:

• Turn on the power switch.
• The UV tubes should start emitting ultraviolet rays for sterilization.

Sterilization Time:

• Follow the recommended sterilization time based on the type and quantity of instruments. Refer to the product manual or guidelines for specific recommendations.

Monitoring:

• Monitor the sterilization process. Some models may have indicators or lights to signify that the UV lamps are operational.

Opening the Door:

• After the sterilization cycle is complete, turn off the power switch.
• Allow a few moments for the UV lamps to power down completely.
• Open the chamber door slowly and cautiously.

Safety Precautions:

• Be cautious when handling sterilized items, as they may be hot.
• Avoid direct exposure to UV rays. The micro door switch should have cut off the UV source when the door was opened, but exercise caution.

Cleaning:

• Regularly clean the chamber and trays to maintain hygiene.

Storage:

• Store sterilized items appropriately, following standard storage procedures.

Additional Information

Country of Origin: India

Manufacturer:
Life Steriware
77A/18, Dilshad Garden Industrial Area,
Delhi – 110095, India
Phone: +91 72899 99456

Packer:
Life Steriware
77A/18, Dilshad Garden Industrial Area,
Delhi – 110095, India
Phone: +91 72899 99456

Warranty & Service

• Manufacturer/Importer warranty of 6 months as applicable for this product.
• (NO WARRANTY on UV Light, Glass or other internal electrical parts)
• Service and Warranty are handled by the manufacturer/importer directly for this product
• Dentalkart will not be liable to replace the Products and the liability to replace any such Product is that of the Manufacturer/Importer
• Dentalkart and the Buyer acknowledge that the Products purchased/used are a subject matter of original Manufacturer/Importer’s warranties only
• Any or all claims in relation to returns and replacement shall be made to the concerned Manufacturer/Importer only and Dentalkart may assist the customer in registering a request to get the Product replaced or serviced.
• The Buyer acknowledges that the Products once sold will not be exchanged or taken back unless the seal of the package or the Product is intact or not altered in any manner or is not tampered as the case may be.
