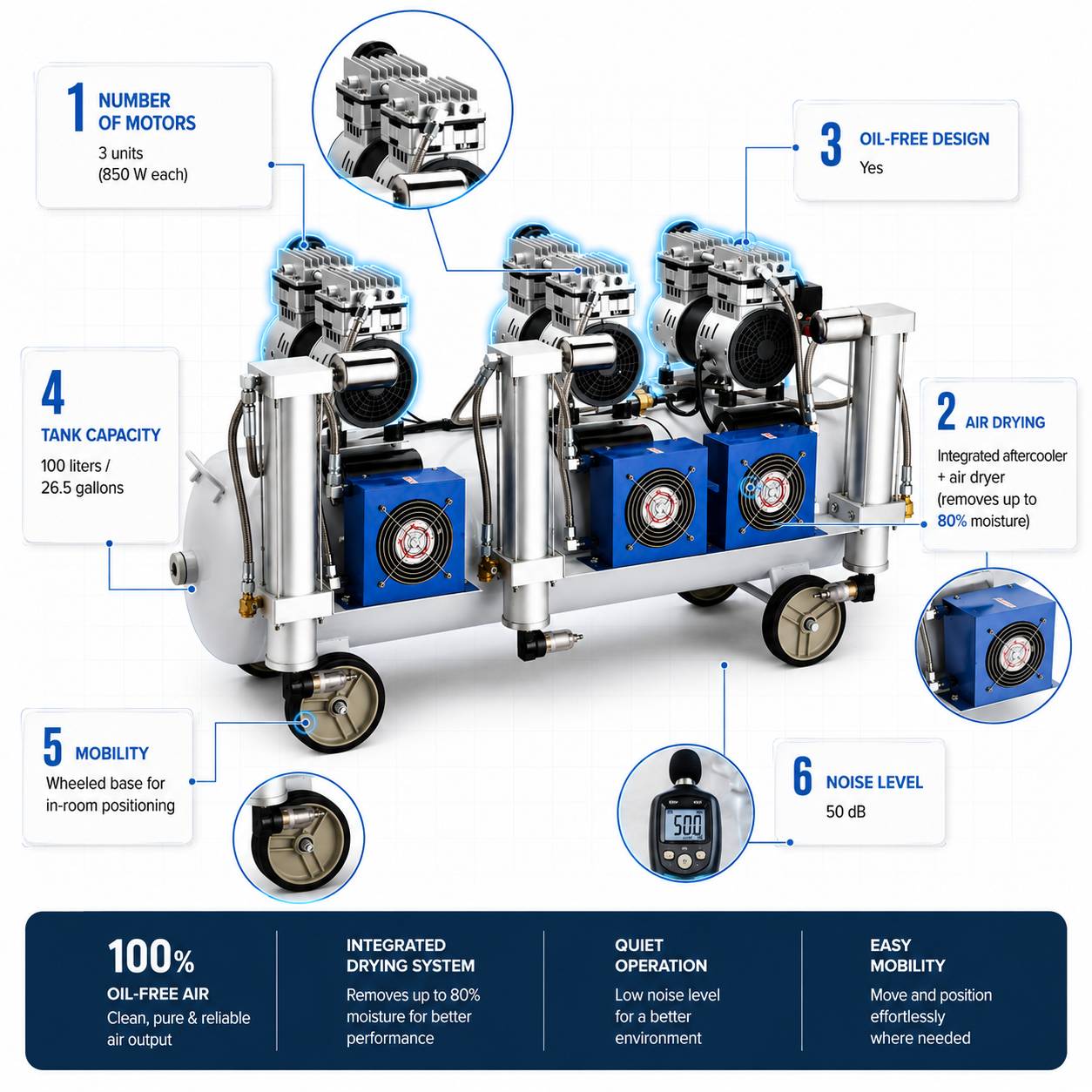

Labodent Triple Head Dental Air Compressor 3.3 HP (SD-210/8GL)

Description

The Labodent Triple Head Dental Air Compressor (SD-210/8GL) is an ultra-quiet, oil-free compressed air solution engineered for dental clinics, laboratories, and CAD/CAM milling environments where clean, dry, reliable compressed air is non-negotiable. Three independent 850 W motor units share the workload to deliver consistent performance at remarkably low noise levels of just 50 dB — among the quietest in the industry, comparable to a soft conversation. The integrated air dryer and aftercooler system removes up to 80% of water vapor from the compressed air, protecting sensitive milling machines, CAD/CAM equipment, and precision instrumentation from moisture damage. With a 100-liter (26.5 gallon) tank, 8 bar maximum pressure, and 495 L/min free air delivery, the SD-210/8GL has the output to drive multi-chair clinics or dedicated milling rooms simultaneously. Oil-free design ensures clean air without contamination risk.

Key Features

• Ultra-quiet operation at just 50 dB — among the quietest dental compressors in the industry
• Oil-free design ensures clean compressed air without contamination risk to clinical or lab workflows
• Three independent 850 W motors share workload for consistent performance and reduced wear
• Integrated air dryer removes up to 80% of water vapor from compressed air
• Aftercooler heat exchanger condenses water vapor before passing air through the dryer
• 100-liter tank capacity supports multi-chair clinics and milling room workflows
• Maximum working pressure of 8 bar (115 psi) with 495 L/min free air delivery
• Specifically engineered for dental, lab, milling machine, and CAD/CAM applications

Specifications

• Product Type: Triple Head Oil-Free Air Compressor with Air Dryer
• Brand: Labodent
• Model Code: SD-210/8GL
• Number of Motors: 3 units (850 W each)
• Total Motor Power: 2550 W (3 × 850 W)
• Input Power: 3.3 HP
• Voltage: 220V / 110V Single Phase
• Tank Capacity: 100 liters / 26.5 gallons
• Noise Level: 50 dB
• Maximum Working Pressure: 8 bar / 115 psi
• Free Air Delivery (F.A.D): 495 L/min / 16.6 CFM
• Air Flow at 5 bar (72 psi): 247 L/min / 8.3 CFM
• Air Drying: Integrated aftercooler + air dryer (removes up to 80% moisture)
• Oil-Free Design: Yes
• Packing Dimensions: 1200 × 420 × 720 mm
• Gross Weight: 80 kg
• Mobility: Wheeled base for in-room positioning
• Applications: Dental clinics, dental labs, milling machines, CAD/CAM, medical, biotech, laser, 3D printing

Packaging

• 1 x Air Compressor

Directions for Use

Installation Setup

• Position the compressor in a well-ventilated room with adequate clearance around all sides for airflow
• Ensure the supply voltage matches the compressor’s electrical specification (110V or 220V)
• Verify the electrical circuit has adequate current capacity for the rated current draw
• Connect the compressor outlet to the clinic or lab air supply line using rated tubing
• Inspect the air dryer reservoir and drain valves before first use

Initial Startup

• Power on the compressor using the main switch
• Allow the tank to fill to the maximum working pressure of 8 bar (115 psi)
• Verify the aftercooler and air dryer activate as the system reaches working pressure
• Check for any air leaks at fittings, valves, or tank seals
• Confirm the noise level and motor performance match expected specifications

Routine Operation

• The compressor auto-cycles between the cut-in and cut-out pressure as air is consumed
• The three motors share the load — quieter and more reliable than a single-motor design
• Compressed air passes through the aftercooler and then the air dryer before reaching the outlet
• Up to 80% of water vapor is removed, protecting downstream tools and equipment

Daily Maintenance

• Drain accumulated condensate from the tank drain valve at the end of each working day
• Check the air dryer drain to clear collected moisture
• Listen for unusual noises that might indicate motor or valve issues
• Verify the working pressure gauge readings remain within the operating range

Periodic Maintenance

• Inspect and clean the air intake filters as per the manufacturer’s schedule
• Check the safety release valve operation periodically
• Inspect electrical connections, motor housings, and tank for corrosion or damage
• Schedule professional servicing as recommended in the user manual
• Replace any worn components promptly to maintain compressor performance

Shutdown

• Power off the compressor using the main switch
• Drain the tank if the compressor will be idle for an extended period
• Disconnect from the electrical supply for service or relocation
